Home /Products/Inductive Sensors/Inductive Sensor 3 Wires DC NPN NO Distance Sn 8mm 10-35 Vdc PVDF Material IP67 Waterproof

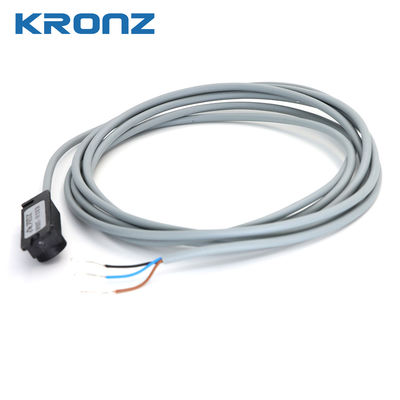

Inductive Sensor 3 Wires DC NPN NO Distance Sn 8mm 10-35 Vdc PVDF Material IP67 Waterproof

1
MOQ
Negotiable
Price
Inductive Sensor 3 Wires DC NPN NO Distance Sn 8mm 10-35 Vdc PVDF Material IP67 Waterproof
Features Gallery Product Description Request A Quote
Features
Specifications
Permitted Residual Ripple: Max.10%
Flush Mounting: No
Voltage Drop Ud: Max. ≤ 3.5 V
Output Current Max. Le: Max.250mA
Housing Material: PVDF
Temperature Drift: <15 %
Operating Distance Sn: 8 Mm
Degree Of Protection: (IEC 529) IP 67
Highlight:

PVDF Material Inductive Sensor

,

35 Vdc Inductive Sensor

,

IP67 Waterproof Inductive Sensor
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: VR-20-S-B-D8
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description
Inductive Sensor 3 Wires DC NPN NO Distance Sn 8mm 10-35 Vdc PVDF Material IP67 Waterproof
Key Specifications
Attribute Value
Permitted residual ripple Max.10%
Flush mounting No
Voltage drop Ud Max. ≤ 3.5 V
Output current max. le Max.250mA
Housing material PVDF
Temperature drift <15 %
Operating distance Sn 8 Mm
Degree of protection (IEC 529) IP 67
Product Overview
Our high-performance inductive proximity sensor features an 8mm sensing range and operates on 10-35V DC, making it ideal for industrial automation applications. The rugged PVDF housing and IP67 protection ensure reliable operation in demanding environments.
Key Features
  • 3-wire DC NPN normally open configuration
  • 8mm non-flush mounting sensing distance
  • Wide operating voltage range (10-35V DC)
  • Built-in protective circuitry for enhanced safety
  • Durable 2m PVC cable (3x0.14mm² cross-section)
  • PVDF housing material for chemical resistance
  • IP67 protection against dust and water ingress
  • Max operating frequency of 500Hz
Inductive Sensor 3 Wires DC NPN NO Distance Sn 8mm 10-35 Vdc PVDF Material IP67 Waterproof 0 Inductive Sensor 3 Wires DC NPN NO Distance Sn 8mm 10-35 Vdc PVDF Material IP67 Waterproof 1
Technical Specifications
Item No.
VR-20-S-B-D8
Output
NPN normally open
Operating distance Sn
8 mm
Electrical version
3 wires DC
No load current Io
typ. 15mA
Frequency of operating cycles
max. 500 Hz
Inductive Sensor 3 Wires DC NPN NO Distance Sn 8mm 10-35 Vdc PVDF Material IP67 Waterproof 2
Industrial Applications
This versatile inductive sensor is designed for precision detection in various industrial environments including:
  • Conveyor systems and material handling
  • Packaging machinery and automation
  • Robotics and assembly lines
  • Machine tool positioning
  • Process control systems
With CE certification and reliable performance, this sensor meets the demands of modern industrial automation.
Inductive Sensor 3 Wires DC NPN NO Distance Sn 8mm 10-35 Vdc PVDF Material IP67 Waterproof 3 Inductive Sensor 3 Wires DC NPN NO Distance Sn 8mm 10-35 Vdc PVDF Material IP67 Waterproof 4
Support & Services
Our technical support team provides comprehensive assistance for installation, operation, and maintenance. We offer detailed product documentation and online resources to ensure optimal performance of your inductive sensors.
Packaging & Shipping
Each sensor is securely packaged in protective foam casing to prevent damage during transit. We ship worldwide through trusted carriers with tracking information provided for all orders.
Inductive Sensor 3 Wires DC NPN NO Distance Sn 8mm 10-35 Vdc PVDF Material IP67 Waterproof 5 Inductive Sensor 3 Wires DC NPN NO Distance Sn 8mm 10-35 Vdc PVDF Material IP67 Waterproof 6
