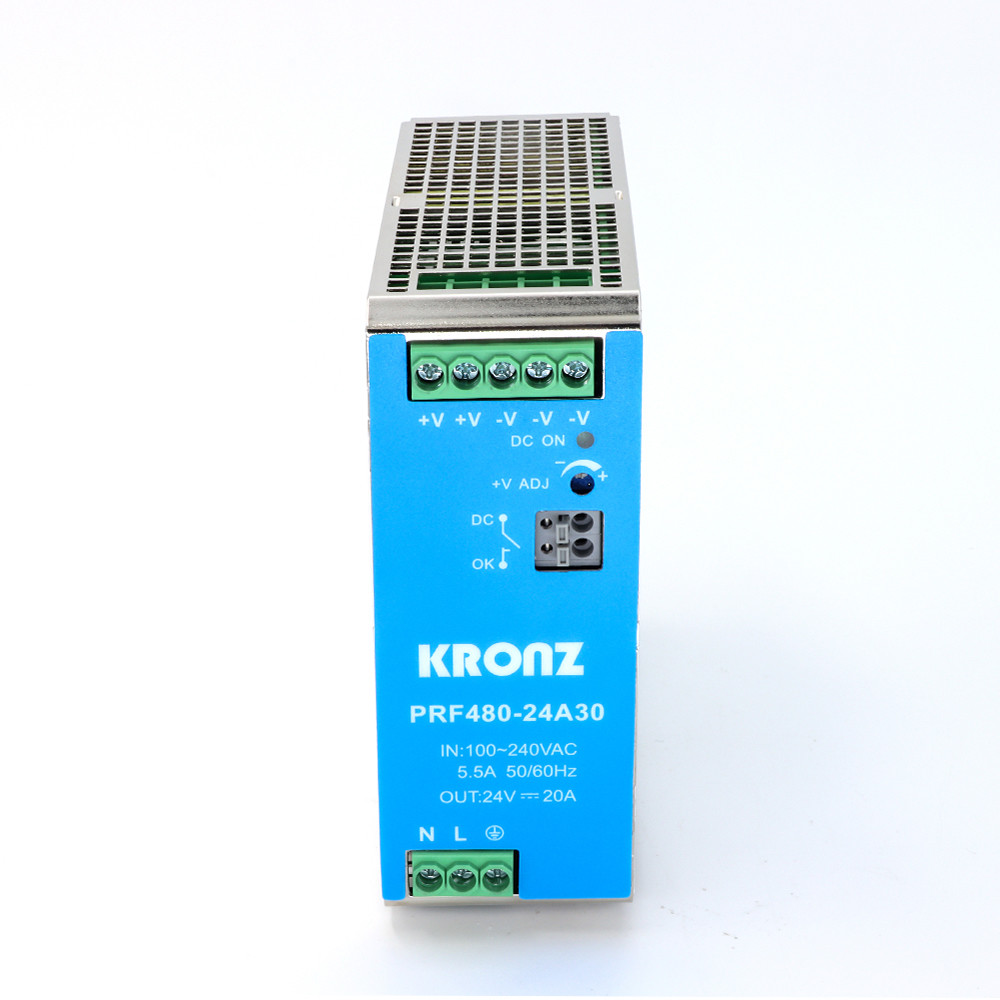

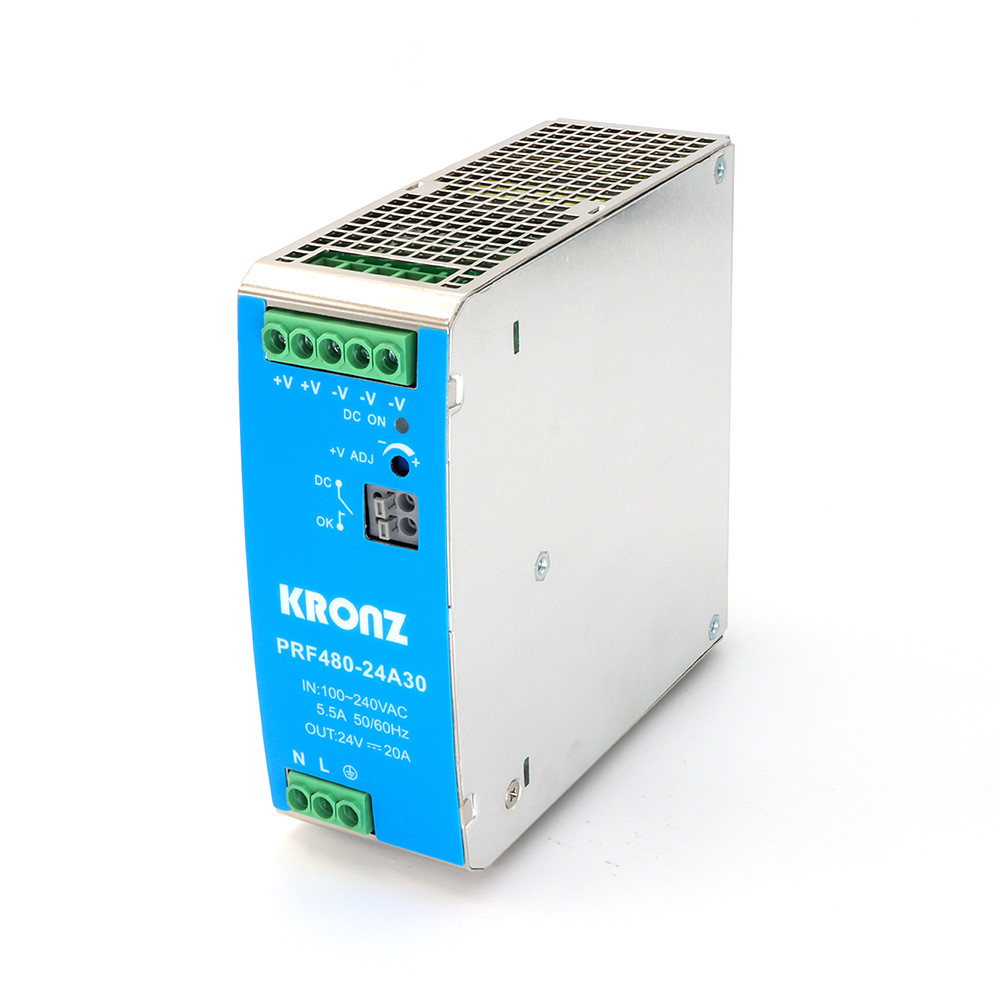

DIN Rail Mounting Industrial Power Supply For PLC AC/DC 480W

5 pieces
MOQ
Negotiable
Price
DIN Rail Mounting Industrial Power Supply For PLC AC/DC 480W
Features Gallery Product Description Request A Quote
Features
Specifications
Features: Accept AC/DC
Product Name: AC/DC 480W DIN-Rail Power Supply
Application: Industrial Automation
Mounting Type: DIN-Rail
Output Voltage: 48-55V
Max. Capacitive Load: 2700μF
Output Power: 480W
Leakage Current: 240VAC
Cooling Method: Free Air Convection
Highlight:

DIN Rail Industrial Power Supply 480W

,

Industrial Power Supply 480W

,

PLC Industrial Power Supply
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: PRF480-48A30
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Paper box packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000 pieces per month
Product Description
DIN Rail Mounting Industrial Power Supply For PLC AC/DC 480W
Product Overview

This industrial power supply provides a cost-effective, standard rail-mounted solution for industrial automation applications. With 480W output power and 48V/10A capacity, it delivers high stability and anti-interference performance for industrial control equipment in harsh environments.

Key Features
  • Universal input voltage: 85-264VAC/120-370VDC
  • Accepts both AC and DC input (dual-use terminal)
  • Wide operating temperature range: -30℃ to +70℃
  • High efficiency up to 94% with active PFC (PF > 0.95)
  • 3000VAC high isolation withstand voltage
  • Comprehensive protection: short circuit, over-current, over-voltage, over-temperature
  • Compact design (48mm width) with DIN-Rail mounting (TS-35/7.5/15)
  • Low ripple noise and DC OK function
Technical Specifications
Model Information
Model No. Output Power (W) Nominal Output (Vo/lo) Voltage Range (V) Efficiency (%) Max. Capacitive Load (μF)
PRF480-48 A30 480 48V/10A 48-55 94 2700
Input Specifications
Item Operating Conditions Min. Typ. Max. Unit
Input Voltage Range AC input 85 --- 264 VAC
DC input 120 --- 370 VDC
Input Voltage Frequency 47 --- 63 Hz
Leakage Current 240VAC <0.8mA
Output Specifications
Item Operating Conditions Min. Typ. Max. Unit
Output Voltage Accuracy Full load range --- ±1.0 --- %
Ripple & Noise 20MHz bandwidth (peak-peak value) --- --- 120 mV
Short Circuit Protection Hiccup mode, constant current works 1s, turn off 10s, continuous, self-recovery
Physical Characteristics
Item Specification
Dimensions 131.50 x 48.00 x 125.00 mm
Weight 980g (Typ.)
Cooling Method Free air convection
Case Material Metal (AL1100, SPCC) and Plastic (PC940)
Standards Compliance
  • Safety standards: IEC/EN
  • EMI: CISPR32/EN55032 CLASS B
  • Harmonic current: IEC/EN 61000-3-2 CLASS A and CLASS D
  • MTBF: >300,000 hours @25℃
Note: The "tip and barrel method" is used for ripple and noise test, output parallel 47uF electrolytic capacitor and 0.1uF ceramic capacitor.
