Pre Assembled M8 Male Connector 3 Pin With Cable Straight A Code PVC
  • Name
  • Name

Pre Assembled M8 Male Connector 3 Pin With Cable Straight A Code PVC

Brand Name: KRONZ
Model Number: M0803M-2/POOR
MOQ: 50 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Type:
Contact
Product Name:
M8 Pre-Assembled Cable Connector
Standard:
IEC 61076-2-104
Contact Nut Material:
Brass, Nickle-plated
Contact Surface Material:
Brass, Gold-plated
Contact Carrier Material:
PA, Black
Housing Material:
TPU, Black
Seal Material:
FPM/FKM
Supply Ability:
100000 pieces per month
Highlight:

M8 Male Connector 3 Pin

,

Pre Assembled M8 Male Connector

,

A Code M8 Male Connector

Product Description

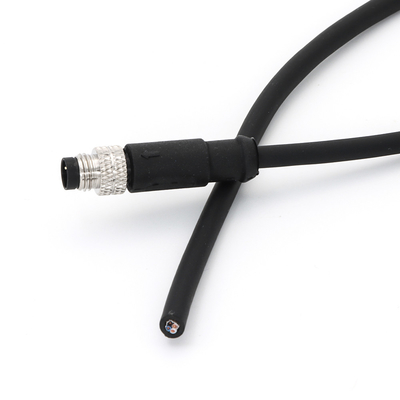

Pre Assembled M8 Male Connector 3 Pin With Cable Straight A Code PVC
Product Overview

M8 Pre-assembled Connector with Cable - Straight Male 3 Pin A Code PVC. These compact connectors are ideal for industrial automation systems, providing reliable connections for sensors and actuators in space-constrained machinery.

Pre Assembled M8 Male Connector 3 Pin With Cable Straight A Code PVC 0
Technical Specifications
Attribute Value
Type Contact
Standard IEC 61076-2-104
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67

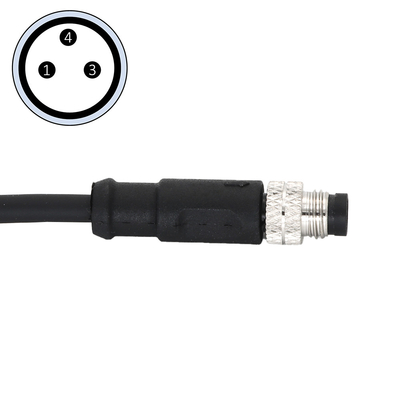

Pin Configuration & Cable Details
Pin assignment Wire color Coding Rated current Voltage Wire gauge Cable outlet Length Model No.
Pre Assembled M8 Male Connector 3 Pin With Cable Straight A Code PVC 1 1=BN 3=BU 4=BK A 3A 60V 3x0.25 (3x24AWG) PVC, black Straight 2M M0803M-2/POOR
              5M M0803M-5/POOR
              10M M0803M-10/POOR
