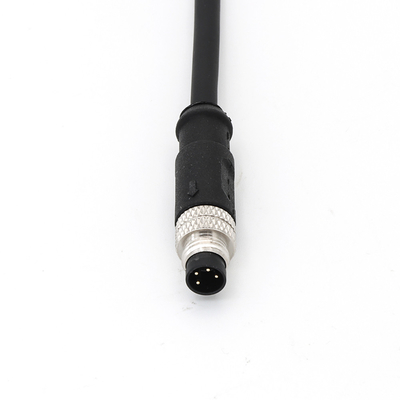

A Code M8 Connectors With Pre Assembled 2 M Cable Straight Male 6 Pin A Code 30V
  • Name
  • Name

A Code M8 Connectors With Pre Assembled 2 M Cable Straight Male 6 Pin A Code 30V

Brand Name: KRONZ
Model Number: M0806M-2/P00R
MOQ: 50 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Type:
Contactor
Description:
M8 Cable Connector
Coding:
A
Wire Gauge:
6×0.14 (6×26AWG) PVC, Black
Seal Material:
FPM/FKM
Contact Resistance:
≤ 5mΩ
Ambient Temperature:
-25~+85℃
Cable Outlet:
Straight
Supply Ability:
100000 pieces per month
Highlight:

A Code M8 Connectors

,

Pre Assembled Cable M8 Connectors

,

6 Pin M8 Male Connectors

Product Description
M8 Connectors with Pre-assembled 2 M Cable Straight Male 6 Pin A Code 30V
Product Attributes
Attribute Value
Type Contactor
Description M8 Cable Connector
Coding A
Wire Gauge 6×0.14 (6×26AWG) PVC, black
Seal material FPM/FKM
Contact resistance ≤ 5mΩ
Ambient temperature -25~+85℃
Cable Outlet Straight
Product Description

M8 connectors with pre-assembled 2 meter cable provide reliable connections for industrial applications. These straight male 6-pin A code connectors are rated for 30V operation.

A Code M8 Connectors With Pre Assembled 2 M Cable Straight Male 6 Pin A Code 30V 0
Technical Specifications
Standard: IEC 61076-2-104
Contact nut material: Brass, nickel-plated
Contact surface material: Brass, gold-plated
Contact carrier material: PA, black
Housing material: TPU, black
Seal material: FPM/FKM
Insulation resistance: ≥100MΩ
Contact resistance: ≤5mΩ
Pollution degree: 3
Ambient temperature: -25~+85℃
Mating cycles: >100
Degree of protection: IP67

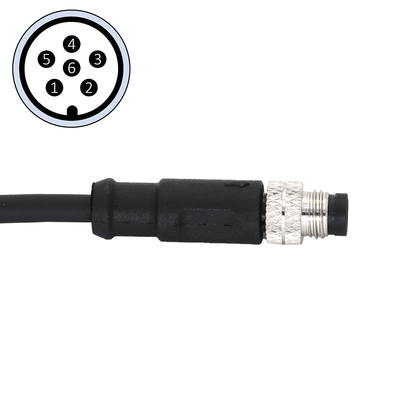

Pin Configuration
Pin assignment Wire color Coding Rated current Voltage Wire gauge Cable outlet Length Model No.
A Code M8 Connectors With Pre Assembled 2 M Cable Straight Male 6 Pin A Code 30V 1 1=BN
2=WH
3=BU
4=BK
5=GY
6=PK		 A 2A 30V 6×0.14
(6×26AWG)
PVC, black		 Straight 2M
5M
10M		 M0806M-2/POOR
M0806M-5/POOR
M0806M-10/POOR
Applications

These M8 connectors are suitable for various industrial applications including:

  • Industrial automation
  • Robotics
  • Transportation systems (trains, buses, automotive)
  • Food and beverage industry
  • Renewable energy systems (wind turbines, solar panels)
  • Other environments requiring rugged, reliable connections
