IEC 61076-2-104 M8 Connector With Molded Cable Straight Male 4 Pin A Code PVC
  • Name
  • Name

IEC 61076-2-104 M8 Connector With Molded Cable Straight Male 4 Pin A Code PVC

Brand Name: KRONZ
Model Number: M0804M-2/POOR
MOQ: 50 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Type:
Contact
Product Name:
M8 Pre-Assembled Cable Connector
Contact Nut Material:
Brass, Nickle-plated
Contact Carrier Material:
PA, Black
Seal Material:
FPM/FKM
Contact Resistance:
≤ 5mΩ
Ambient Temperature:
-25~+85℃
Endurance(shell):
>100 Cycles
Supply Ability:
100000 pieces per month
Highlight:

IEC 61076-2-104 M8 Connector

,

Male 4 Pin M8 Connector

,

Molded Cable M8 Male Connector

Product Description
IEC 61076-2-104 M8 Connector With Molded Cable Straight Male 4 Pin A Code PVC
Product Overview

M8 connectors are designed for transportation systems, providing reliable control and communication connections in harsh industrial environments.

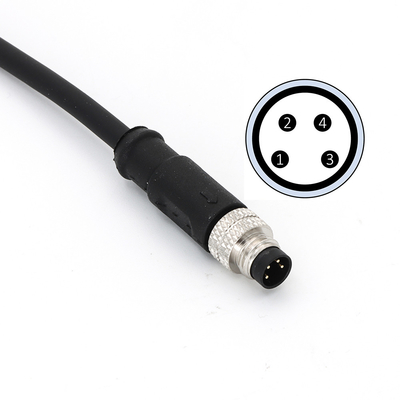

IEC 61076-2-104 M8 Connector With Molded Cable Straight Male 4 Pin A Code PVC 0
Key Features
  • Rugged design for harsh transportation environments
  • Molded cable for durability and strain relief
  • Straight male connector with 4-pin A coding
  • PVC cable jacket for flexibility and protection
Technical Specifications
Attribute Value
Standard IEC 61076-2-104
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67
Pin Configuration

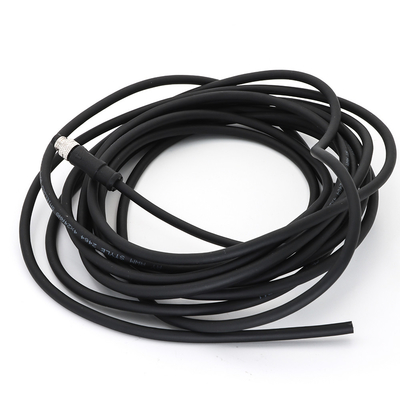

IEC 61076-2-104 M8 Connector With Molded Cable Straight Male 4 Pin A Code PVC 1
Pin assignment Wire color Coding Rated current Voltage Wire gauge Cable outlet Length Model No.
1=BN 2=WH 3=BU 4=BK 1=BN 2=WH 3=BU 4=BK A 3A 60V 4x0.25 (4x24AWG) PVC, black Straight 2M M0804M-2/POOR
              5M M0804M-5/POOR
              10M M0804M-10/POOR
