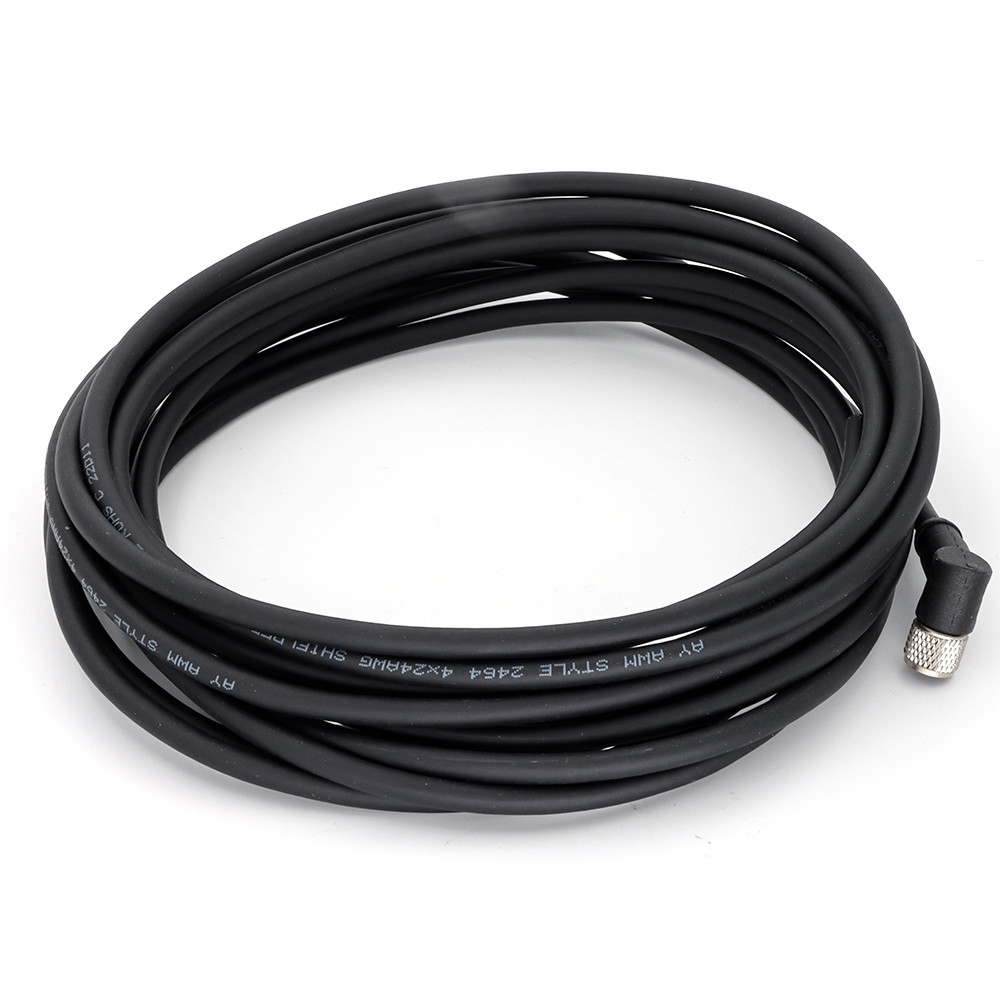

Angled M8 Circular Connector Female 4 Pin
  • Name
  • Name

Angled M8 Circular Connector Female 4 Pin

Brand Name: KRONZ
Model Number: M0804FA-2/POOR
MOQ: 50 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union,
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Type:
Cable Connector
Product Name:
M8 Connector 4 Pin
Standard:
IEC 61076-2-104
Contact Surface Material:
Brass, Gold-plated
Housing Material:
TPU, Black
Insulation Resistance:
≥ 100MΩ
Pollution Degree:
3
Ambient Temperature:
-25~+85℃
Supply Ability:
100000 pieces per month
Highlight:

Angled M8 Circular Connector

,

Female M8 Circular Connector

,

M8 Circular Connector 4 Pin

Product Description

M8 Circular Connector Angled Female 4 Pin A Code PVC Molded Cable



Product Description

M8 connector installation: ensure that the connectors are compatible with the devices and cables being used. Align the connectors properly before mating to avoid damaging the pins or contacts.Tighten the threaded locking mechanism securely to ensure a reliable connection and maintain the IP rating.

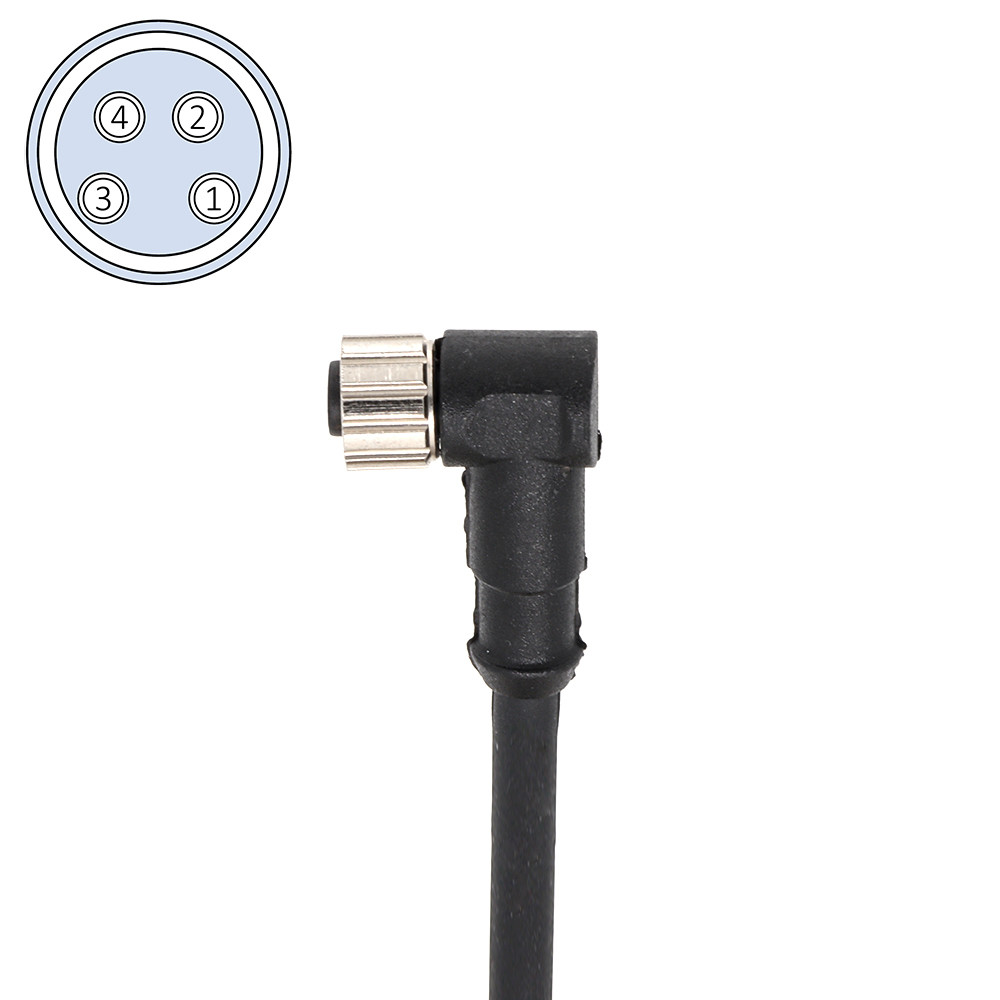

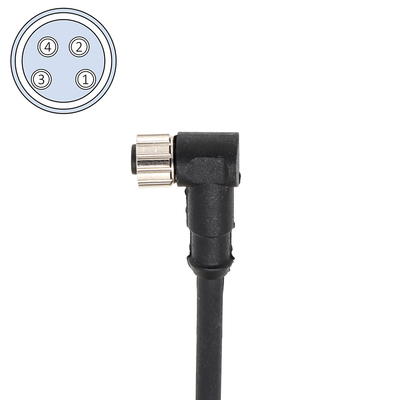

Angled M8 Circular Connector Female 4 Pin



Technical Data

Standard IEC 61076-2-104
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67



Pin assignment Wire color Coding Rated current Voltage Wire gauge Cable outlet Length Model No.
Angled M8 Circular Connector Female 4 Pin  1=BN 2=WH 3=BU 4=BK A 3A 60V 4x0.25 (4x24AWG)   PVC, black Angled 2M M0804FA-2/POOR
5M M0804FA-5/POOR
10M M0804FA-10/POOR

*Cable length:2/5/10m,other cable lengths are available on request! Freely selectable cable material(P00R:black,PVC ,P01R:black,PUR)
