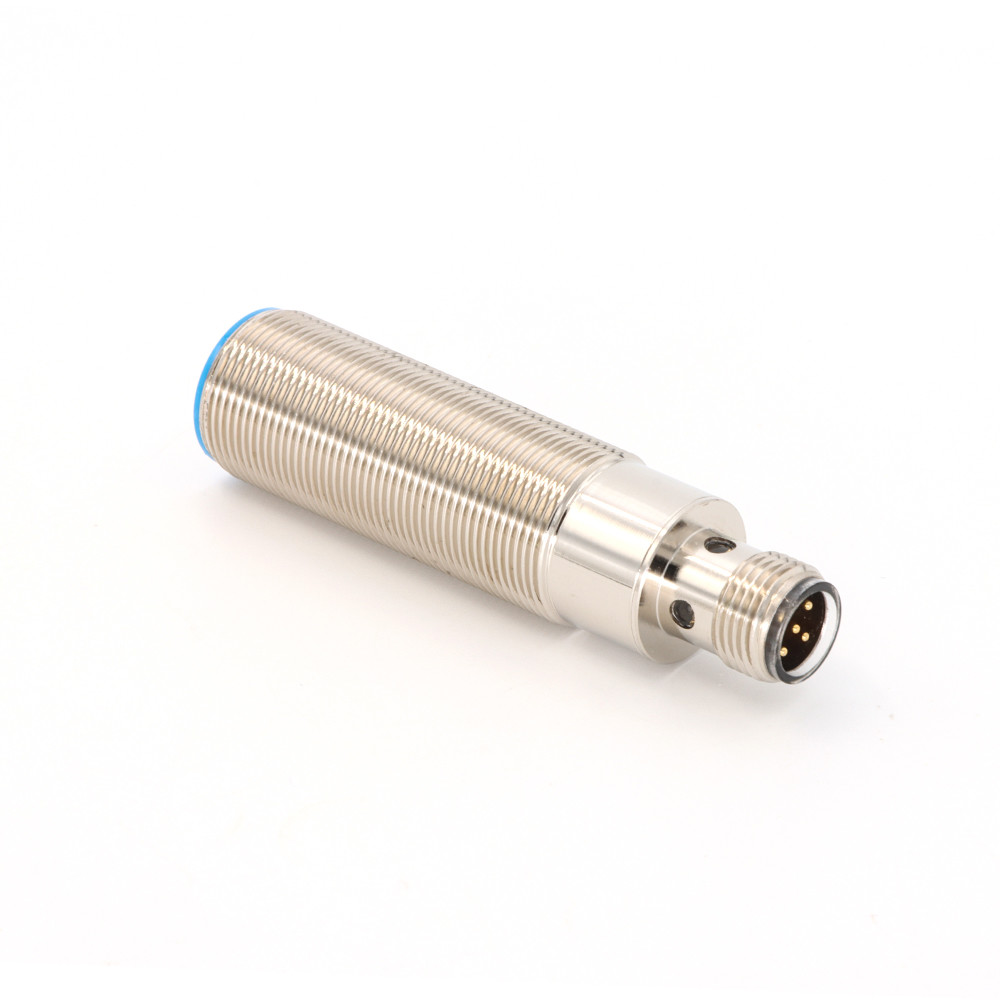

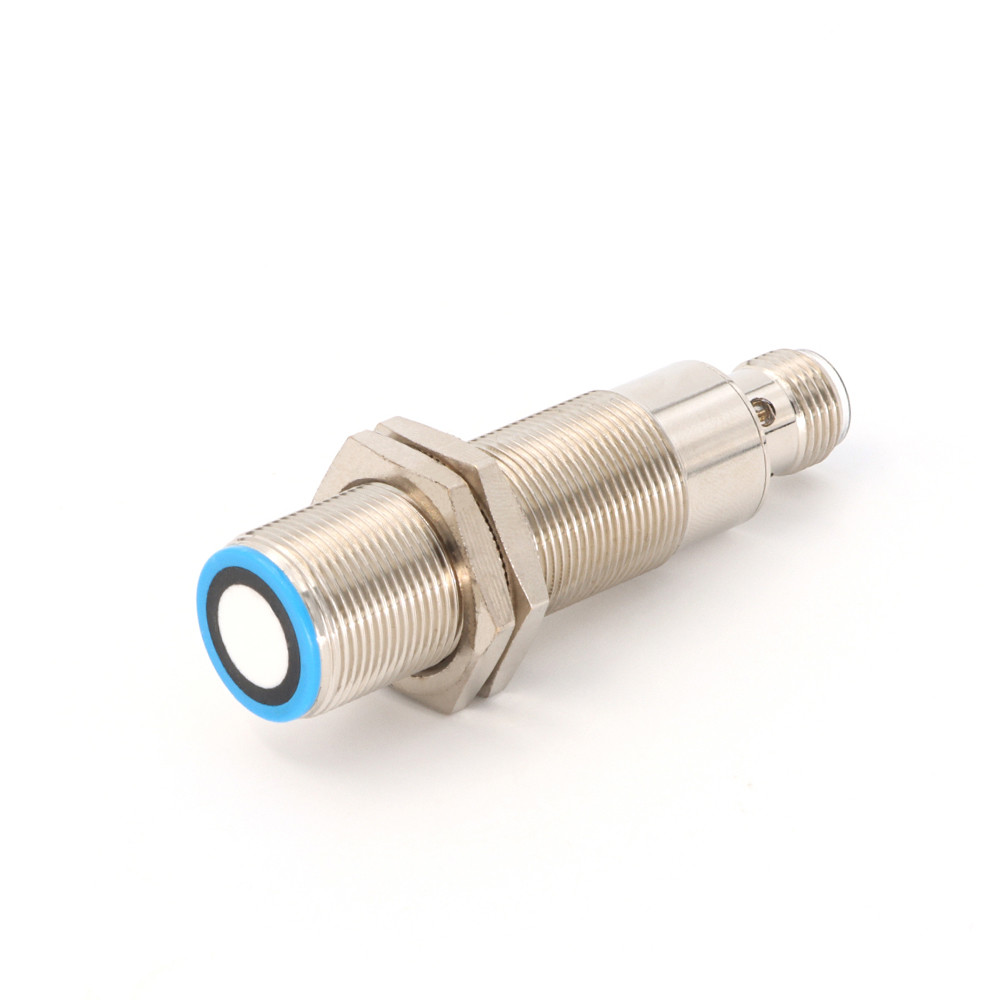

U18 Ultrasonic M12 Sensor NPN PNP NO/NC 60-1000mm 19Hz 5Pin
  • Name
  • Name

U18 Ultrasonic M12 Sensor NPN PNP NO/NC 60-1000mm 19Hz 5Pin

Brand Name: KRONZ
Model Number: U18-D1000N(P)1T-R00A
MOQ: 5 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Product Name:
U18 Ultrasonic Sensors
Connection Type:
5pin, M12 Connector
Enclosure Rating:
IP67
Supply Voltage:
10-30V DC
Detection Range:
60-1000mm
Blind Zone:
0-60mm
Resolution:
0.17mm
Repeatability:
±0.15% F.S.
Supply Ability:
100000 pieces per month
Highlight:

U18 Ultrasonic M12 Sensor

,

Ultrasonic M12 Sensor

,

5Pin Ultrasonic M12 Sensor

Product Description
U18 Ultrasonic M12 Sensor NPN PNP NO/NC 60-1000mm 19Hz 5Pin
Product Specifications
Attribute Value
Product Name U18 Ultrasonic Sensors
Connection type 5pin, M12 connector
Enclosure rating IP67
Supply Voltage 10-30V DC
Detection range 60-1000mm
Blind zone 0-60mm
Resolution 0.17mm
Repeatability ±0.15% F.S.
Product Features
  • M18 installation threaded sleeve for easy installation
  • 1 NPN or PNP switching output
  • Supports digital RS485, Modbus-RTU standard protocol communication
  • Analog voltage output 0-10V or analog current output 4-20 mA
  • Detection distance learning function through gray lines
  • Built-in temperature compensation
  • Standard operating voltage DC 10-30V
Technical Specifications
Model U18-D1000N(P)1T-R00A
Accuracy ±1% (built-in temperature drift compensation)
Response time 52ms
Switching hysteresis 2mm
Switching frequency 19Hz
Initialization time < 500ms
Load impedance I/ < 300 Ohm, U/ > 1k Ohm
No-load current ≤30mA
Material Copper nickel-plated, plastic fittings, glass epoxy resin
Ambient temperature -25℃ ~ +70℃ (248~343K)
Storage temperature -40℃ ~ +85℃ (233~358K)
Weight 38g
Output Options
  • N1: 1 NPN switching output NO/NC
  • P1: 1 PNP switching output NO/NC
Dimensional Drawing
U18 Ultrasonic M12 Sensor NPN PNP NO/NC 60-1000mm 19Hz 5Pin 0
*N42, P42 series coming soon.
