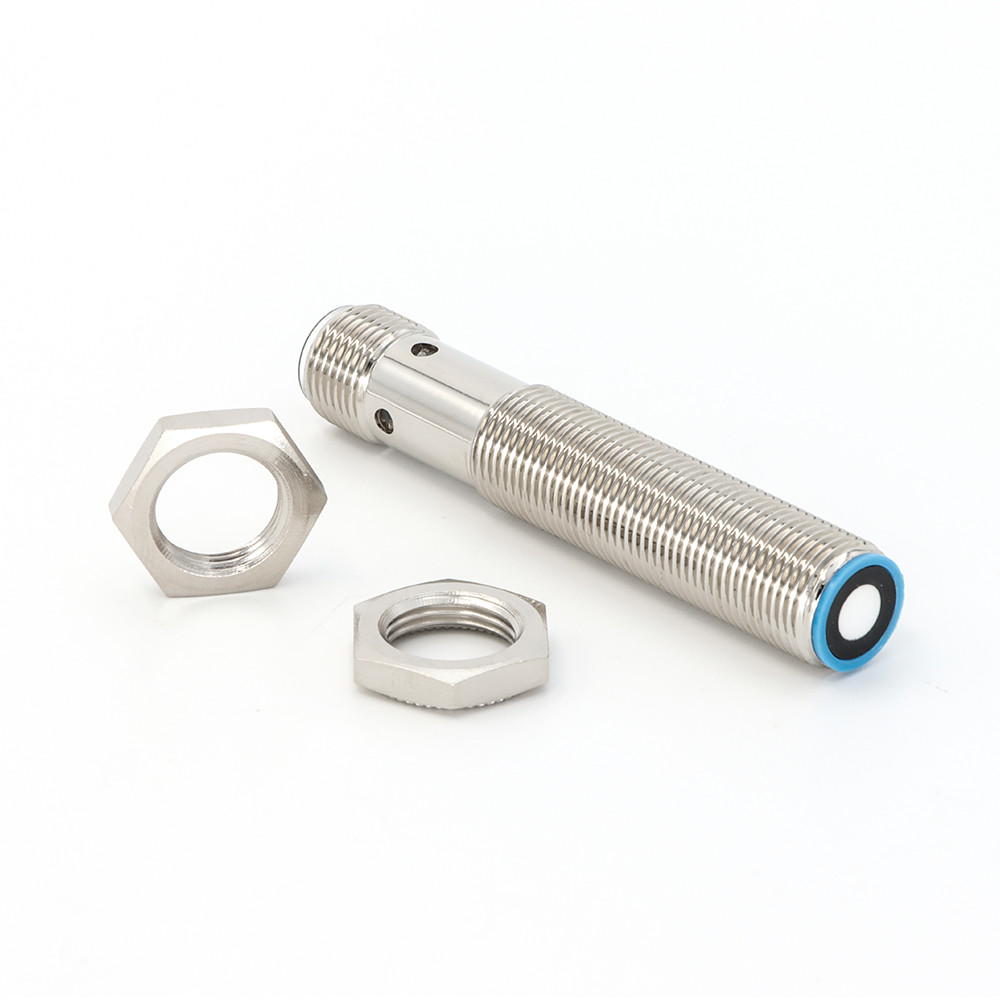

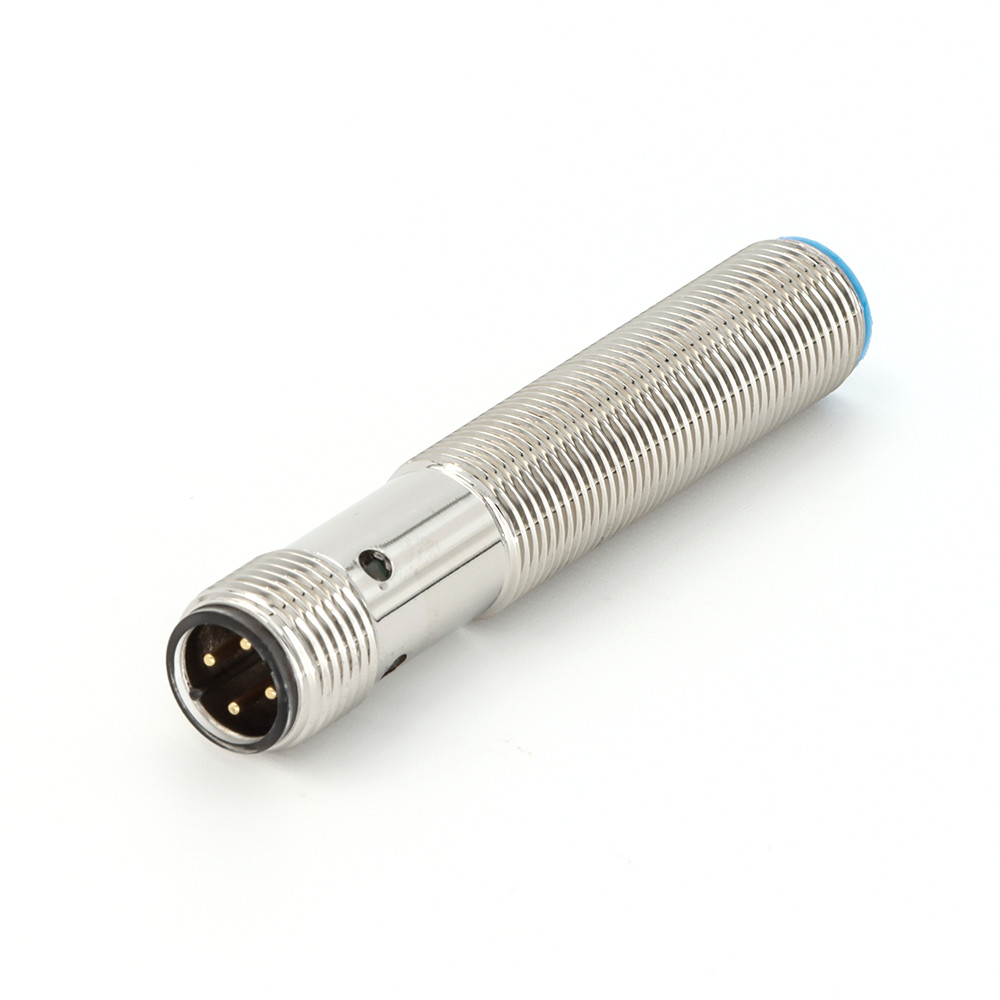

IP67 Industrial Ultrasonic Sensors U12 Analog Output M12 Connector
  • Name
  • Name

IP67 Industrial Ultrasonic Sensors U12 Analog Output M12 Connector

Brand Name: KRONZ
Model Number: U12-D120IT-R00A
MOQ: 5 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Description:
Ultrasonic Sensors U12
Detection Range:
20-120mm
Output:
Analog Current Output 4-20mA
LED Color:
Green, Red
Blind Zone:
0-20mm
Resolution:
0.1mm
No-load Current:
≤30mA
Supply Voltage:
10-30VDC
Supply Ability:
100000 pieces per month
Highlight:

Industrial Ultrasonic Sensors U12

,

M12 Connector Industrial Ultrasonic Sensors

,

IP67 Industrial Ultrasonic Sensors

Product Description
IP67 Industrial Ultrasonic Sensors U12 Analog Output M12 Connector
Key Specifications
Attribute Value
Description Ultrasonic Sensors U12
Detection Range 20-120mm
Output Analog current output 4-20mA
LED Color Green, Red
Blind zone 0-20mm
Resolution 0.1mm
No-load Current ≤30mA
Supply Voltage 10-30VDC
Ultrasonic Sensor U12 IP67 20-120mm Detection Range Analog Output M12 Connectors
Main Features
  • M12 installation threaded sleeve, the shortest full length is only 57mm
  • Small blind zone, small sound cone, suitable for close-range fine detection
Basic Features
  • 1 pc npn or pnp switching output
  • Realize detection distance learning function through white lines
  • Temperature compensation
  • Standard operating voltage DC 10-30V
Technical Specifications
Model U12-D120IT-R00A
Detection range 20-120mm
Blind zone 0-20mm
Resolution 0.1mm
Repeatability ±0.15%F.S.
Accuracy ±1%(built-in temperature drift compensation)
Response time 18ms
Initialization time ＜ 500ms
Supply voltage 10-30V DC, reverse-polarity protection
Red LED no object detected: Lights up, teaching-in when no object detected: Flashes
Green LED object detected: Lights up, teaching-in when object detected: Flashes
Overcurrent protection 200mA, Red LED and Green LED flashing at the same time
Load impedance I/ ＜ 300 Ohm, U/ ＞ 1k Ohm
No-load current ≤30mA
Input type Teach-in and synchronization
Material Copper nickel-plated, plastic fittings, glass epoxy resin
Enclosure rating IP67
Connection type 4pin, M12 connector
Ambient temperature -25℃ ~ +70℃(248~343K)
Storage temperature -40℃ ~ +85℃(233~358K)
Weight 16g
Output type I: 1 analog current output 4-20mA
Dimensional Drawing
IP67 Industrial Ultrasonic Sensors U12 Analog Output M12 Connector 0
