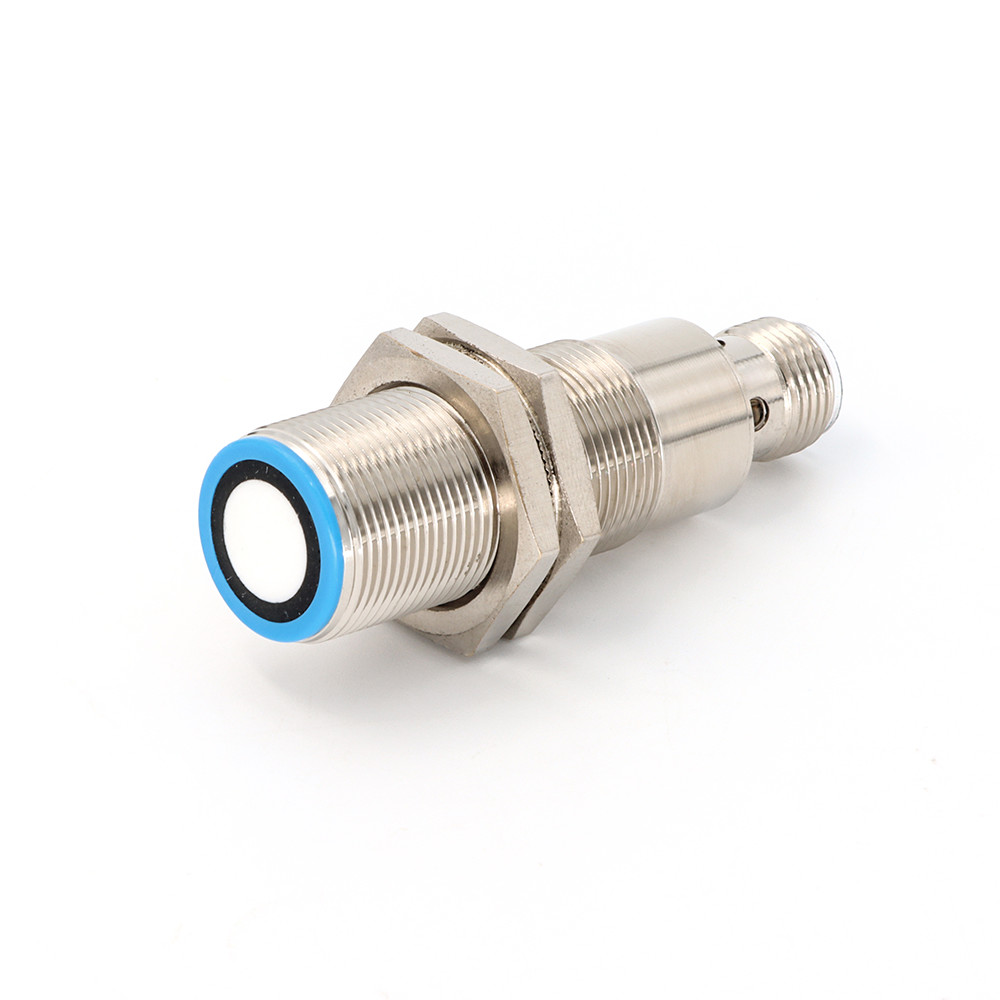

5 Pin M12 Connector Industrial Ultrasonic Sensor 30-300mm Detection Range

10 pieces
MOQ
Negotiable
Price
5 Pin M12 Connector Industrial Ultrasonic Sensor 30-300mm Detection Range
Features Gallery Product Description Request A Quote
Features
Specifications
Detection Range: 30-300mm
Blind Zone: 0-30mm
Resolution: 0.1mm
Response Time: 22ms
No-load Current: ≤30mA
Supply Voltage: 10-30V DC
Enclosure Rating: IP67
Connection Type: 5pin, M12 Connector
Highlight:

M12 Connector Industrial Ultrasonic Sensor

,

5 Pin Industrial Ultrasonic Sensor

,

5 Pin M12 Connector Ultrasonic Sensor
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: U18-D300UIT-R00A
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description

Ultrasonic Sensor Analog Current Voltage Output 30-300mm 5 Pin M12 Connector



Product Description

Main Feature:

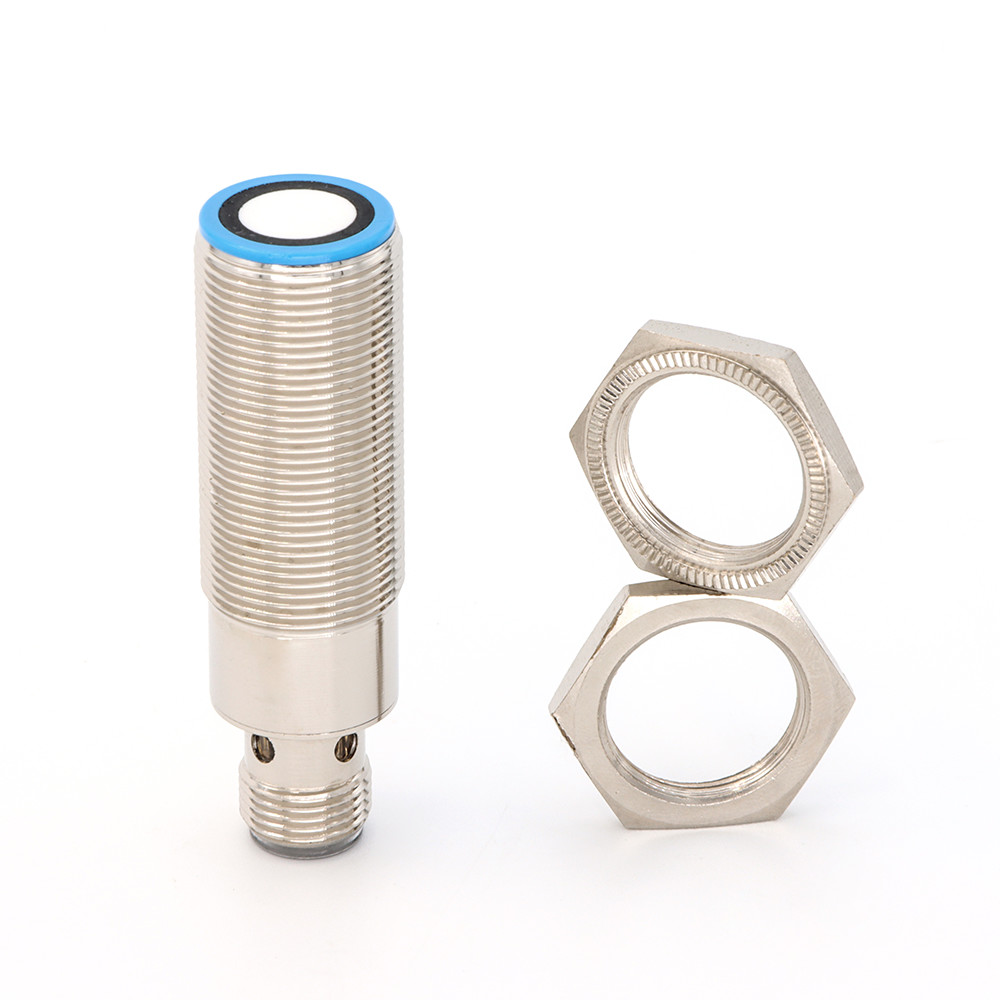

▶ M18 installation threaded sleeve
▶ Easy to instal



Basic Feature:
▶ 1 pc npn or pnp switching output
▶ Support digital RS485, modbus-rut standard protocol communication
▶ Analog voltage output 0-10V or analog current output 4-20 mA
▶ Implementing detection distance learning function through gray lines
▶ Temperature compensation
▶ Standard operating voltage DC 10-30V





Model U18-D300UIT-R00A
Dection range 30-300mm
Blind zone 0-30mm
Resolution 0.1mm
Repeatability ±0.15%F.S.
Accuracy ±1%(built-in temperature drift compensation)
Response time 22ms
Initialization time < 500ms
Supply voltage 10-30V DC,reverse-polarity protection
Red LED no object detected:Lights up, teaching-in when no object detected:Flashes
Green LED object detected:Lights up, teaching-in when object detected:Flashes
Overcurrent protection 200mA,Red LED and Green LED flashing at the same time
Load impedance I/ ＜ 300 Ohm,U/ ＞ 1k Ohm
No-load current ≤30mA
Input type

Teach-in and synchronization
Material Copper nikel-plated,plastic fittings,glass epoxy resin.
Enclosure rating IP67
Connection type 5pin, M12 connector
Ambient temperature -25℃ ~+70℃(248~343K)
Storage temperature -40℃ ~+85℃(233~358K)
Weight 35g
Output type UI: 1 analog voltage output 0-10V + 1 analog current output 4-20mA, up/down
Dimensional drawing 5 Pin M12 Connector Industrial Ultrasonic Sensor 30-300mm Detection Range 0
