RFID Reader Head 9-30VDC Read Write 0-40mm Head with RS-232 M18x1 CE

Brand Name:	KRONZ
Model Number:	KRH-M18G-R2
MOQ:	10 pieces
Price:	Negotiable
Packaging Details:	Paper box packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE

Document:

Product Brochure PDF

Series:

M18 Series

Product Name:

High Reading And Writing Speed

ISO Standard:

ISO 15693

Operating Frequency:

13.56MHz

Read /Write Range:

0~40mm（Related To The Tags）

Connector:

4Pin-M12-ACODED-Male

Operation Temperature:

-30℃~+70℃

Storage Temperature:

-40℃~+85℃

Supply Ability:

10000 pieces per month

Highlight:

RFID Reader Head 30VDC

,

RS-232 RFID Reader Head

,

M18x1 RFID Reader Head

Product Description

RFID Reader Head 9-30VDC Read Write 0-40mm Head with RS-232 M18x1 CE

Product Specifications

Attribute	Value
Series	M18 Series
Product Name	High reading and writing speed
ISO Standard	ISO 15693
Operating Frequency	13.56MHz
Read/Write range	0~40mm (Related to the tags)
Connector	4Pin-M12-ACODED-Male
Operation temperature	-30℃~+70℃
Storage temperature	-40℃~+85℃

Key Features

High protection level and strong corrosion resistance for harsh industrial environments
High reading and writing speed to improve production efficiency
Supports RS232, RS485, Modbus RTU communication protocols
Compatible with industrial networks including TCP, Modbus TCP, PROFINET, EtherCat and Ethernet/IP
High stability and reliability for 24/7 operation

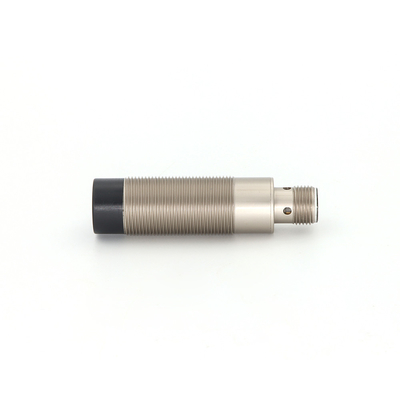

RFID Reader Head 9-30VDC Read Write 0-40mm Head with RS-232 M18x1 CE 0

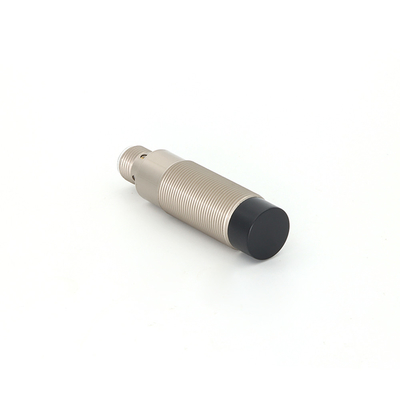

RFID Reader Head 9-30VDC Read Write 0-40mm Head with RS-232 M18x1 CE 1

RFID Reader Head 9-30VDC Read Write 0-40mm Head with RS-232 M18x1 CE 2

Design Characteristics

Feature	Description
Design	LED status display, Power supply and communication interface
Area of application	Identification tasks on small assembly lines in harsh industrial environments. Mainly used in 3C, new energy and other industries.

Electrical Interface

KRH-M18G with RS-232 interface, using a 4Pin-M12-ACODED-Male connector:

RFID Reader Head 9-30VDC Read Write 0-40mm Head with RS-232 M18x1 CE 3

Pin	Assignment	Description
1	+24V	Power supply positive
2	TX	RS-232 TX
3	0V	Power supply negative
4	RX	RS-232 RX

LED Operating Display

The operational statuses of the reader are displayed by the LEDs:

Name	Color	State	Description
SYS	Blue	Off	The reader is power off.
		On	The reader is powered on and working properly.
		20Hz flashing	Tags was detected in the main identification area (RSSI signal is the strongest).
		8Hz flashing	Tags was detected in the secondary identification area (RSSI signal is medium).
		4Hz flashing	Tags was detected in the critical identification area (RSSI signal is weak).
		2Hz flashing	Valid instructions were received and executed successfully

RFID Reader Head 9-30VDC Read Write 0-40mm Head with RS-232 M18x1 CE 4
