AC/DC 480W Din-rail Industrial Power Supply 24V/20A Output LED Indicator Active PFC
  • Name
  • Name
  • Name

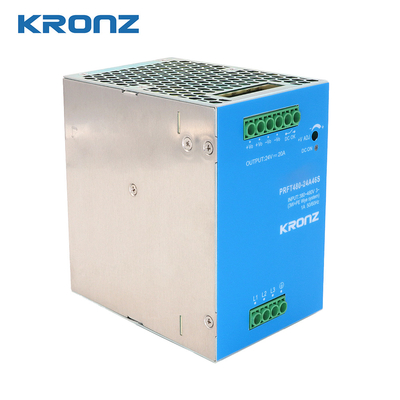

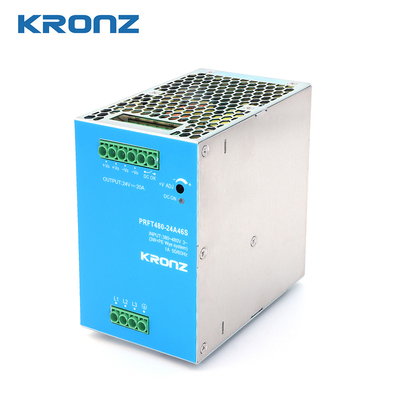

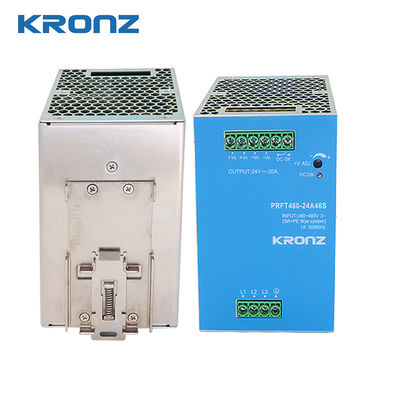

AC/DC 480W Din-rail Industrial Power Supply 24V/20A Output LED Indicator Active PFC

Brand Name: KRONZ
Model Number: PRFT480-24A46S
MOQ: 10 pieces
Price: Negotiable
Packaging Details: Paper box packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Description:
480W Power Supply
Output Power:
480W
Nominal Output:
24V/20A
Output Voltage:
24-28V
Power Factor:
400VAC-500VAC
Housing Material:
Metal (AL5052.SPCC)
Diamension:
80.00 X 124.00 X 127.00mm
Supply Ability:
10000 pieces per month
Highlight:

24V Industrial Power Supply

,

Din-rail Industrial Power Supply

,

20A Industrial Power Supply

Product Description
AC/DC 480W Din-rail Industrial Power Supply 24V/20A Output LED Indicator Active PFC
Key Specifications
Attribute Value
Description 480W Power Supply
Output Power 480W
Nominal Output 24V/20A
Output Voltage 24-28V
Power Factor 400VAC-500VAC
Housing Material Metal (AL5052.SPCC)
Dimensions 80.00 x 124.00 x 127.00mm
Product Overview

The PRFT480-xxA46S series provides three-phase rail-mounted power supplies with high cost performance, efficiency, and reliability. Featuring a 150% power reserve, it supports heavy loads like DC motors or capacitive loads while maintaining excellent EMC performance and safety compliance (UL508, UL/IEC62368, EN62477, IEC60664).

Key Features
  • Wide input voltage range: 3x320-550VAC/450-800VDC (two-phase operation possible)
  • Withstands 3x600VAC/5s input
  • Active PFC with PF value up to 0.95
  • Operating temperature: -40℃ to +70℃ (50℃ full load)
  • DIN rail installation
  • 150% peak power for 3 seconds
  • Comprehensive protection: short circuit, overcurrent, overvoltage, overtemperature
  • Double-sided three-proof paint
  • Suitable for 5000m altitude applications
Technical Specifications
Input Specifications
Item Operating Conditions Min. Typ. Max. Unit
Input Voltage Range Rated input (certified voltage) 380 -- 480 VAC
AC input   320 -- 550
DC input   450 -- 800 VDC
Input Voltage Frequency   47 -- 63 Hz
Output Specifications
Item Operating Conditions Min. Typ. Max. Unit
Output Voltage Accuracy Full load range -- ±1.0 -- %
Ripple & Noise 20MHz bandwidth (peak-peak value) -- -- 150 mv
Operating Temperature   -40 -- +70 ℃
Installation
AC/DC 480W Din-rail Industrial Power Supply 24V/20A Output LED Indicator Active PFC 0
Frequently Asked Questions
Where is this product manufactured?
This product is manufactured in Guangdong, China.
Does this product have any certifications?
Yes, this product is CE certified.
What is the minimum order quantity?
No MOQ required.
What is the delivery time?
5-8 working days for small quantity; contact seller for larger orders.
