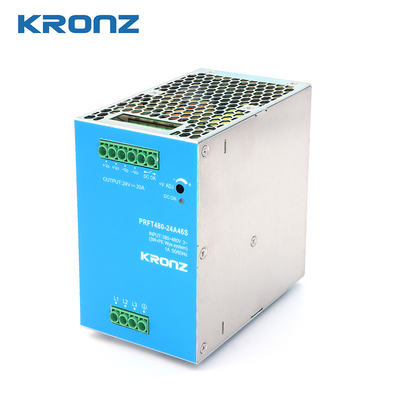

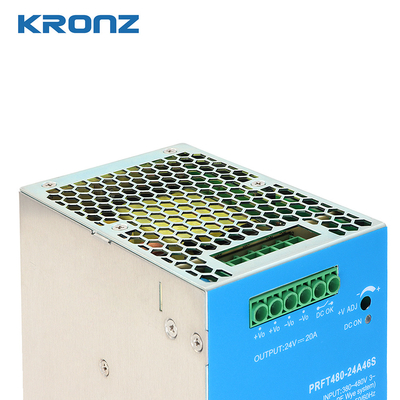

Industrial Power Supply AC/DC 480W Din-rail 24V/20A Output DC OK Function

Brand Name: KRONZ
Model Number: PRFT480-48A46S
MOQ: 10 pieces
Price: Negotiable
Packaging Details: Paper box packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Description:
480W Power Supply
Output Power:
480W
Nominal Output:
48V/10A
Output Voltage:
48-55V
Inrush Current:
400VAC
Working Temperature:
-40℃-70℃
Storage Temperature:
-40℃-85℃
Supply Ability:
10000 pieces per month
Highlight:

24V Industrial Power Supply

,

AC DC Industrial Power Supply

,

20A Industrial Power Supply

Product Description
Industrial Power Supply AC/DC 480W Din-rail 24V/20A Output DC OK Function
Product Specifications
Attribute Value
Description 480W Power Supply
Output Power 480W
Nominal Output 48V/10A
Output Voltage 48-55V
Inrush Current 400VAC
Working Temperature -40℃-70℃
Storage Temperature -40℃-85℃
Product Description

The PRFT480-xxA46S series provides customers with three-phase rail-mounted power supplies. This series features high cost performance, efficiency, reliability, and safe isolation. With a 150% power reserve, it supports heavy loads like DC motors or capacitive loads. The product offers excellent EMC performance and complies with UL508, UL/IEC62368, EN62477, and IEC60664 standards.

Key Features
  • Input voltage range: 3x320-550VAC/450-800VDC (two-phase operation possible)
  • Input withstands 3x600VAC/5s
  • Active PFC with PF value up to 0.95
  • Operating temperature: -40℃ to +70℃ (50℃ full load)
  • DIN rail installation
  • High efficiency and reliability
  • Output LED indicator
  • 150% peak power for 3 seconds
  • Comprehensive protection: short circuit, overcurrent, overvoltage, overtemperature
  • DC OK function
  • Double-sided three-proof paint
  • Suitable for 5000m altitude applications
Selection Guide
Model No. Output Power Nominal Output Output Voltage Range Efficiency Max. Capacitive Load
PRFT480-48A46S 480W 48V/10A 48-55V 95% 10000μF
Technical Specifications
Input Specifications:
Item Operating Conditions Min. Typ. Max. Unit
Input Voltage Range Rated input (certified voltage) 380 -- 480 VAC
AC input   320 -- 550
DC input   450 -- 800 VDC
Input Voltage Frequency   47 -- 63 Hz
Input Current 400VAC -- -- 0.85 A
Inrush Current 400VAC Cold start -- 50 --
Output Specifications:
Item Operating Conditions Min. Typ. Max. Unit
Output Voltage Accuracy Full load range -- ±1.0 -- %
Line Regulation Rated load -- ±0.5 --
Load Regulation 0% - 100% load -- ±1.0 --
Ripple & Noise 20MHz bandwidth (peak-peak value) -- -- 150 mv

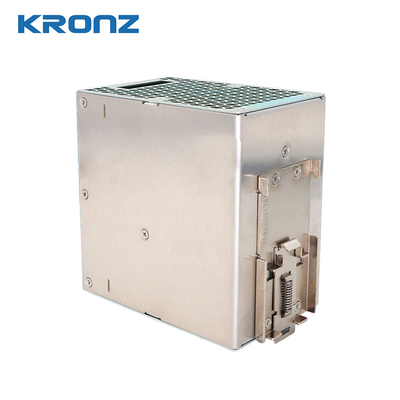

Installation
Industrial Power Supply AC/DC 480W Din-rail 24V/20A Output DC OK Function 0
Frequently Asked Questions
Q: Where is this product manufactured?
A: This product is manufactured in Guangdong, China.
Q: Does this product have any certifications?
A: Yes, this product is CE certified.
Q: What is the minimum order quantity for this product?
A: No MOQ.
Q: How is this product packaged?
A: This product is packaged in polybag packing, export carton.
