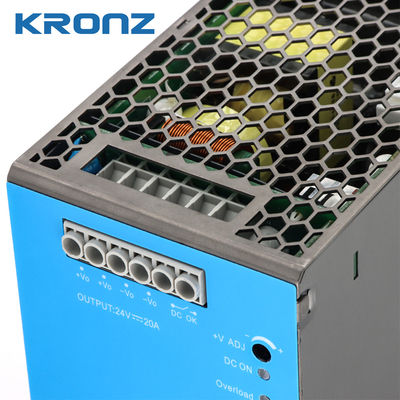

480W Power Supply AC/DC Din-rail 24V/20A High Efficiency Power Supply 24V

10 pieces
MOQ
Negotiable
Price
480W Power Supply AC/DC Din-rail 24V/20A High Efficiency Power Supply 24V
Features Gallery Product Description Chat Now
Features
Specifications
Description: 480W Power Supply
Output Power: 480W
Nominal Output: 48V/20A
Output Voltage: 24-28V
Inrush Current: 400VAC-480VAC
Housing: Metal (AL5052, SPCC)
Cooling: Natural Air Cooling
Highlight:

AC/DC Din-rail Power Supply

,

24V Din-rail Power Supply

,

20A Din-rail Power Supply
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE

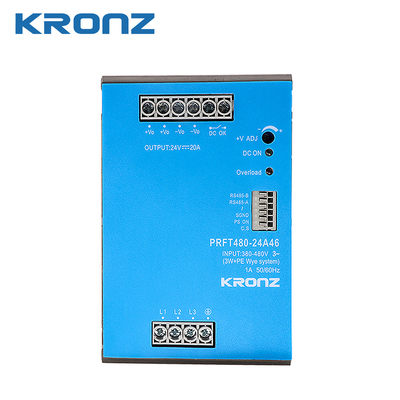

Model Number: PRFT480-24A46
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Paper box packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000 pieces per month
Product Description
480W Power Supply AC/DC Din-rail 24V/20A High Efficiency Power Supply 24V
Product Specifications
Attribute Value
Description 480W Power Supply
Output Power 480W
Nominal Output 48V/20A
Output Voltage 24-28V
Inrush Current 400VAC-480VAC
Housing Metal (AL5052, SPCC)
Cooling Natural air cooling
Product Description

The PRFT480-xxA46 Series is a three-phase DIN rail power supply designed for industrial applications. This high-performance unit offers exceptional efficiency, reliability, and safe isolation with a 150% power reserve capacity for demanding startup conditions.

Key Features:
  • Input voltage: 3x320-600VAC/450-800VDC
  • Active PFC with PF > 0.95
  • Wide operating temperature range: -30℃ to +70℃ (60℃ full load)

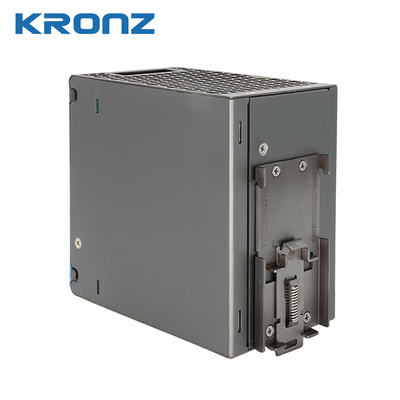

  • DIN Rail installation for easy mounting
  • High efficiency (up to 95%) and reliability
  • LED output status indicators
  • 150% peak power capacity for 4.5 seconds
  • Comprehensive protection: short circuit, over-current, over-voltage, over temperature
  • Supports parallel (2+1 current sharing) and series connection
  • Advanced features: fault warning, DC OK, anti-backflow function
  • Robust construction: double-sided three-proof paint, anti-salt spray
  • RS485 communication and remote shutdown capability
  • Certified for 5000m altitude operation
  • Complies with IEC/UL62368, EN61010, UL508 standards
Selection Guide
Model No. Output Power Nominal Output Voltage&Current Output Voltage Range Efficiency at 230VAC Max. Capacitive Load
PRFT480-48A46 480W 24V/20A 24-28V 95% 20000μF
Technical Specifications
Input Specifications
Item Operating Conditions Min. Typ. Max. Unit
Input Voltage Range Rated input (certified voltage) 380 -- 480 VAC
AC input 320 -- 600
DC input 450 -- 800 VDC
Input Voltage Frequency 47 -- 63 Hz
Input Current 400VAC -- -- 0.85 A
500VAC -- -- 0.7
Inrush Current 400VAC Cold start -- 50 --
Power Factor 400VAC Normal temperature, fully loaded 0.93 0.95 --
500VAC 0.92 0.95 --
Start Delay Time -- 0.8 -- s
Output Specifications
Item Operating Conditions Min. Typ. Max. Unit
Output Voltage Accuracy Full load range -- ±1.0 -- %
Line Regulation Rated load -- ±0.5 --
Load Regulation 0% - 100% load -- ±1.0 --
Ripple & Noise 20MHz bandwidth (peak-peak value) -- -- 150 mv
Temperature drift coefficient 0℃ to +50℃ -- ±0.03 -- %/℃
Min. Load 0 -- -- %
Dynamic Min. Load 10 -- --
General Specifications
Item Operating Conditions Min. Typ. Max. Unit
Isolation Test Input-Output (1 minute, leakage current <5mA) 4000 -- -- VAC
Operating Temperature -40 -- +70 ℃
Storage Temperature -40 -- +85
MTBF MIL-HDBK-217F@25℃ >300,000 -- -- h
Physical Specifications
Item Value
Housing Material Metal (AL5052, SPCC)
Dimensions 124.00 x 41.00 x 110.00 mm
Weight 1080g (Typical)
Cooling Method Free air convection
Installation
480W Power Supply AC/DC Din-rail 24V/20A High Efficiency Power Supply 24V 0
Manufacturer Information

Kronz is a manufacturing enterprise located in Zengcheng District, Guangzhou City, specializing in high-efficiency industrial automation solutions. With years of innovation and development, Kronz maintains complete product processing equipment and a professional team proficient in various automation technologies.

Our product range includes Industrial Connectors, Sensors (Inductive, Capacitive, Photoelectric, Ultrasonic), Industrial power supplies, Fieldbus systems, RFID recognition systems, and Industrial Ethernet Switches. We offer both standard and customized production based on customer requirements.

Frequently Asked Questions
Where is this product manufactured?

This product is manufactured in Guangdong, China.

Does this product have any certifications?

Yes, this product is CE certified and complies with IEC/UL62368, EN61010, and UL508 standards.

What is the minimum order quantity?

No minimum order quantity required.

What is the delivery time?

Standard delivery time is 5-8 working days for small quantities. For larger orders, please contact us.
