Industrial Power Supply With Wide Operating Temperature Range And -40- 70°C Ripple 20MHz Max. 80mV

Brand Name: KRONZ
Model Number: PRP15-05A40
MOQ: 1
Price: Negotiable
Packaging Details: Box Packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Efficiency (230VAC, %/ Typ.):
80
Output Power:
12W
Safety Standards:
IS13252(Par1)&EN62368-1, BS EN 62368-1(Report);In Line With UL/ IEC62368-1, IEC/ EN61010-1, IEC/ EN61558-1, IEC60335-1
Input Current:
0.5A (115VAC) ; 0.25A (230VAC)
Maximum Capacitive Load (μF):
2000
Output Voltage&Current:
5V/2.4A
Output Voltage Accuracy:
±2%
Power-down Hold Time:
12ms (115VAC) ; 30ms (230VAC
Supply Ability:
10000 pieces per month
Highlight:

Low Ripple Industrial Power Supply

,

Industrial Power Supply 80mV

,

Industrial Power Supply 20MHz

Product Description

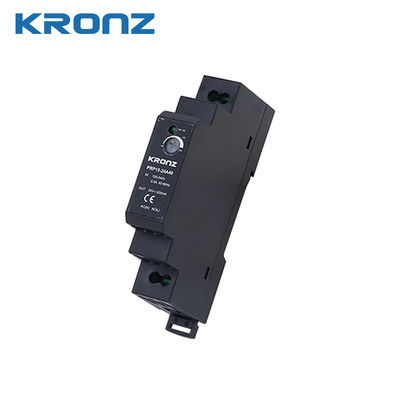

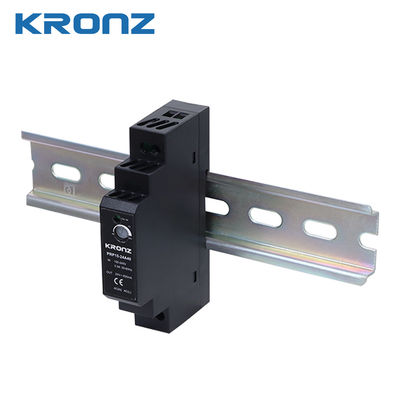

Industrial Power Supply With Wide Operating Temperature Range And -40-70°C Ripple 20MHz Max. 80mV
Product Overview

This industrial-grade power supply delivers reliable performance for demanding applications. With an efficiency of 80% at 230VAC and wide operating temperature range (-40°C to +70°C), it provides stable power in challenging environments.

Industrial Power Supply With Wide Operating Temperature Range And -40- 70°C Ripple 20MHz Max. 80mV 0
Key Specifications
Attribute Value
Efficiency (230VAC, %/Typ.) 80
Output Power 12W
Safety Standards IS13252(Par1)&EN62368-1, BS EN 62368-1(Report); In Line With UL/IEC62368-1, IEC/EN61010-1, IEC/EN61558-1, IEC60335-1
Input Current 0.5A (115VAC); 0.25A (230VAC)
Maximum Capacitive Load (μF) 2000
Output Voltage & Current 5V/2.4A
Output Voltage Accuracy ±2%
Power-down Hold Time 12ms (115VAC); 30ms (230VAC)
Technical Specifications
Model: PRP15-05A40
Parameter Specification
Output Power 12W
Nominal Output Voltage & Current 5V/2.4A
Adjustable Output Voltage Range (ADJ) 4.5~5.5
Input Characteristics

AC Input Voltage: 85~264VAC

DC Input Voltage: 120~370VDC

Input Frequency: 47~63Hz
Output Characteristics

Load Regulation: ±1% (230VAC)

Ripple (20MHz): Max. 80mV
Operating Temperature -40~+70°C
Weight 60g
Industrial Power Supply With Wide Operating Temperature Range And -40- 70°C Ripple 20MHz Max. 80mV 1 Industrial Power Supply With Wide Operating Temperature Range And -40- 70°C Ripple 20MHz Max. 80mV 2
Applications

This industrial power supply is ideal for:

  • Industrial machinery and equipment
  • Control systems and automation
  • Process control applications
  • Harsh environment operations

With CE certification and compliance with international safety standards, this unit is suitable for global industrial applications.

Support and Services

Comprehensive technical support is available for product setup, troubleshooting, and maintenance. Our expert team ensures smooth operation and maximum efficiency.

Packaging and Shipping

Packaging: Sturdy cardboard box with protective packaging and clear labeling.

Shipping: Reliable delivery via trusted carriers, typically within 5-8 working days.
