Din-rail Industrial Power Supply With 36W Power UL/IEC62368-1 Max. Capacitive Load 1400μF

1
MOQ
Negotiable
Price

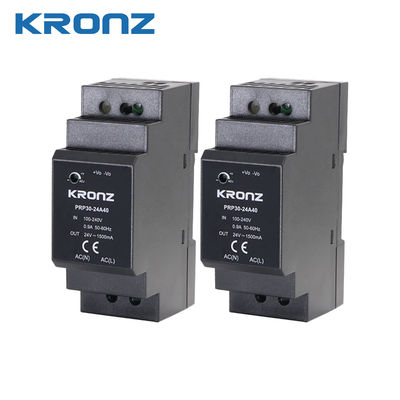

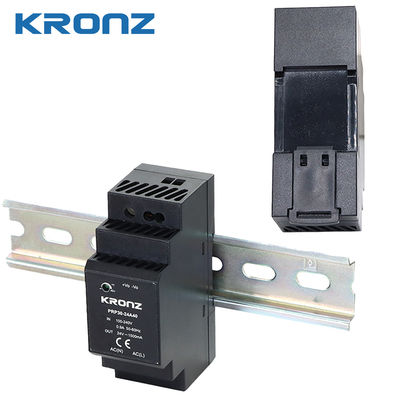

Din-rail Industrial Power Supply With 36W Power UL/IEC62368-1 Max. Capacitive Load 1400μF
Features Gallery Product Description Chat Now
Features
Specifications
Safety Standards: UL/ IEC62368-1, IS13252(Par1)&EN62368-1, EN61558-1/ -2-16, BS EN 62368-1
Output Voltage Accuracy: ±2%
Weight: 115g
Load Regulation: ±1.5% (230VAC)
Ripple (20MHz ): Max. 150mV
DC Input Voltage: 120~370VAC
Input Frequency: 47~63Hz
Efficiency (230VAC, %/ Typ.): 88
Highlight:

1400μF Industrial Power Supply

,

Din Rail Industrial Power Supply

,

36W Industrial Power Supply

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: PRP30-24A40
Payment & Shipping Terms
Packaging Details: Box Packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000 pieces per month
Product Description
Din-rail Industrial Power Supply With 36W Power UL/IEC62368-1 Max. Capacitive Load 1400μF
Product Attributes
Attribute Value
Safety standards UL/IEC62368-1, IS13252(Par1)&EN62368-1, EN61558-1/ -2-16, BS EN 62368-1
Output voltage accuracy ±2%
Weight 115g
Load regulation ±1.5% (230VAC)
Ripple (20MHz) Max. 150mV
DC Input voltage 120~370VAC
Input frequency 47~63Hz
Efficiency (230VAC, %/ Typ.) 88
Product Description

The Industrial Power Supply is a reliable AC/DC Converter designed to provide a consistent power output of 36W for industrial applications. With its robust design and wide operating temperature range of -40~+70°C, this Industrial Power Converter is suitable for use in various environments and conditions.

Din-rail Industrial Power Supply With 36W Power UL/IEC62368-1 Max. Capacitive Load 1400μF 0
Technical Data
Model number for ordering PRP30-24A40
Output power 36w
Nominal output voltage & current 24V/1.5A
Adjustable output voltage range (ADJ) 21.6~29.0
Efficiency (230VAC, %/ Typ.) 88
Maximum capacitive load (μF) 1400
Input characteristics
AC Input voltage 85~264VAC
DC Input voltage 120~370VDC
Input current 0.9A (115VAC) ; 0.5A (230VAC)
Input frequency 47~63Hz
Output characteristics
Output voltage accuracy ±2%
Load regulation ±1.5% (230VAC)
Ripple (20MHz) Max. 150mV
Power-down hold time 12ms (115VAC) ; 60ms (230VAC)
Generic features
Operating temperature -40~+70°C
Weight 115g
Safety standards UL/IEC62368-1,IS13252(Par1)&EN62368-1,EN61558-1/-2-16,BS EN 62368-1
Din-rail Industrial Power Supply With 36W Power UL/IEC62368-1 Max. Capacitive Load 1400μF 1 Din-rail Industrial Power Supply With 36W Power UL/IEC62368-1 Max. Capacitive Load 1400μF 2
Applications

KRONZ Industrial Power Supply is a versatile and reliable product designed to meet the demanding power requirements of various industrial applications. With its high-quality components and advanced features, this power supply is suitable for:

  • Industrial AC/DC power applications requiring stable and efficient power source
  • Industrial DC power applications where consistent and clean power supply is essential
  • DC/DC conversion applications with high efficiency requirements
  • Industrial automation, telecommunications, and other industrial applications

The product is CE certified, with a minimum order quantity of 1 and negotiable pricing. Delivery time is 5-8 working days with multiple payment options available.

Support and Services

Our Industrial Power Supply comes with comprehensive technical support including:

  • Product installation support
  • Maintenance guidance
  • Warranty assistance
  • Product training
Din-rail Industrial Power Supply With 36W Power UL/IEC62368-1 Max. Capacitive Load 1400μF 3 Din-rail Industrial Power Supply With 36W Power UL/IEC62368-1 Max. Capacitive Load 1400μF 4
Packing and Shipping

Our Industrial Power Supply is carefully packaged to ensure safe delivery:

  • Each unit securely wrapped in protective material
  • Sturdy box packaging with appropriate cushioning
  • Shipped via reliable carriers for prompt delivery
Din-rail Industrial Power Supply With 36W Power UL/IEC62368-1 Max. Capacitive Load 1400μF 5 Din-rail Industrial Power Supply With 36W Power UL/IEC62368-1 Max. Capacitive Load 1400μF 6
