Linear Beam Photoelectric Sensors <0.5ms Response Time NPN Output Type Diffuse Reflection

1
MOQ
Negotiable
Price
Linear Beam Photoelectric Sensors <0.5ms Response Time NPN Output Type Diffuse Reflection
Features Gallery Product Description Chat Now
Features
Specifications
Sensing Distance: 30-300mm
Application: Industrial Automation
Output: NPN
Rsidual Voltage: ＜2V (operating Current:＜10~100mA)
Operating Humility: 35%~85%RH
Storage Humility: 35~95%RH (non-freezing,non-condensing)
IP Rating: IEC60529: IP64
Power Supply: DC 12~24V; Ripple :±10%
Highlight:

Diffuse Reflection Photoelectric Sensors

,

Linear Beam Photoelectric Sensors
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: BLQ20S-G300N
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T,Western Union,MoneyGram
Supply Ability: 10000 pieces per month
Product Description
Linear Beam Photoelectric Sensors with <0.5ms Response Time (NPN Output, Diffuse Reflection)
Key Specifications
Attribute Value
Sensing Distance 30-300mm
Application Industrial Automation
Output NPN
Residual Voltage <2V (operating current: <10~100mA)
Operating Humidity 35%~85%RH
Storage Humidity 35~95%RH (non-freezing, non-condensing)
IP Rating IEC60529: IP64
Power Supply DC 12~24V; ripple: ±10%
Product Overview

The Long-range Photoelectric Sensor uses infrared light to reliably detect opaque objects within a 30-300mm range. Featuring a high-quality Infrared LED light source, this sensor delivers precise detection with rapid <0.5ms response time.

CMOS Laser Displacement Technology

For applications requiring micrometer-level precision, our CMOS Laser Displacement Photoelectric Sensor projects a narrow laser beam onto target surfaces. The reflected light is captured by a CMOS image sensor to calculate exact distances without physical contact - ideal for measuring delicate, moving, or hot components.

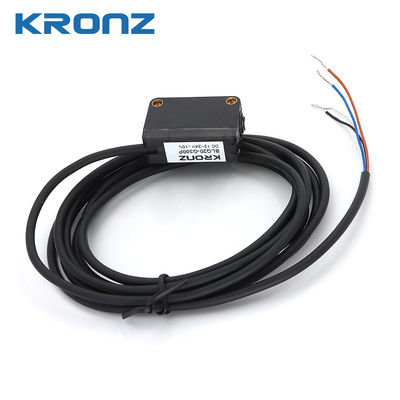

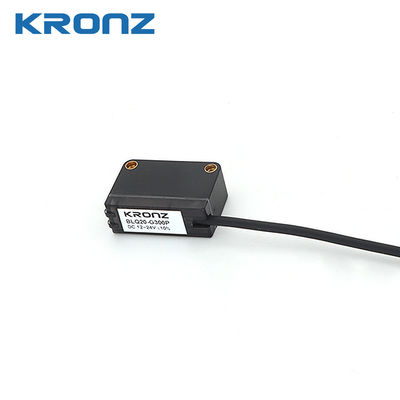

Linear Beam Photoelectric Sensors <0.5ms Response Time NPN Output Type Diffuse Reflection 0 Linear Beam Photoelectric Sensors <0.5ms Response Time NPN Output Type Diffuse Reflection 1
Technical Specifications: BLQ20S-G300N (Linear Beam)
White/black deviation 3%(160mm)
Distance deviation <3%
Sensing range 30-300mm
Current consumption <3mA
Wave length Laser (655mm)
Power supply DC 12~24V; ripple: ±10%
Response time <0.5ms
Ambient temperature Operating: -25°C~+55°C; Storage: -40°C~+70°C (non-freezing, non-condensing)
IP rating IEC60529: IP64
Housing material PBT
Linear Beam Photoelectric Sensors <0.5ms Response Time NPN Output Type Diffuse Reflection 2 Linear Beam Photoelectric Sensors <0.5ms Response Time NPN Output Type Diffuse Reflection 3
Industrial Applications

Our Photoelectric Sensors are ideal for precision measurement and detection across multiple industries, featuring through-beam sensing and NPN/PNP output options with 0.1mm to 10mm detection ranges.

Medical and Precision Instrument Applications
  • Syringe and Vial Dimension Inspection: Measures heights and shapes of pharmaceutical containers
  • Micro-assembly Tolerance Control: Ensures uniform assembly of tiny mechanical components
  • Plastic Molded Part Inspection: Detects warping in medical-grade components
Linear Beam Photoelectric Sensors <0.5ms Response Time NPN Output Type Diffuse Reflection 4 Linear Beam Photoelectric Sensors <0.5ms Response Time NPN Output Type Diffuse Reflection 5 Linear Beam Photoelectric Sensors <0.5ms Response Time NPN Output Type Diffuse Reflection 6 Linear Beam Photoelectric Sensors <0.5ms Response Time NPN Output Type Diffuse Reflection 7
