M8 Connector IEC 61076-2-104 Field-wireable Assembly 3-pin A-code Straight IP67 Male

Brand Name:	KRONZ
Model Number:	H0803M-0
MOQ:	50
Packaging Details:	Polybag with paper box
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Document:

Product Brochure PDF

Standard:

IEC 61076-2-104

Contact Nut Material:

Brass,nickle-plated

Seal Material:

FPM/FKM

Ambient Temperature:

-25°C To +85°C

Mating Cycles:

>100

Ip Rating:

IP67

Connector Type:

M8

Number Of Pins:

3

Supply Ability:

100000 pcs per month

Highlight:

M8 Connector IP67

,

Male M8 Connector 3pin

,

Field Assembly Connector IEC 61076-2-104

Product Description

M8 Connector IEC 61076-2-104 Field-wireable Assembly 3-pin A-code Straight IP67 Male

Product Attributes

Standard	IEC 61076-2-104
Contact nut material	Brass, nickle-plated
Seal material	FPM/FKM
Ambient Temperature	-25°C to +85°C
Mating cycles	>100
IP Rating	IP67
Connector Type	M8
Number Of Pins	3

Product Description

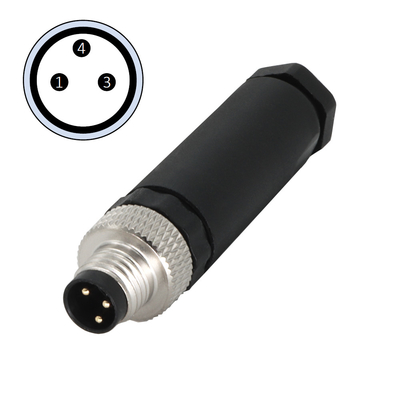

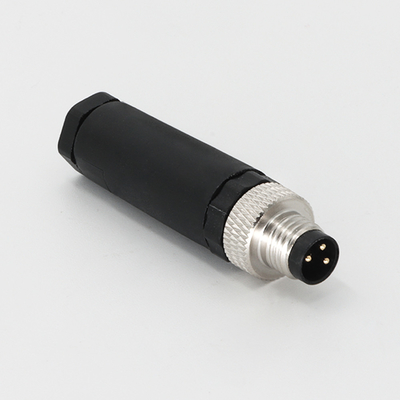

M8 Connector IEC 61076-2-104 Field-wireable Assembly Connector 3-pin A-coding Straight IP67 Male

M8 Connectors, Field-Wireable Assembly, Male, Straight, 3-pin, A-coding

M8 Connector IEC 61076-2-104 Field-wireable Assembly 3-pin A-code Straight IP67 Male 0

Technical Data

Standard	IEC 61076-2-104
Contact nut material	Brass, nickle-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	PBT/PA, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP67

Pin assignment	Connection method	Coding	Rated current	Voltage	Cable outlet	External cable diameter	Part No.
	Screw	A	3A	60V	Straight	3.5-5mm	H0803M-0
