M12 Angled Circular Connector 4 Pin Male Full Metal Field-assembled Contact

50 pieces
MOQ
Negotiable
Price
M12 Angled Circular Connector 4 Pin Male Full Metal Field-assembled Contact
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: M12 Metal Connector
Type: Field-assembled Connector
IP Rate: IP67
Connection Method: Screw Connection
Coding: A
Rated Current: 4A
Ambient Temperature: -25~+85℃
Cable Outlet: Straight
Pin: 4
Highlight:

Angled M12 Circular Connector

,

M12 Circular Connector 4 Pin

,

Field Assembled M12 Male Connector
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: H1204MAV-0
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description

M12 Angled Circular Connector 4 Pin Male Full Metal Field-assembled Contact



Product Description



In transportation systems, such as trains and buses, M12 connectors are used for control and communication systems. Their ability to withstand harsh conditions and ensure reliable performance is crucial in these applications.

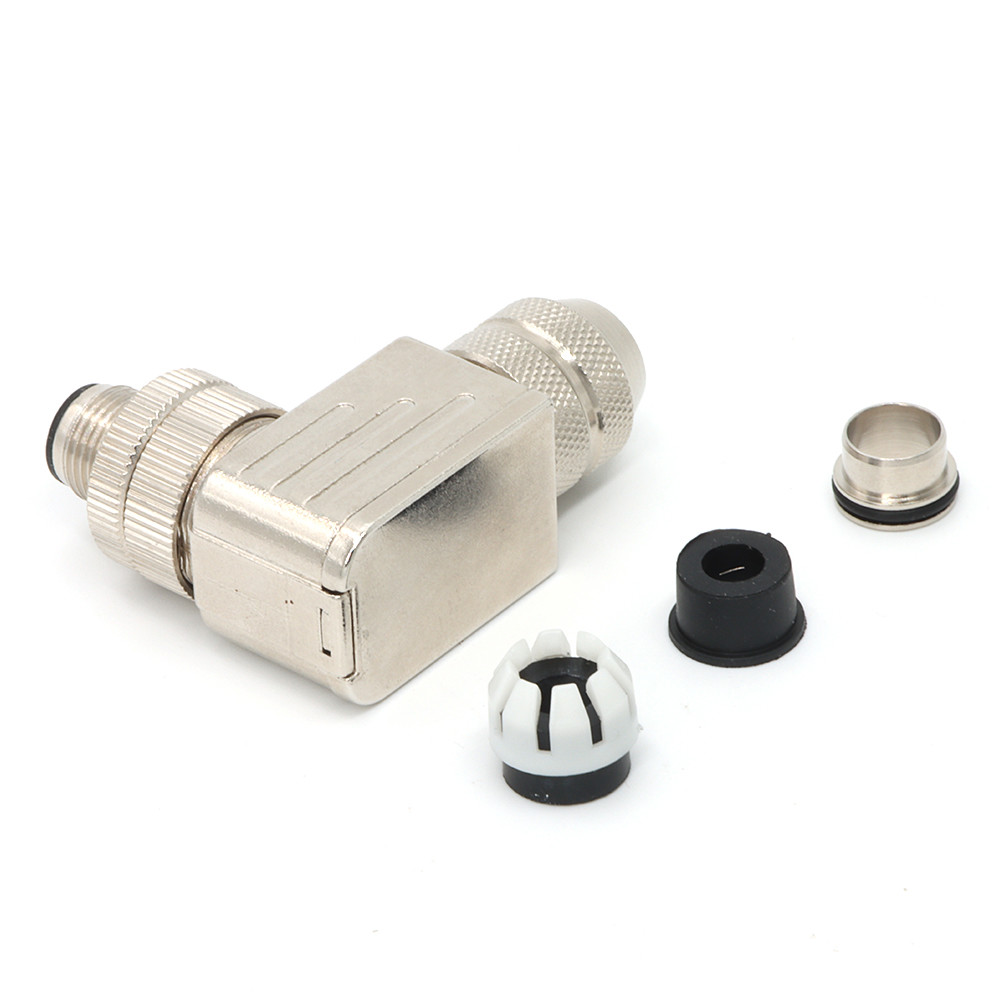

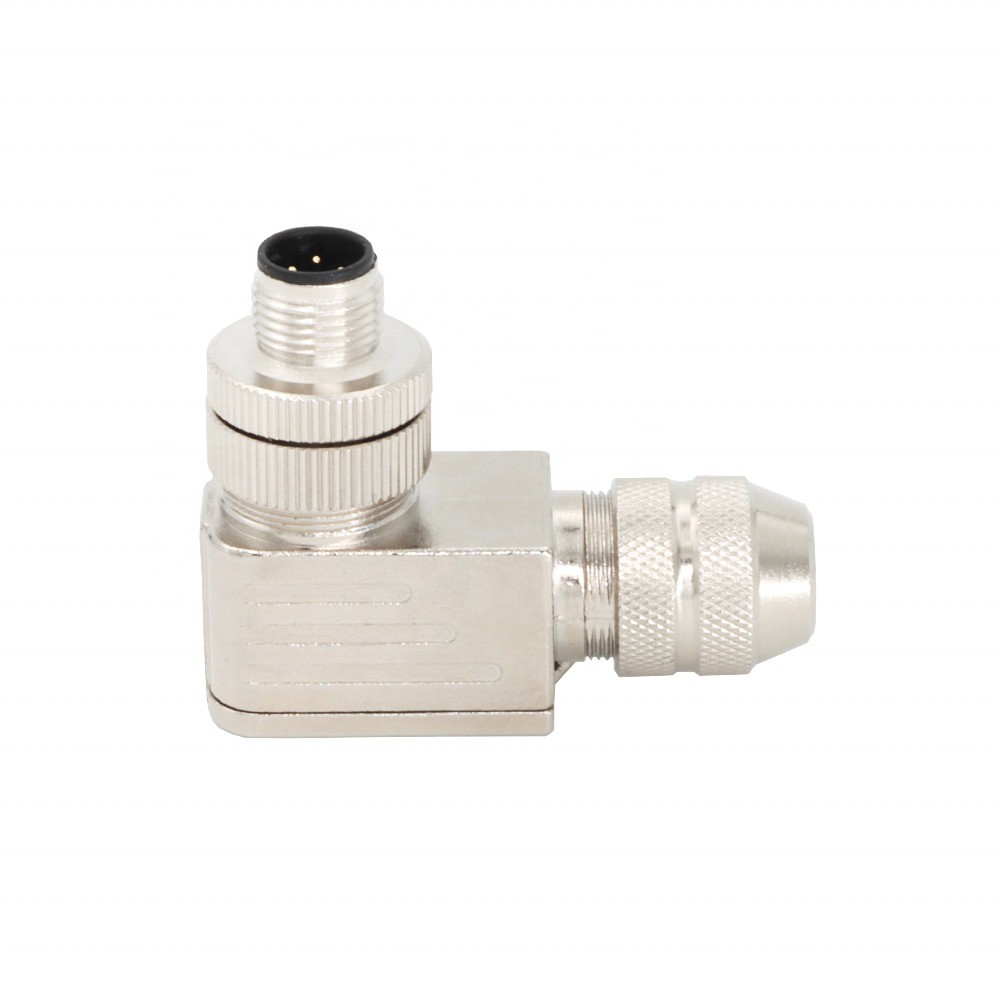

M12 Angled Circular Connector 4 Pin Male Full Metal Field-assembled Contact 0

M12 Angled Circular Connector 4 Pin Male Full Metal Field-assembled Contact 1

M12 Angled Circular Connector 4 Pin Male Full Metal Field-assembled Contact 2

Technical Data



Standard IEC 61076-2-101
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material Zinc alloy, nickle-plated
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67



Pin assignment Connection method Coding Rated current Voltage Cable outlet External cable diameter Model No.
M12 Angled Circular Connector 4 Pin Male Full Metal Field-assembled Contact 3 Screw connection A 4A 250V Angled 4-8mm H1204MAV-0



Company Profile



M12 Angled Circular Connector 4 Pin Male Full Metal Field-assembled Contact 4

M12 Angled Circular Connector 4 Pin Male Full Metal Field-assembled Contact 5

M12 Angled Circular Connector 4 Pin Male Full Metal Field-assembled Contact 6

M12 Angled Circular Connector 4 Pin Male Full Metal Field-assembled Contact 7
