Home /Products/M12 Connector/Unshielded M12 5 Pin Female Connector Pre Assembled 5M Cable IP67 Straight PVC

Unshielded M12 5 Pin Female Connector Pre Assembled 5M Cable IP67 Straight PVC

50 pieces
MOQ
Negotiable
Price
Unshielded M12 5 Pin Female Connector Pre Assembled 5M Cable IP67 Straight PVC
Features Gallery Product Description Request A Quote
Features
Specifications
Description: M12 Pre-assembled Cable Connector
Length: 2M/5M/10M
Housing Material: TPU,black
Standard: IEC 61076-2-101
Contact Nut Material: Brass, Nickle-plated
Contact Resistance: ≤ 5mΩ
Ambient Temperature: -25~+85℃
Wire Gauge: 5×0.34 (5×22AWG) PVC, Black
Highlight:

Unshielded M12 5 Pin Female Connector

,

IP67 M12 5 Pin Female Connector

,

5M Cable M12 Female Connector
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: M1205F-5/P00R
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description

M12 Connector Pre-assembled 5 M Cable Unshielded 5 Pin IP67 Female Straight PVC



Product Description

Industrial Automation: M12 connectors are extensively used in industrial automation systems for connecting sensors, actuators, and control devices. Their robust design ensures reliable connections in environments with high vibration, dust, and moisture.

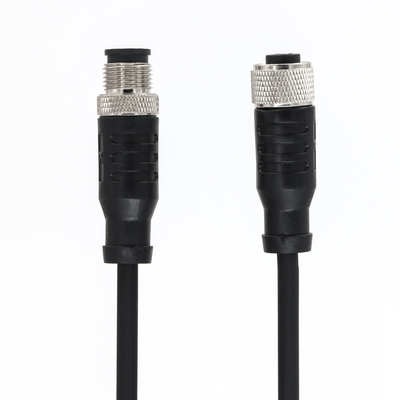

Unshielded M12 5 Pin Female Connector Pre Assembled 5M Cable IP67 Straight PVC 0

Technical Data

Standard IEC 61076-2-101
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67



Pin assignment Wire color Coding Rated current Voltage Wire gauge Cable outlet Length Model No.

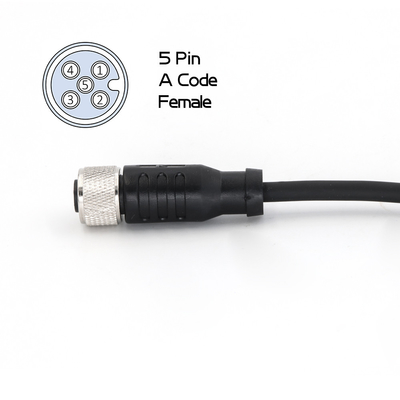

Unshielded M12 5 Pin Female Connector Pre Assembled 5M Cable IP67 Straight PVC 1

1=BN

2=WH
3=BU
4=BK

5=GY

 A 4A 60V 5×0.34
(5×22AWG)
PVC, black		 Straight 2M M1205F-2/P00R
5M M1205F-5/P00R
10M M1205F-10/P00R
