M12 4 Pin Connectors 2M Pre-Assembled Cable Male Straight PVC CE Unshielded
  • Name
  • Name

M12 4 Pin Connectors 2M Pre-Assembled Cable Male Straight PVC CE Unshielded

Brand Name: KRONZ
Model Number: M1204M-2/P00R
MOQ: 50 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union,
Detail Information
Product Description
Ratings & Reviews
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Description:
M12 Pre-assembled Connectors
Contact Carrier Material:
PA, Black
Wire Color:
1=BN 2=WH 3=BU 4=BK
Seal Material:
FPM/FKM
Voltage:
250V
Wire Gauge:
4×0.34 (4×22AWG) PVC, Black
Length:
2m
Shielded:
No
Supply Ability:
100000 pieces per month
Highlight:

M12 4 Pin Connectors

,

2M Cable M12 4 Pin Connectors

,

Unshielded M12 Male Connectors

Product Description
M12 4 Pin Connectors 2M Pre-Assembled Cable Male Straight PVC CE Unshielded
Product Attributes
Attribute Value
Description M12 Pre-assembled Connectors
Contact carrier material PA, black
Wire Color 1=BN 2=WH 3=BU 4=BK
Seal material FPM/FKM
Voltage 250V
Wire Gauge 4×0.34 (4×22AWG) PVC, black
Length 2m
Shielded No
Product Overview

M12 connectors feature high IP ratings (IP67, IP68, and IP69K), offering superior protection against dust and water ingress. These rugged connectors are ideal for harsh industrial environments and outdoor applications.

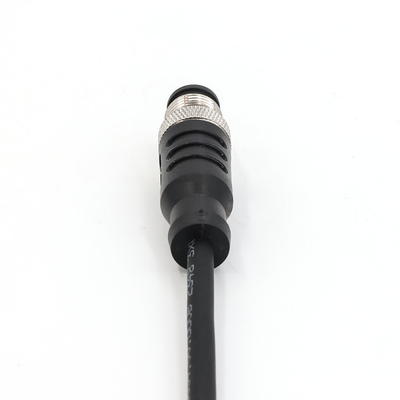

M12 4 Pin Connector product image
Technical Specifications
Standard: IEC 61076-2-101
Contact nut material: Brass, nickle-plated
Contact surface material: Brass, gold-plated
Contact carrier material: PA, black
Housing material: TPU, black
Seal material: FPM/FKM
Insulation resistance: ≥100MΩ
Contact resistance: ≤5mΩ
Pollution degree: 3
Ambient temperature: -25~+85℃
Mating cycles: >100
Degree of protection: IP67
Pin Configuration
M12 4 Pin Connector pin assignment diagram
Pin assignment Wire color Coding Rated current Voltage Wire gauge Cable outlet Length Model No.
See diagram 1=BN 2=WH 3=BU 4=BK A 4A 250V 4×0.34 (4×22AWG) PVC, black Straight 2M M1204M-2/P00R
              5M M1204M-5/P00R
              10M M1204M-10/P00R
