5 Pin M12 Connectors Pre Assembled 5M Cable Male Straight PVC IEC 61076-2-101
  • Name
  • Name

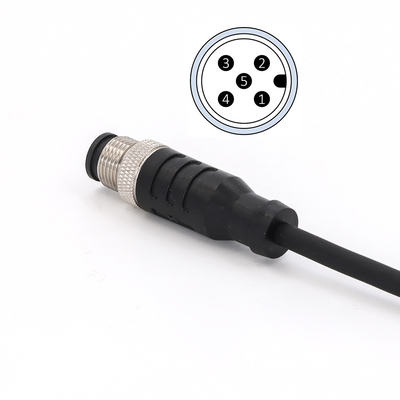

5 Pin M12 Connectors Pre Assembled 5M Cable Male Straight PVC IEC 61076-2-101

Brand Name: KRONZ
Model Number: M1205M-5/P00R
MOQ: 50 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Description:
M12 Pre-assembled Connectors
Housing Material:
TPU, Black
Wire Color:
1=BN 2=WH 3=BU 4=BK 5=GY
Rated Current:
4A
Voltage:
60V
Wire Gauge:
5×0.34 (5×22AWG) PVC, Black
Length:
5m
Shielded:
No
Supply Ability:
100000 pieces per month
Highlight:

5 Pin M12 Connectors

,

5M Cable M12 Connectors

,

PVC M12 Male Connectors

Product Description
5 Pin M12 Connectors Pre Assembled 5M Cable Male Straight PVC IEC 61076-2-101
Product Attributes
Attribute Value
Description M12 Pre-assembled Connectors
Housing material TPU, black
Wire Color 1=BN 2=WH 3=BU 4=BK 5=GY
Rated Current 4A
Voltage 60V
Wire Gauge 5×0.34 (5×22AWG) PVC, black
Length 5m
Shielded No
Product Description

The threaded locking mechanism of M12 connectors ensures a secure connection that is easy to install and remove. This feature reduces installation time and ensures reliable performance.

5 Pin M12 Connectors Pre Assembled 5M Cable Male Straight PVC IEC 61076-2-101 0
Technical Specifications
Standard: IEC 61076-2-101
Contact nut material: Brass, nickle-plated
Contact surface material: Brass, gold-plated
Contact carrier material: PA, black
Housing material: TPU, black
Seal material: FPM/FKM
Insulation resistance: ≥100MΩ
Contact resistance: ≤5mΩ
Pollution degree: 3
Ambient temperature: -25~+85℃
Mating cycles: >100
Degree of protection: IP67
Pin Configuration
5 Pin M12 Connectors Pre Assembled 5M Cable Male Straight PVC IEC 61076-2-101 1
Pin assignment Wire color Coding Rated current Voltage Wire gauge Cable outlet Length Model No.
See diagram 1=BN 2=WH 3=BU 4=BK 5=GY A 4A 60V 5×0.34 (5×22AWG) PVC, black Straight 2M, 5M, 10M M1205M-2/P00R, M1205M-5/P00R, M1205M-10/P00R
