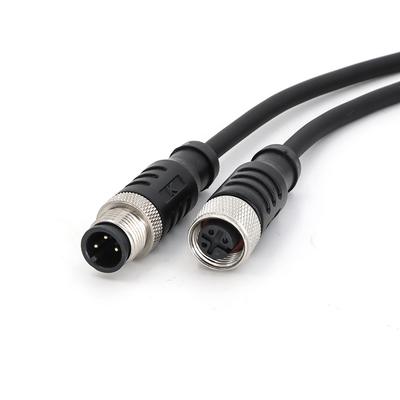

Pre Assembled Cable M12 Connector 4 Pin IP67 Straight PVC IEC 61076-2-101 Black

Brand Name:	KRONZ
Model Number:	M1204F-2/P00R
MOQ:	50 pieces
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Product Brochure PDF

Description:

M12 Connector With Molded Cable

Type:

Contact

Wire Color:

1=BN,3=BU,4=BK

Coding:

Voltage:

250V

Rated Current:

Wire Gauge:

3×0.34 (3×22AWG) PVC, Black

Cable Outlet:

Straight

Supply Ability:

100000 pieces per month

Highlight:

IP67 M12 Connector 4 Pin

PVC M12 Connector 4 Pin

Pre Assembled Cable Straight M12 Connector

Product Description

Pre Assembled Cable M12 Connector 4 Pin IP67 Straight PVC IEC 61076-2-101 Black

Product Attributes

Attribute	Value
Description	M12 Connector with Molded Cable
Type	Contact
Wire Color	1=BN,3=BU,4=BK
Coding	A
Voltage	250V
Rated Current	4A
Wire Gauge	3×0.34 (3×22AWG) PVC, black
Cable Outlet	Straight

Product Description

M12 Connector Pre-assembled Cable 4 Pin IP67 Straight PVC IEC 61076-2-101 Black

In robotic systems, M12 connectors are used for signal and power connections. Their compact size and secure locking mechanism make them ideal for applications requiring reliable and stable connections.

Technical Data

Standard	IEC 61076-2-101
Contact nut material	Brass, nickle-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	TPU, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP67

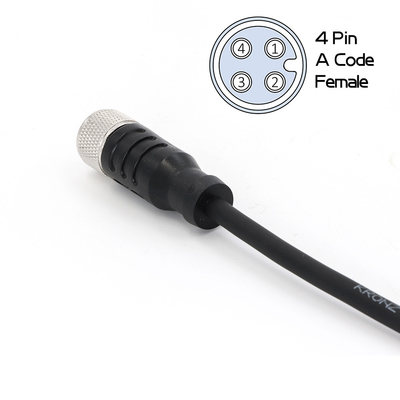

Pin Assignment

Wire color	Coding	Rated current	Voltage	Wire gauge	Cable outlet	Length	Model No.
1=BN 2=WH 3=BU 4=BK	A	4A	250V	4×0.34 (4×22AWG) PVC, black	Straight	2M	M1204F-2/P00R
						5M	M1204F-5/P00R
						10M	M1204F-10/P00R
