Angled Circular M12 Connector Female 5 Pin Pre Assembled Cable Connectors

50 pieces
MOQ
Negotiable
Price
Angled Circular M12 Connector Female 5 Pin Pre Assembled Cable Connectors
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: M12 Pre-Assembled Cable Connector
Color: Black
Material: Alloy
IP Rate: IP67
Endurance(shell): >100 Cycles
Insulation Resistance: ≥ 100MΩ
Contact Resistance: ≤ 5mΩ
Ambient Temperature: -25~+85℃
Highlight:

Circular M12 Connector Female

,

Angled 5 Pin M12 Connector

,

M12 Pre Assembled Cable Connectors
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: M1205FA-2/POOR
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description
Angled Circular M12 Connector Female 5 Pin Pre Assembled Cable Connectors
Product Specifications
Attribute Value
Product name M12 Pre-Assembled Cable Connector
Color Black
Material Alloy
IP rate IP67
Endurance(shell) >100 cycles
Insulation Resistance ≥ 100MΩ
Contact resistance ≤ 5mΩ
Ambient temperature -25~+85℃
Product Description

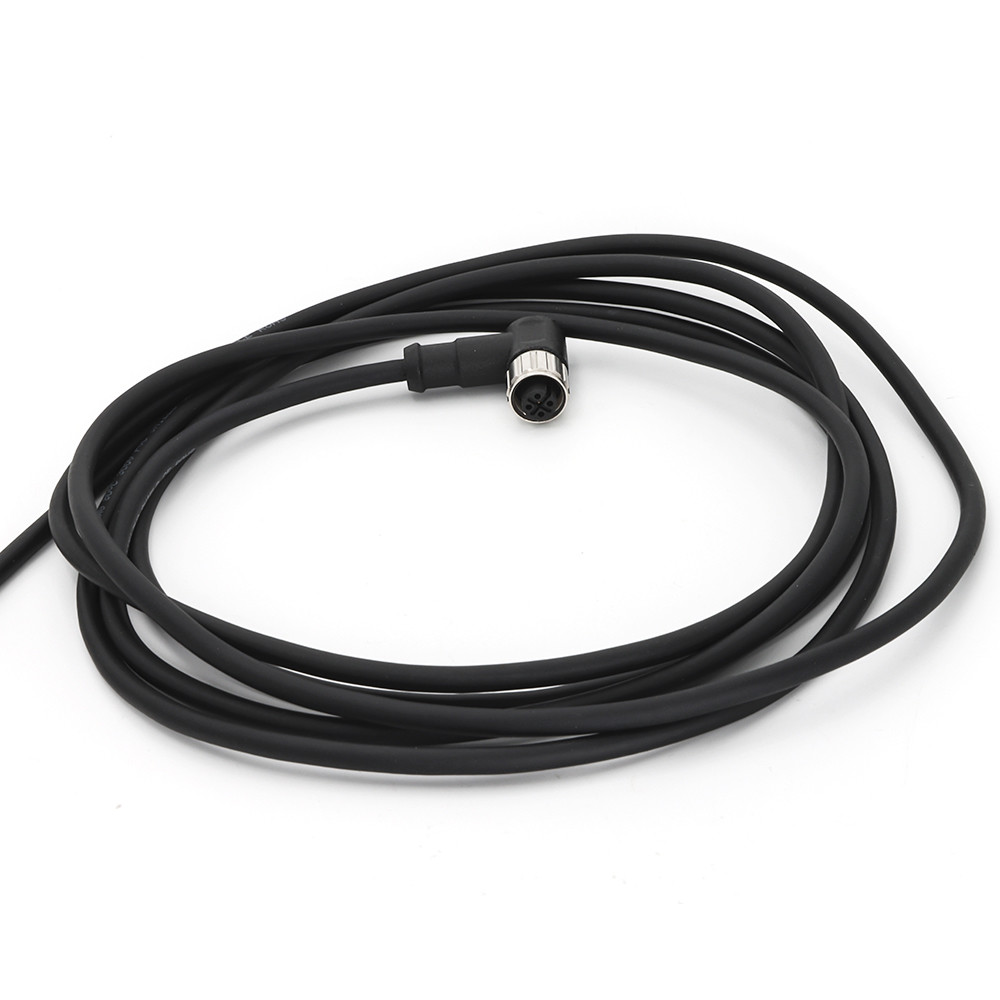

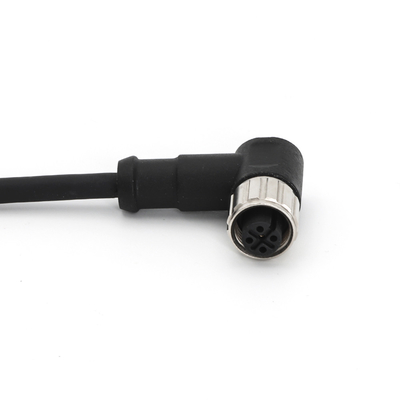

M12 Angled Circular Connector Female 5 Pin Pre-assembled Cable Connectors

M12 connectors are available as molded cable assemblies, offering pre-configured solutions with different cable lengths and specifications. Cable specifications and sizes can be customized according to customer requirements.

Angled Circular M12 Connector Female 5 Pin Pre Assembled Cable Connectors 0 Angled Circular M12 Connector Female 5 Pin Pre Assembled Cable Connectors 1 Angled Circular M12 Connector Female 5 Pin Pre Assembled Cable Connectors 2
Technical Data
Standard IEC 61076-2-101
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67
Pin Assignment & Specifications
Pin assignment Connection method Coding Rated current Voltage Wire gauge Cable outlet Length Model No.
Angled Circular M12 Connector Female 5 Pin Pre Assembled Cable Connectors 3 1=BN
2=WH
3=BU
4=BK
5=GY		 A 4A 60V 5×0.34
(5×22AWG)
PVC, black		 Angled 2M
5M
10M		 M1205FA-2/POOR
M1205FA-5/POOR
M1205FA-10/POOR
