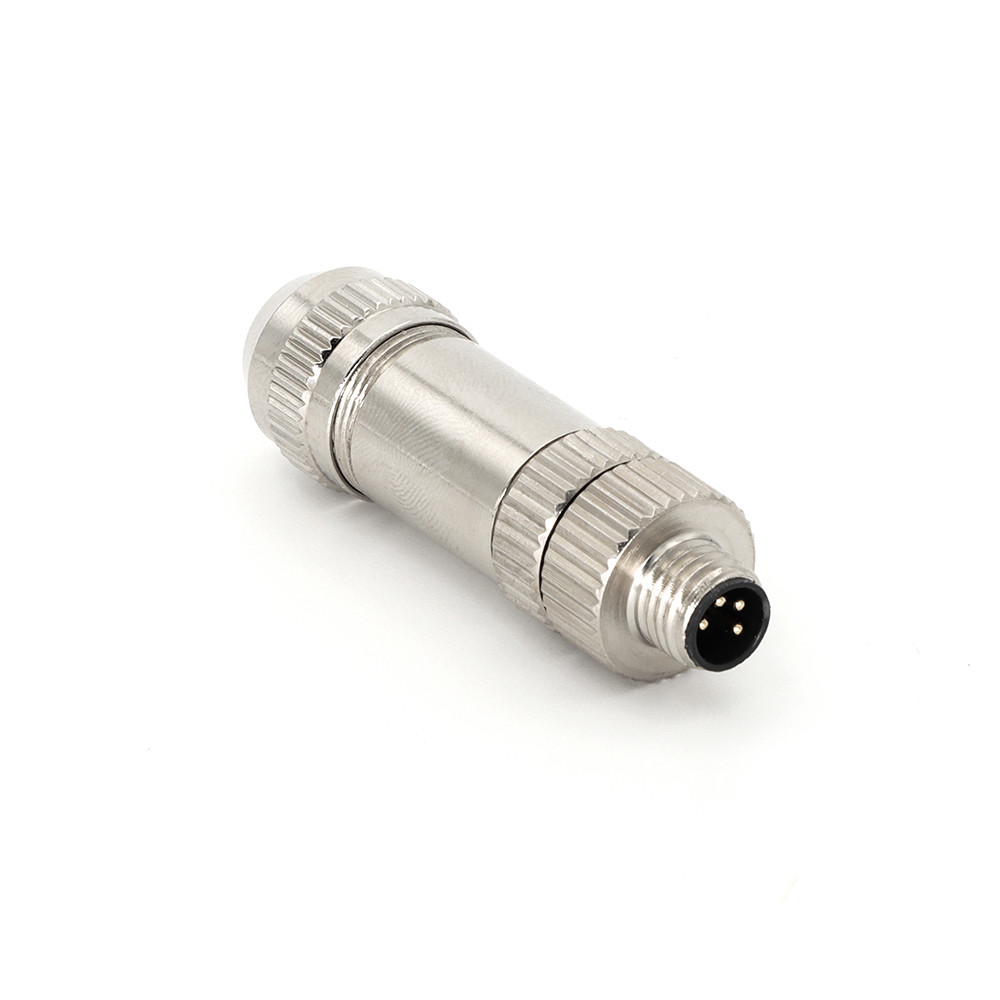

Screw Connection M8 Connector 4 Pin Straight Male A Code Full Metal

Brand Name:	KRONZ
Model Number:	H0804MV-0
MOQ:	50 pieces
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Product Brochure PDF

Material:

Brass,gold-plated

Product Name:

M8 Metal Connector

Color:

Siliver

IP Rate:

IP67

Contact Resistance:

≤ 5mΩ

Ambient Temperature:

-25~+85℃

Connection Method:

Screw Connection

Supply Ability:

100000 pieces per month

Highlight:

Screw Connection M8 Connector

Male M8 Connector 4 Pin

Metal M8 4 Pin Connector

Product Description

Screw Connection M8 Connector 4 Pin Straight Male A Code Full Metal

Product Specifications

Attribute	Value
Material	Brass, gold-plated
Product Name	M8 Metal Connector
Color	Silver
IP rate	IP67
Contact Resistance	≤ 5mΩ
Ambient Temperature	-25~+85℃
Connection Method	Screw Connection

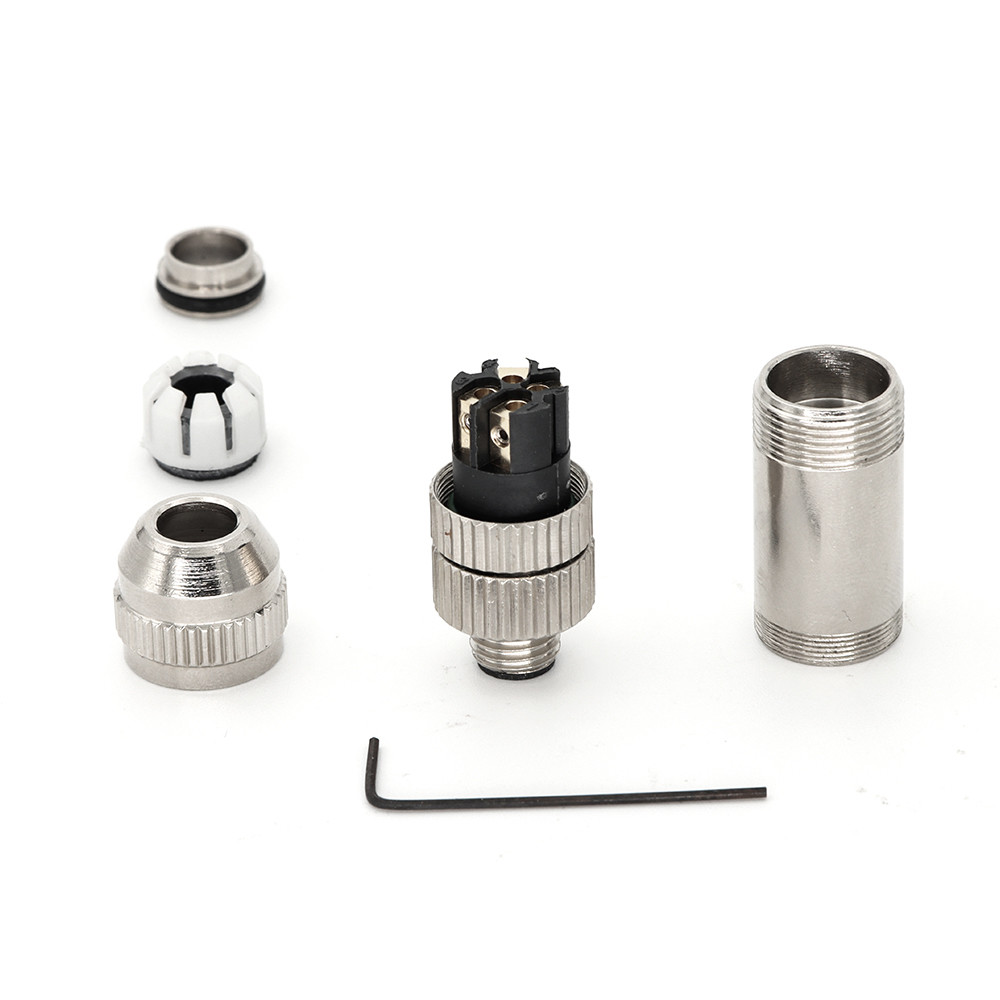

M8 Field-wirable Assembly Connector Straight Male 4 Pin A Code Full Metal

An M8 connector is a circular connector with an 8-millimeter diameter thread, designed for reliable connections in compact and harsh industrial environments. They are commonly used for connecting sensors, actuators, and other devices in automation and control systems.

Technical Data

Standard	IEC 61076-2-104
Contact nut material	Brass, nickel-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	Brass, nickel-plated
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP67

Pin Assignment & Connection Details

Connection method	Coding	Rated current	Voltage	Cable outlet	External cable diameter	Model No.
Screw connection	A	3A	60V	Straight	3.5-5mm	H0804MV-0
