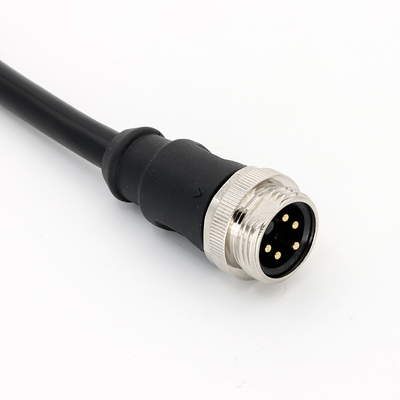

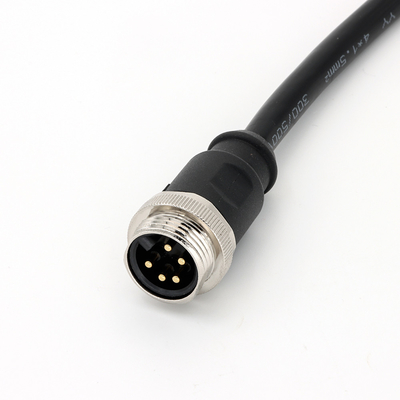

Pre Assembled Cable 7/8" 5 Pin Connector Male Straight Black PVC A Code

Brand Name:	KRONZ
Model Number:	M7805M-2/P00R
MOQ:	50 pieces
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Product Brochure PDF

Product Name:

7/8" Connector With Molded Cable

Type:

Pre-assembled Cable Connector

Color:

Black

Gender:

Male

IP Rate:

IP67

Insulation Resistance:

≥ 100MΩ

Contact Resistance:

≤ 5mΩ

Ambient Temperature:

-25~+85℃

Supply Ability:

100000 pieces per month

Highlight:

Male 7/8" 5 Pin Connector

Straight 7/8" 5 Pin Connector

PVC 7/8" 5 Pin Connector

Product Description

Pre Assembled Cable 7/8" 5 Pin Connector Male Straight Black PVC A Code

Product Attributes

Attribute	Value
Product name	7/8" Connector with Molded Cable
Type	Pre-assembled Cable Connector
Color	Black
Gender	Male
IP rate	IP67
Insulation Resistance	≥ 100MΩ
Contact resistance	≤ 5mΩ
Ambient temperature	-25~+85℃

Product Description

7/8" Connector Pre-assembled Cable 5 Pin Male Straight Black PVC A Code

7/8" pre-assembled cable connector is a highly flexible connection technology that is widely used in production, factories and automated warehousing applications, such as the packaging and food industries.

Technical Specifications

Specification	Details
Thread type	7/8"-16UN
Contact nut material	Brass, nickel-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	TPU, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP67

Pin Configuration & Specifications

Pin assignment	Connection method	Coding	Rated current	Voltage	Wire gauge	Cable outlet	Length	Model No.
1 = BK 2 = BU 3 = GN/YE 4 = BN 5 = WH	A	8A	600V	5×0.15 (5×16AWG) PVC, black	Straight	2M 5M 10M	M7805M-2/P00R M7805M-5/P00R M7805M-10/P00R

*Cable length: 2/5/10m, other cable lengths are available on request! Freely selectable cable material (P00R: black PVC, P01R: black PUR)
