Pre Molded Cable 7/8" Connector Automation 7/8"-16UN 4 Pin Male Waterproof

Brand Name:	KRONZ
Model Number:	M7804M-2/P00R
MOQ:	50 pieces
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Product Brochure PDF

Name:

7/8" 4 Pin Connector

Type:

Straight

Pin:

Application:

Industrial Automation

Gender:

Male

Country Of Origin:

China

Supply Ability:

100000 pieces per month

Highlight:

Pre Molded Cable 7/8" Connector

Waterproof Automation 7/8" Connector

7/8"-16UN 4 Pin Male Connector

Product Description

Pre Molded Cable 7/8" Connector Automation 7/8"-16UN 4 Pin Male Waterproof

Product Attributes

Attribute	Value
Name	7/8" 4 Pin Connector
Type	Straight
Pin	4
Application	Industrial Automation
Gender	Male
Country of Origin	China

Product Description

7/8" Connector Automation 7/8"-16UN 4 Pin Male Waterproof Cable Pre-molded

In the connection lines of industrial robots, the 7/8" field connector plays a key role. It can adapt to the complex movement and working environment of the robot, ensure the stable supply of power and signals, and enable the robot to accurately perform various actions and tasks. For example, when a handling robot moves quickly and grabs heavy objects, the connector can ensure that no circuit failure occurs due to vibration or pulling.

Technical Specifications

Specification	Value
Thread type	7/8"-16UN
Contact nut material	Brass, nickel-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	TPU, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP67

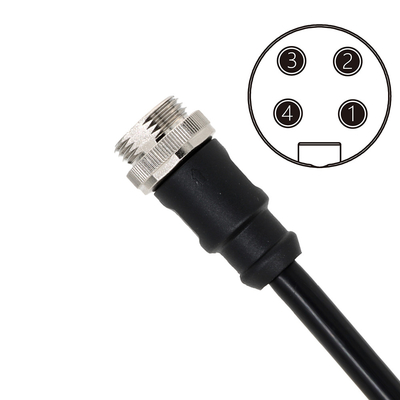

Pin Configuration & Specifications

Pin assignment	Connection method	Coding	Rated current	Voltage	Wire gauge	Cable outlet	Length	Model No.
1 = BK 2 = BU 3 = BN 4 = WH	A	8A	600V	4×0.15 (4×16AWG)	PVC, black	Straight	2M 5M 10M	M7804M-2/P00R M7804M-5/P00R M7804M-10/P00R

Note: Cable length: 2/5/10m, other cable lengths are available on request! Freely selectable cable material (P00R: black PVC, P01R: black PUR).
