7/8" Wireable Field Assembly Connector 5 Pin Female Screw Locking

Brand Name:	KRONZ
Model Number:	H7805F-9/R
MOQ:	50 pieces
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Product Brochure PDF

Contact Nut Material:

Zinc Alloy, Nickle-plated

Contact Carrier Material:

PA, Black

Housing Material:

PBT/PA, Black

Seal Material:

FPM/FKM

Insulation Resistance:

≥ 100MΩ

Contact Resistance:

≤ 5mΩ

Ambient Temperature:

-25~+85℃

Connector Type:

Screw Locking

Supply Ability:

100000 pieces per month

Highlight:

7/8" Wireable Field Assembly Connector

7/8" Field Assembly Connector 5 Pin

Screw Locking 7/8" Female Connector

Product Description

7/8" Wireable Field Assembly Connector 5 Pin Female Screw Locking

Product Attributes

Attribute	Value
Contact nut material	Zinc alloy, nickle-plated
Contact carrier material	PA, black
Housing material	PBT/PA, black
Seal material	FPM/FKM
Insulation Resistance	≥ 100MΩ
Contact resistance	≤ 5mΩ
Ambient temperature	-25~+85℃
Connector type	Screw Locking

Product Description

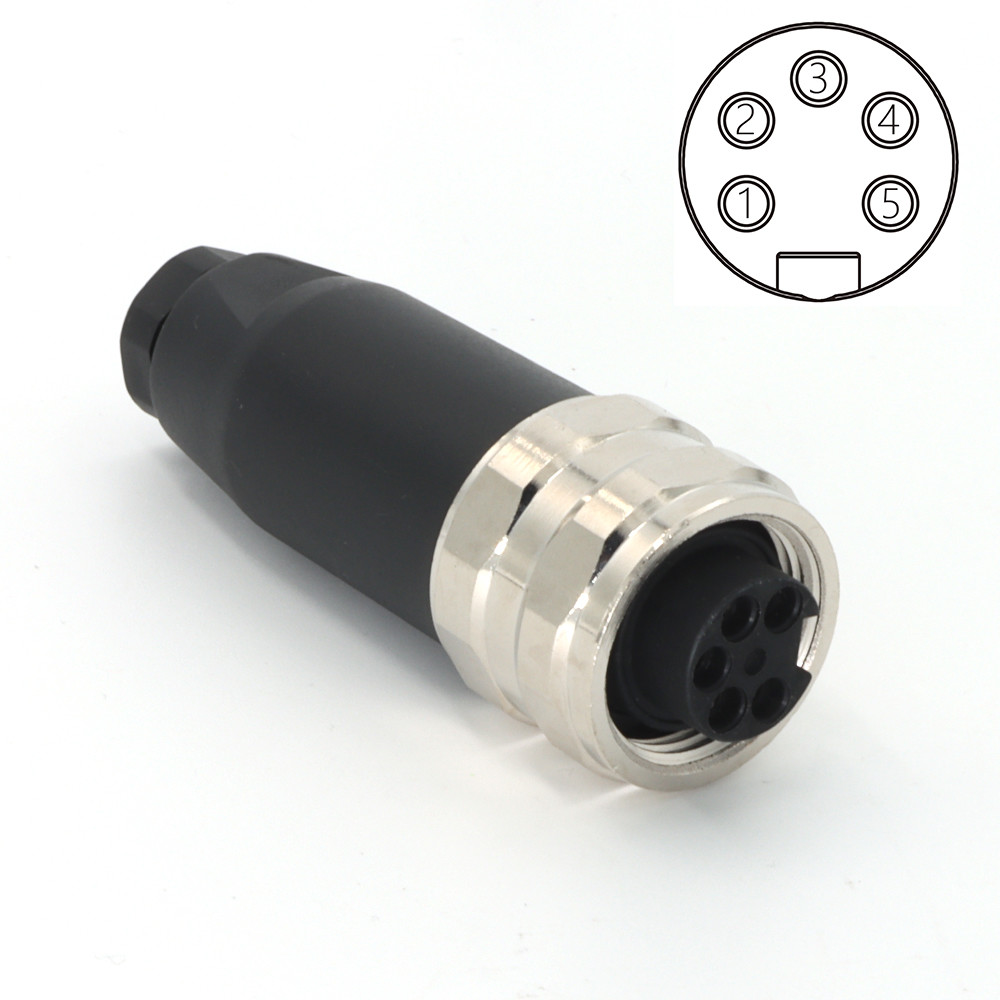

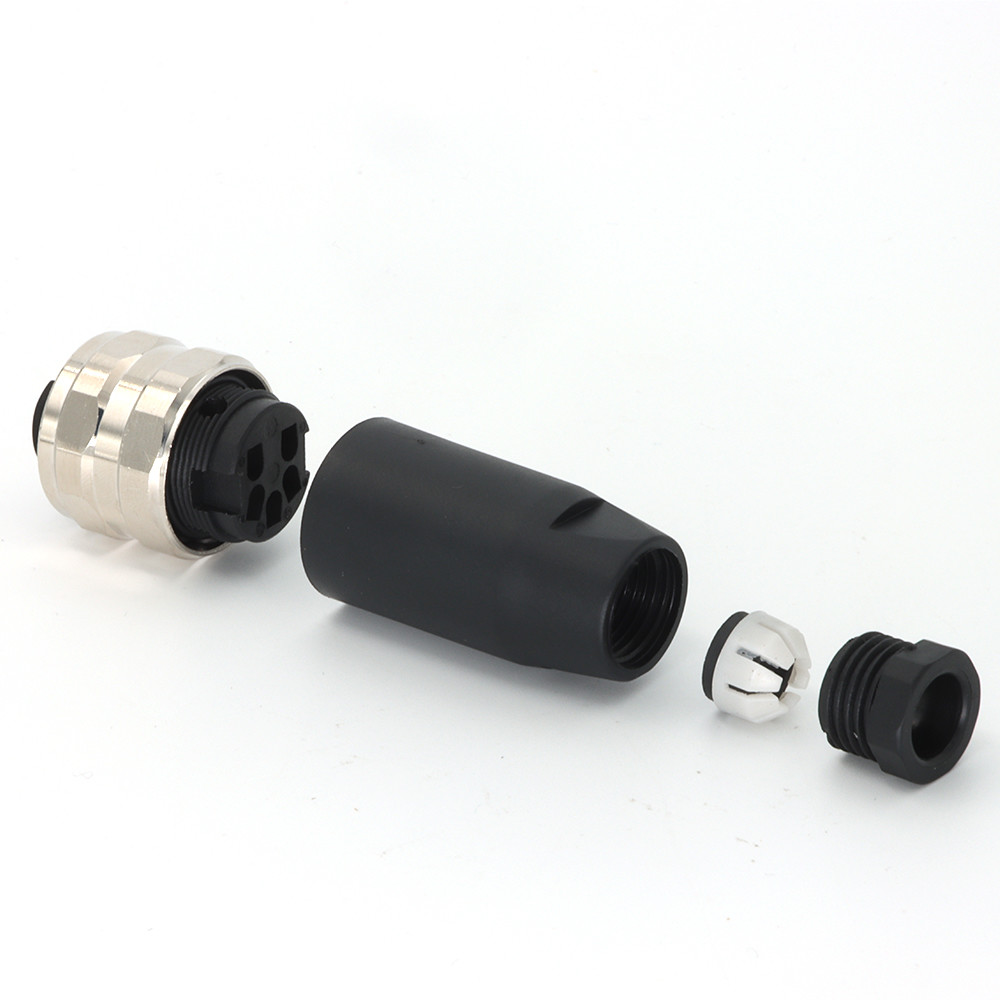

7/8" Field-wireable Assembly Connector 5 Pin Female Screw Locking

The 7/8" field-wireable assembly connector features 4 or 5 wire receptacles in a 7/8" diameter housing. Designed for demanding applications requiring high electrical performance and reliable connections, this connector is ideal for industrial automation and machinery manufacturing environments.

Technical Data

Thread type	7/8"-16UN
Contact nut material	Zinc alloy, nickle-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	PBT/PA, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP67

Pin assignment	Connection method	Coding	Rated current	Voltage	Cable outlet	External cable diameter	Model No.
	Screw connection	A	8A	600V	Straight	6-8mm	H7805F-9/R
