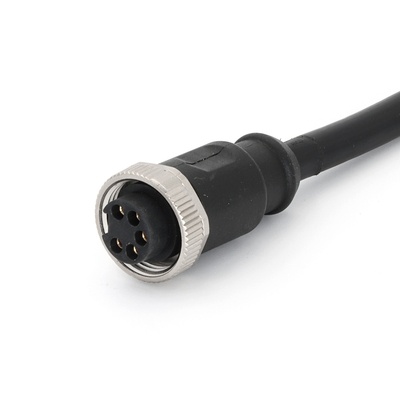

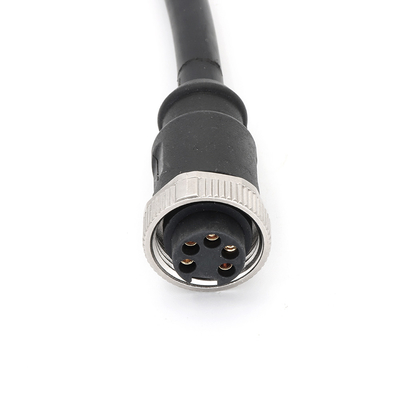

5 Pin Female 7/8" Connectors with Molded Cable Straight PVC Black Unshielded

50 pieces
MOQ
Negotiable
Price
5 Pin Female 7/8" Connectors with Molded Cable Straight PVC Black Unshielded
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Pre-assembled Cable
Product Name: 7/8" Connector With Molded Cable
Color: Black
Material: Brass, Gold-plated
IP Rate: IP67
Wire Gauge: 3 X 0.15 ( 3 X 16 AWG ) PVC,black
Coding: A
Shielded: No
Highlight:

Female 7/8" Connectors

,

5 Pin 7/8" Connectors

,

Unshielded 7/8" 5 Pin Connectors
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: M7805F-2/P00R
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description

7/8" Connectors with Molded Cable 5 Pin Female Straight PVC Black Unshielded



Product Description

The 7/8" pre-assembled cable connector is a specific connector type that has 4 or 5 wire receptacles, and the connector is 7/8" in diameter. ‌This kind of connector is usually used in situations where high electrical performance and reliable connection are required, ‌such as industrial automation, ‌machinery manufacturing and other fields.

5 Pin Female 7/8" Connectors with Molded Cable Straight PVC Black Unshielded 0



Technical Data

Thread type 7/8”-16UN
Contact nut material Brass, nickel-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67



Pin assignment Connection method Coding Rated current Voltage Wire gauge Cable outlet Length Model No.
5 Pin Female 7/8" Connectors with Molded Cable Straight PVC Black Unshielded 1 1 = BK
2 = BU
3 = GN/YE
4 = BN
5 = WH		 A 8A 600V 5×0.15
(5×16AWG)
PVC, black		 Straight 2M M7805F-2/P00R
5M M7805F-5/P00R
10M M7805F-10/P00R

*Cable length:2/5/10m,other cable lengths are available on request! Freely selectable cable material(P00R:black,PVC ,P01R:black,PUR)
