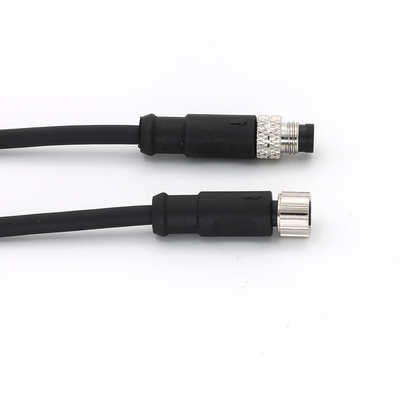

M8 Shielded Cable Connectors Pre Assembled Straight Male 3 Pin A Code PVC
  • Name
  • Name

M8 Shielded Cable Connectors Pre Assembled Straight Male 3 Pin A Code PVC

Brand Name: KRONZ
Model Number: M0803M-2/SOOR
MOQ: 50 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Cable:
Shielded
Product Name:
M8 Pre-Assembled Cable Connector
Standard:
IEC 61076-2-104
Contact Carrier Material:
PA, Black
Seal Material:
FPM/FKM
Ambient Temperature:
-25~+85℃
Endurance(shell):
>100 Cycles
Degree Of Protection:
IP67
Supply Ability:
100000 pieces per month
Highlight:

M8 Shielded Cable Connectors

,

M8 PVC Shielded Cable Connectors

,

M8 Male Shielded Cable Connectors

Product Description
M8 Shielded Cable Connectors Pre Assembled Straight Male 3 Pin A Code PVC
Product Attributes
Attribute Value
Cable Shielded
Product name M8 Pre-Assembled Cable Connector
Standard IEC 61076-2-104
Contact carrier material PA, black
Seal material FPM/FKM
Ambient temperature -25~+85℃
Endurance(shell) >100 cycles
Degree of protection IP67
Product Description
M8 Shielded Cable Connectors Pre-assembled Straight Male 3 Pin A Code PVC

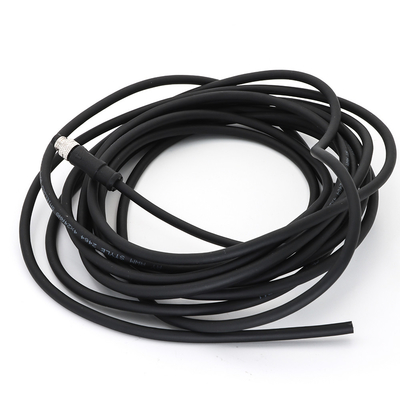

M8 Pre-assembled Connector with customized cable length. For applications requiring additional protection against electromagnetic interference (EMI), shielded M8 connectors are available. Unshielded versions are used in less demanding environments.
M8 Shielded Cable Connectors Pre Assembled Straight Male 3 Pin A Code PVC 0
Technical Data
Specification Value
Standard IEC 61076-2-104
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67
Pin Assignment & Specifications
Pin assignment Wire color Coding Rated current Voltage Wire gauge Cable outlet Length Model No.
M8 Shielded Cable Connectors Pre Assembled Straight Male 3 Pin A Code PVC 1 1=BN
3=BU
4=BK		 A 3A 60V 3x0.25 (3x24AWG)
PVC, shielded, black		 Straight 2M
5M
10M		 M0803M-2/SOOR
M0803M-5/SOOR
M0803M-10/SOOR
