IEC 61076-2-104 M8 Female Connectors Field Wireable Assembled 3 Pin A Code

Brand Name: KRONZ
Model Number: H0803F-0
MOQ: 50 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Type:
Contactor
Product Name:
Cable Connector
Contact Nut Material:
Brass, Nickle-plated
Cable Outlet:
Straight
Seal Material:
FPM And FKM
Contact Resistance:
≤ 5mΩ
Pollution Degree:
3
Working Temperature:
-25~+85℃
Supply Ability:
100000 pieces per month
Highlight:

IEC 61076-2-104 M8 Female Connectors

,

3 Pin M8 Female Connectors

,

Field Wireable M8 Female Connectors

Product Description
IEC 61076-2-104 M8 Female Connectors Field Wireable Assembled 3 Pin A Code
Product Attributes
Attribute Value
Type Contactor
Product name Cable Connector
Contact nut material Brass, nickle-plated
Cable Outlet Straight
Seal material FPM and FKM
Contact resistance ≤ 5mΩ
Pollution degree 3
Working temperature -25~+85℃
Product Description

The IEC 61076-2-104 M8 pre-molded cable connector plays a critical role in industrial automation, particularly in automotive production. These field-wireable assembly connectors reliably connect robot sensors to control units, ensuring precise transmission of signals and data for welding, painting, and assembly operations.

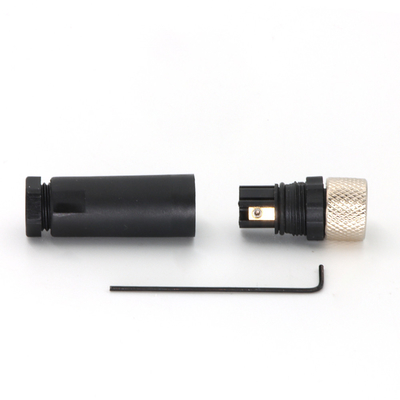

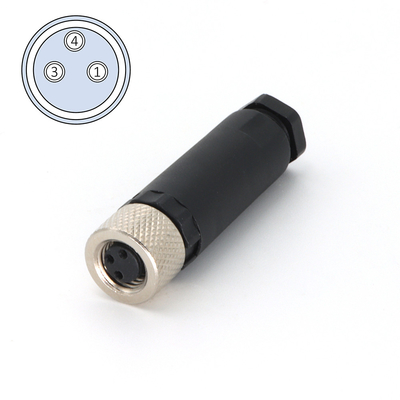

IEC 61076-2-104 M8 Female Connectors Field Wireable Assembled 3 Pin A Code 0 IEC 61076-2-104 M8 Female Connectors Field Wireable Assembled 3 Pin A Code 1
Technical Specifications
Standard IEC 61076-2-104
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material PBT/PA, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67
Pin assignment Connection method Coding Rated current Voltage Cable outlet External cable diameter Model No.
IEC 61076-2-104 M8 Female Connectors Field Wireable Assembled 3 Pin A Code 2 Screw connection A 3A 60V Straight 3.5-5mm H0803F-0
