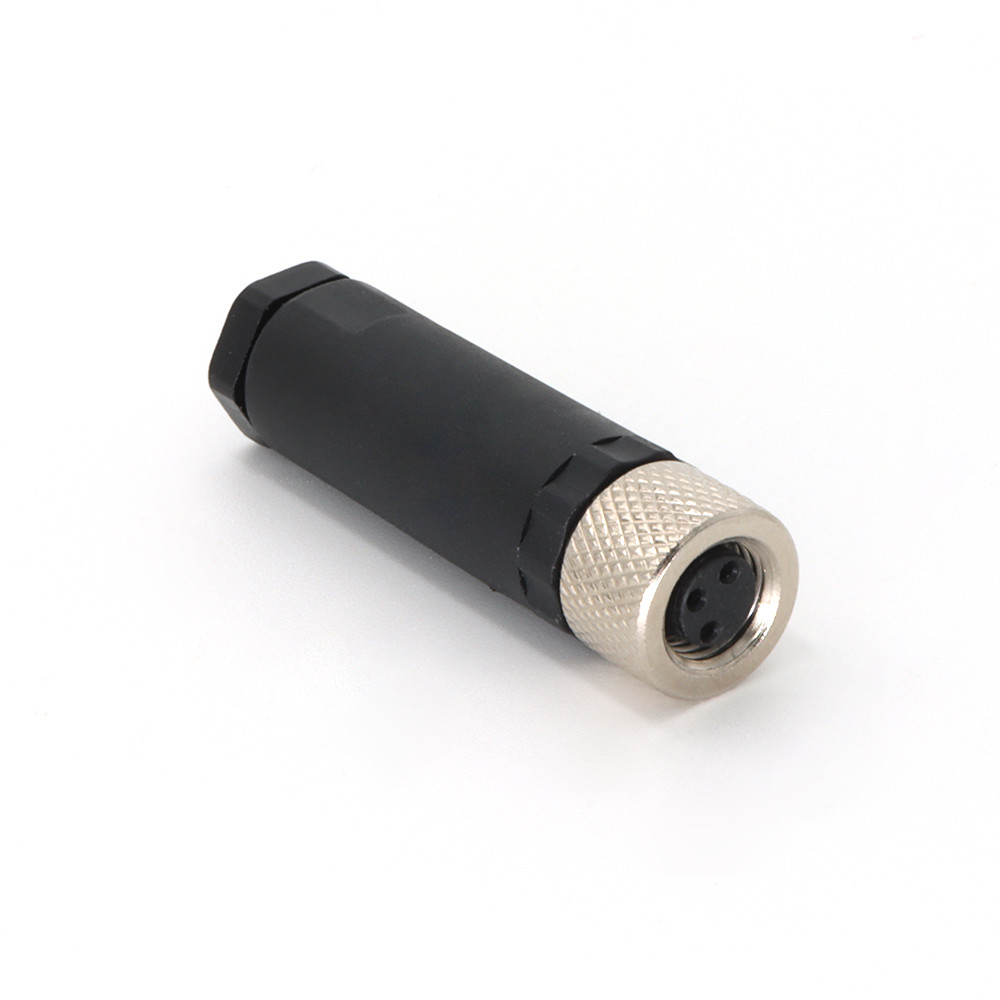

4 Pin M8 Connector Female Field Wireable Waterproof IEC 61076-2-104

Brand Name: KRONZ
Model Number: H0804F-0
MOQ: 50 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Product Name:
M8 Field Wirable Assembly Connector
Contact Nut Material:
Brass, Nickle-plated
Contact Carrier Material:
PA, Black
Housing Material:
PBT/PA, Black
Seal Material:
FPM/FKM
Insulation Resistance:
≥ 100MΩ
Ambient Temperature:
-25~+85℃
Degree Of Protection:
IP67
Supply Ability:
100000 pieces per month
Highlight:

4 Pin M8 Connector Waterproof

,

Field Wireable 4 Pin M8 Connector

,

M8 4 Pin Connector Female

Product Description
4 Pin M8 Connector Female Field Wireable Waterproof IEC 61076-2-104
Product Attributes
Attribute Value
Product name M8 Field Wirable Assembly Connector
Contact nut material Brass, nickle-plated
Contact carrier material PA, black
Housing material PBT/PA, black
Seal material FPM/FKM
Insulation Resistance ≥ 100MΩ
Ambient temperature -25~+85℃
Degree of protection IP67
Product Description

IEC 61076-2-104 M8 Connector Field-wireable Assembly Connectors 4 Pin Female Waterproof

The M8 connector plays an important role in electronic devices, especially in situations that require stable signal transmission. This connector features a waterproof design, ensuring stable signal transmission even in outdoor or humid environments. Moreover, its male and female pin design allows for easy and flexible combinations of 3 to 6 pins, making it very convenient to use.

4 Pin M8 Connector Female Field Wireable Waterproof IEC 61076-2-104 0 4 Pin M8 Connector Female Field Wireable Waterproof IEC 61076-2-104 1 4 Pin M8 Connector Female Field Wireable Waterproof IEC 61076-2-104 2
Technical Data
Standard IEC 61076-2-104
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material PBT/PA, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67

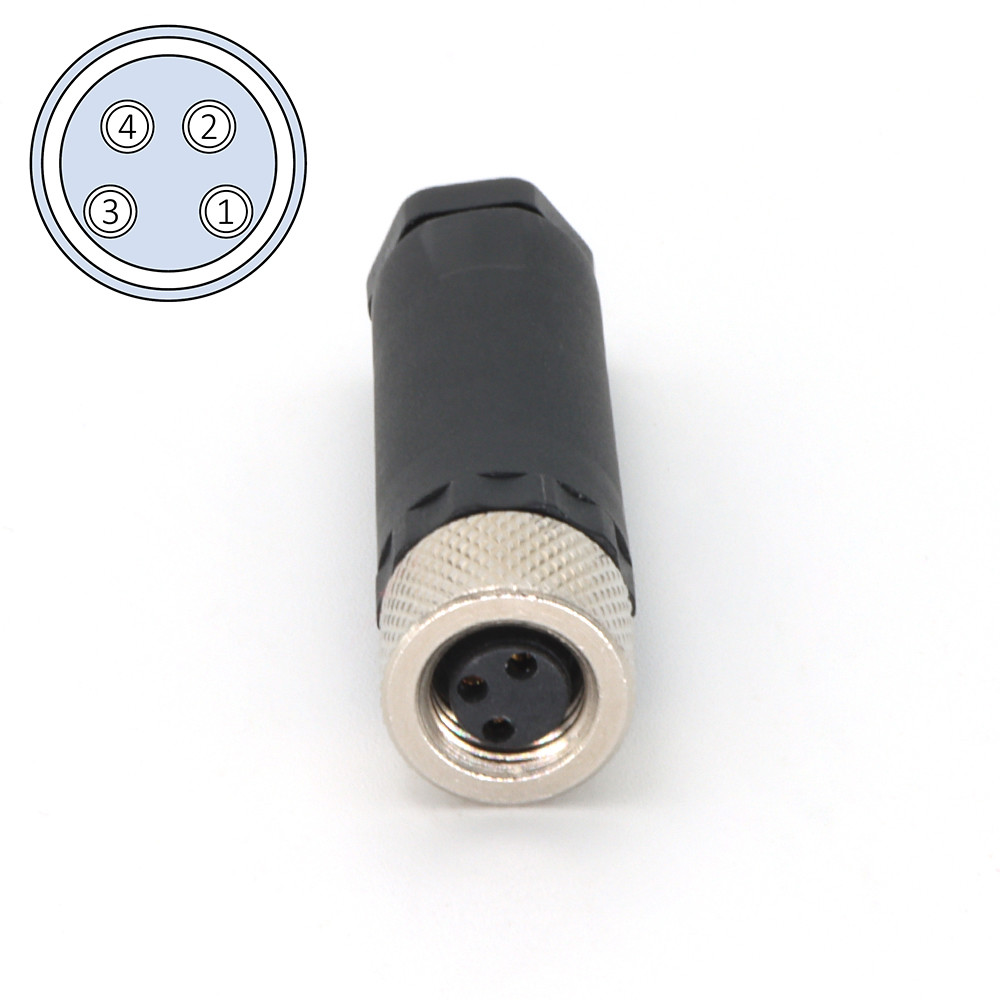

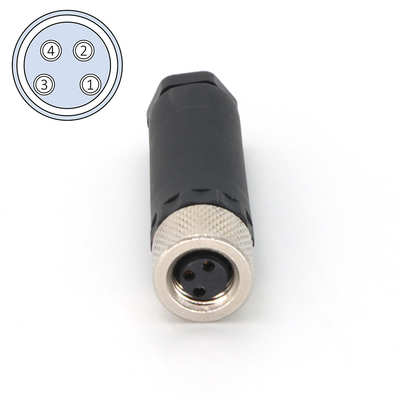

Pin assignment Connection method Coding Rated current Voltage Cable outlet External cable diameter Model No.
4 Pin M8 Connector Female Field Wireable Waterproof IEC 61076-2-104 3 Screw connection A 3A 60V Straight 3.5-5mm H0804F-0
