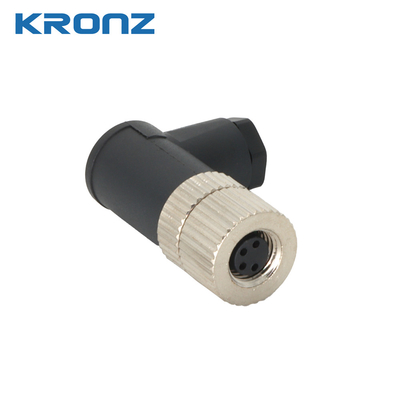

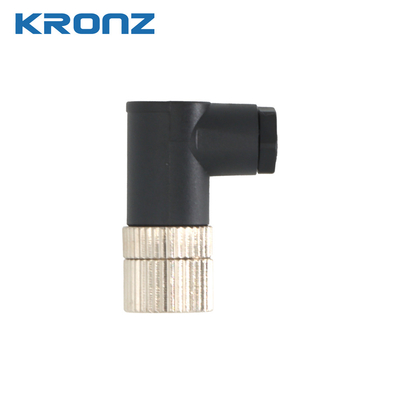

M8 Connector 5 Pin B Code Waterproof IP67 Industrial Circular Connectors for Sensors

50 pieces
MOQ
Negotiable
Price
M8 Connector 5 Pin B Code Waterproof IP67 Industrial Circular Connectors for Sensors
Features Gallery Product Description Request A Quote
Features
Specifications
Standard: IEC 61076-2-104
Contact Nut Material: Brass, Nickle-plated
Contact Surface Material: Brass, Gold-plated
Contact Carrier Material: PA, Black
Pollution Degree: 3
Ambient Temperature: -25~+85℃
Endurance(shell): >100 Cycles
Degree Of ProtectionProduct Description: IP67
Highlight:

waterproof m8 connector

,

waterproof m8 male connector

,

ip67 m8 connector
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: H0805BFA-0
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description
M8 Connector 5 Pin B Code Waterproof IP67 Industrial Circular Connectors for Sensors
Product Overview
The M8 5-pin female connector with B-code provides reliable power and data integration for industrial applications. Designed for environments demanding high reliability, this waterproof IP67 connector is ideal for industrial robotics, medical equipment, and process automation systems.
Key Features
  • 5-pin B-code configuration for power and data transmission
  • IP67 waterproof rating for harsh environments
  • Nickel-plated brass contact nuts for durability
  • Gold-plated contact surfaces for reliable connectivity
  • PA black contact carrier material
  • Operating temperature range: -25°C to +85°C
M8 Connector 5 Pin B Code Waterproof IP67 Industrial Circular Connectors for Sensors 0
Technical Specifications
Standard IEC 61076-2-104
Contact nut material Brass, nickel-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25°C to +85°C
Mating cycles >100
Degree of protection IP67
Pin Configuration
Pin assignment Connection method Coding Rated current Voltage Cable outlet External cable diameter Model No.
M8 Connector 5 Pin B Code Waterproof IP67 Industrial Circular Connectors for Sensors 1 Screw connection A 3A 30V Angled 3.5-5mm H0805BFA-0
M8 Connector 5 Pin B Code Waterproof IP67 Industrial Circular Connectors for Sensors 2
Applications
  • Industrial robotics
  • Medical sensor networks
  • Process automation and control
  • Equipment requiring power and data connectivity
Support and Services
  • Product installation and setup assistance
  • Troubleshooting and problem resolution
  • Product updates and firmware upgrades
  • Warranty and repair services
  • Technical documentation and resources
  • Training on product features
Frequently Asked Questions
Where is this product manufactured?
This product is manufactured in Guangdong, China.
Does this product have any certifications?
Yes, this product is CE certified.
What is the minimum order quantity for this product?
The minimum order quantity for this product is 80.
Is the price of this product negotiable?
Yes, we offer different prices according to quantity.
How is this product packaged?
This product is packaged in polybag packing, export carton.
What is the delivery time for this product?
The delivery time is 5-8 working days for MOQ 80pcs. For larger quantities, please contact the seller.
What payment terms are accepted for this product?
We accept T/T, Western Union, and MoneyGram.
What is the supply ability of this product?
We can supply 100,000 pieces per month.
