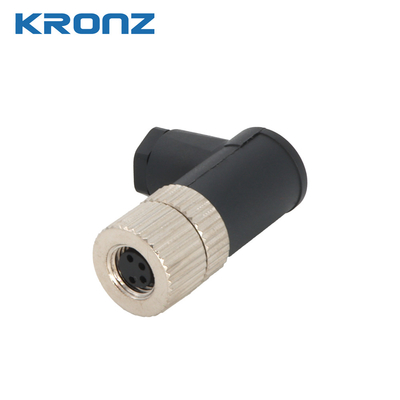

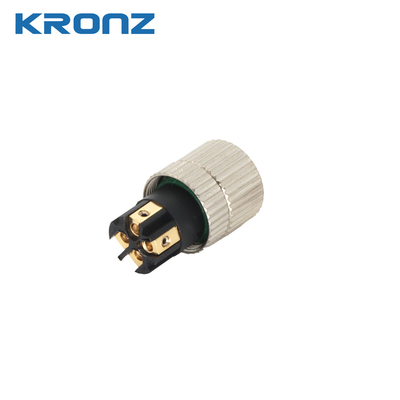

M8 Connector Angled Waterproof IP67 4 Pin Female Angled Field-wireable Sensor Connector

Brand Name:	KRONZ
Model Number:	H0804FA-0
MOQ:	50 pieces
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Product Brochure PDF

Standard:

IEC 61076-2-104

Contact Nut Material:

Brass, Nickle-plated

Housing Material:

PBT/PA, Black

Seal Material:

FPM/FKM

Insulation Resistance:

≥ 100MΩ

Contact Resistance:

≤ 5mΩ

Ambient Temperature:

-25~+85℃

Endurance(shell):

>100 Cycles

Supply Ability:

100000 pieces per month

Highlight:

m8 connector angled

angled m8 male connector

waterproof m8 connector

Product Description

M8 Connector Angled Waterproof IP67 4 Pin Female Angled Field-wireable Sensor Connector

Product Specifications

Attribute	Value
Standard	IEC 61076-2-104
Contact nut material	Brass, nickle-plated
Housing material	PBT/PA, black
Seal material	FPM/FKM
Insulation Resistance	≥ 100MΩ
Contact resistance	≤ 5mΩ
Ambient temperature	-25~+85℃
Endurance(shell)	>100 cycles

Product Overview

M8 Female Connector - 4 Pins (A Code) - Enhanced Flexibility for Complex Systems
The M8 4-pin female connector with A-code is widely used in systems requiring multiple signals or power lines. It's typically used in conjunction with the male version to support more complex sensor or actuator networks. This connector is often utilized in applications that require an enhanced level of flexibility, allowing it to handle additional signals for power distribution or multiple data connections. It's commonly found in industrial automation systems and process control, ensuring robust signal integrity and power transmission.

Applications

Complex sensor systems
Power distribution in automation
Multi-signal industrial control systems
Automated machinery and manufacturing lines

Technical Specifications

Parameter	Value
Standard	IEC 61076-2-104
Contact nut material	Brass, nickle-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	TPU, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP67

Pin Assignment & Connection Details

Pin assignment	Connection method	Coding	Rated current	Voltage	Cable outlet	External cable diameter	Model No.
	Screw connection	A	3A	60V	Angled	3.5-5mm	H0804FA-0

Frequently Asked Questions

Where is this product manufactured?

This product is manufactured in Guangdong, China.

Does this product have any certifications?

Yes, this product is CE certified.

What is the minimum order quantity for this product?

The minimum order quantity for this product is 80.

Is the price of this product negotiable?

Yes, we will offer different price according the quantity.

How is this product packaged?

This product is packaged in polybag packing, export carton.

What is the delivery time for this product?

The delivery time for this product is 5-8 working days for MOQ 80pcs, if more quantity, please contact with seller.

What payment terms are accepted for this product?

The payment terms accepted for this product are T/T, Western Union, and MoneyGram.

What is the supply ability of this product?

The supply ability of this product is 100000 pieces per month.
