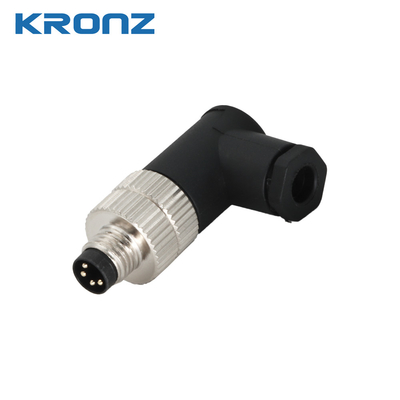

M8 Connector Field-wireable Waterproof IP67 3 Pin A Code Angled Sensor Connector

50 pieces
MOQ
Negotiable
Price
M8 Connector Field-wireable Waterproof IP67 3 Pin A Code Angled Sensor Connector
Features Gallery Product Description Chat Now
Features
Specifications
Contact Surface Material: Brass, Gold-plated
Housing Material: PBT/PA, Black
Seal Material: FPM/FKM
Insulation Resistance: ≥ 100MΩ
Contact Resistance: ≤ 5mΩ
Pullution Degree: 3
Ambient Temperature: -25~+85℃
Degree Of Protection: IP67
Highlight:

wireable m8 connector

,

wireable m8 male connector

,

waterproof m8 connector

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: H0803MA-0
Payment & Shipping Terms
Packaging Details: Polybag packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description
M8 Connector Field-wireable Waterproof IP67 3 Pin A Code Angled Sensor Connector
Product Attributes
Attribute Value
Contact surface material Brass, gold-plated
Housing material PBT/PA, black
Seal material FPM/FKM
Insulation Resistance ≥ 100MΩ
Contact resistance ≤ 5mΩ
Pullution degree 3
Ambient temperature -25~+85℃
Degree of protection IP67
Product Description

M8 Male Connector - 3 Pins (A Code) - Simplifying Sensor Connections

The M8 3-pin male connector with A-code is widely used in industrial automation and sensor-based applications. Its compact size and rugged design make it ideal for connecting sensors to control systems in harsh environments. The 3-pin configuration typically includes power and ground, with the third pin used for signal transmission, making it perfect for basic sensors such as temperature, pressure, or proximity sensors. This configuration ensures reliable signal communication while maintaining a compact and secure connection, crucial for maintaining efficiency in industrial settings.

Applications
  • Basic sensor connections
  • Industrial control systems
  • Proximity sensors
  • Temperature and pressure monitoring systems
M8 Connector Field-wireable Waterproof IP67 3 Pin A Code Angled Sensor Connector 0
Technical Data
Standard IEC 61076-2-104
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67
Pin assignment Connection method Coding Rated current Voltage Cable outlet External cable diameter Model No.
M8 Connector Field-wireable Waterproof IP67 3 Pin A Code Angled Sensor Connector 1 Screw connection A 3A 60V Angled 3.5-5mm H0803MA-0
M8 Connector Field-wireable Waterproof IP67 3 Pin A Code Angled Sensor Connector 2
Company Information

Kronz is a manufacturing enterprise located in Zengcheng District, Guangzhou City. We focus on providing customers with high-efficiency industrial automation solutions and related industrial products. After many years of innovation and development, Kronz has complete product processing equipment and a professional team proficient in various automation technologies.

In order to improve the quality of products and production efficiency, we continue to introduce advanced production equipment and technology, strengthen investment in research and development. At present, our main products include Industrial Connectors, Inductive Sensors, Capacitive Sensors, Photoelectric Sensors, Ultrasonic Sensors, Industrial power supplies, Industrial fieldbus, RFID recognition systems, Industrial Ethernet Switches.

We not only produce the orders of standard products, but also have the ability to make customized production based on customer design drawings or samples.

Adhering to the principle of mutual benefit, we provide our customers with competitive prices, and perfect after-sales service. Kronz's products have been sold in multiple countries and have won the trust and praise of customers.

Kronz expects to cooperation with you. Whatsapp:0086 189 2416 0375, Email: sales02@kronz.cn
