M8 Wireable Field Assembly Connectors 5 Pin B Code IEC 61076-2-104

Brand Name: KRONZ
Model Number: H0805BF-0
MOQ: 50 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union,
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Product Name:
M8 Field Wirable Assembly Connector
Contact Surface Material:
Brass, Gold-plated
Contact Carrier Material:
PA, Black
Housing Material:
PBT/PA, Black
Insulation Resistance:
≥ 100MΩ
Ambient Temperature:
-25~+85℃
Endurance(shell):
>100 Cycles
Degree Of Protection:
IP67
Supply Ability:
100000 pieces per month
Highlight:

M8 Wireable Field Assembly Connectors

,

M8 Field Assembly Connectors

,

IEC 61076-2-104 M8 5 Pin Connectors

Product Description
M8 Wireable Field Assembly Connectors 5 Pin B Code IEC 61076-2-104
Product Attributes
Attribute Value
Product name M8 Field Wirable Assembly Connector
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material PBT/PA, black
Insulation Resistance ≥ 100MΩ
Ambient temperature -25~+85℃
Endurance(shell) >100 cycles
Degree of protection IP67
Product Description
The M8 connector plays a crucial role in a wide range of industries, from industrial automation to automotive applications. In industrial environments, M8 connectors are commonly used for connecting sensors and actuators. With an 8 mm locking thread, they are smaller than M12 connectors, making them ideal for applications that require lightweight connectors or have limited space.

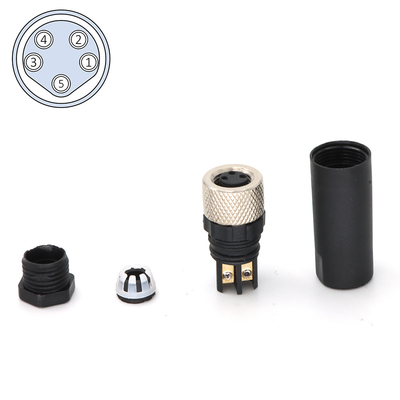

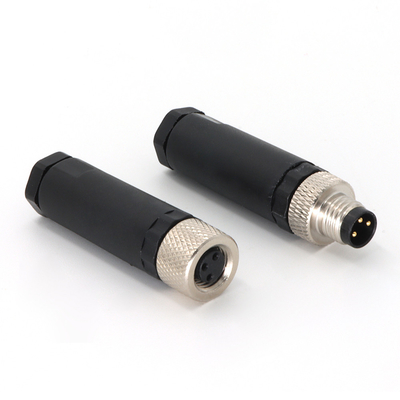

M8 Connector overview M8 Connector side view M8 Connector in application
Technical Data
Standard IEC 61076-2-104
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material PBT/PA, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67
Pin assignment Connection method Coding Rated current Voltage Cable outlet External cable diameter Model No.
M8 Connector pin assignment diagram Screw connection B 3A 30V Straight 3.5-5mm H0805BF-0
