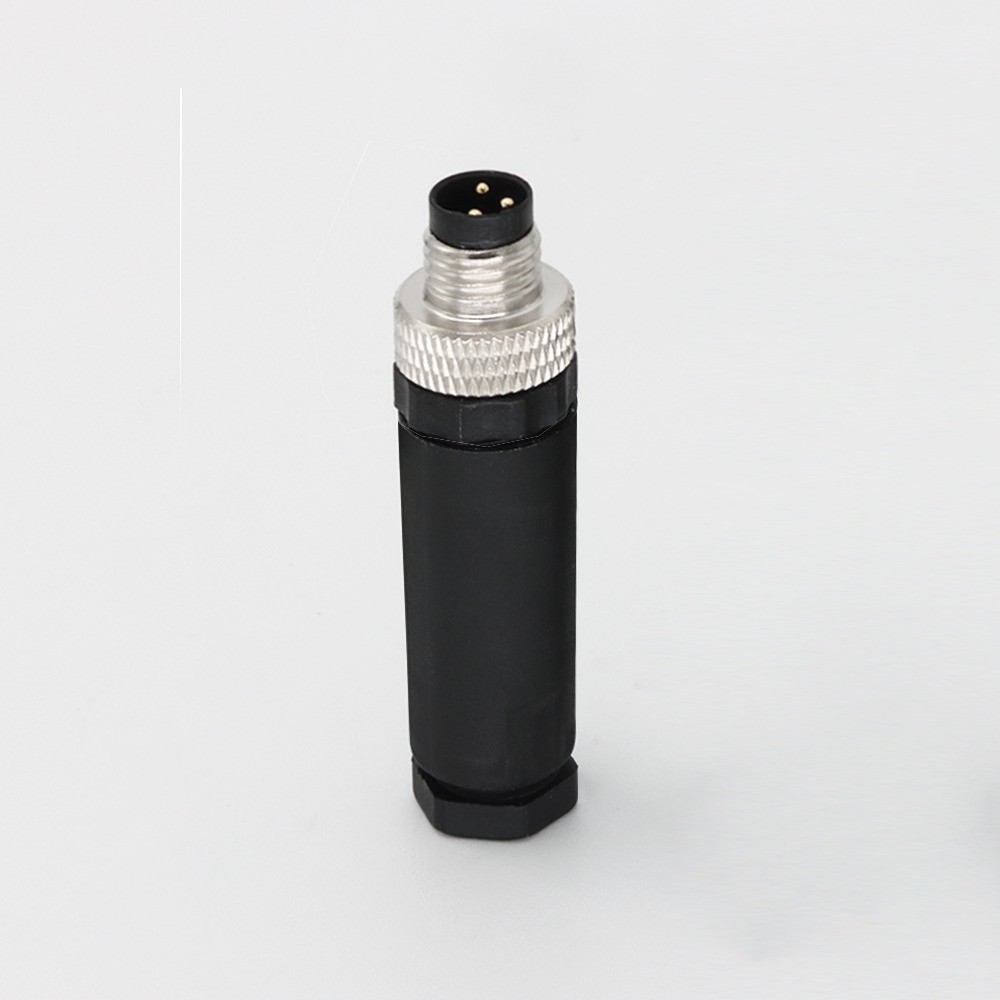

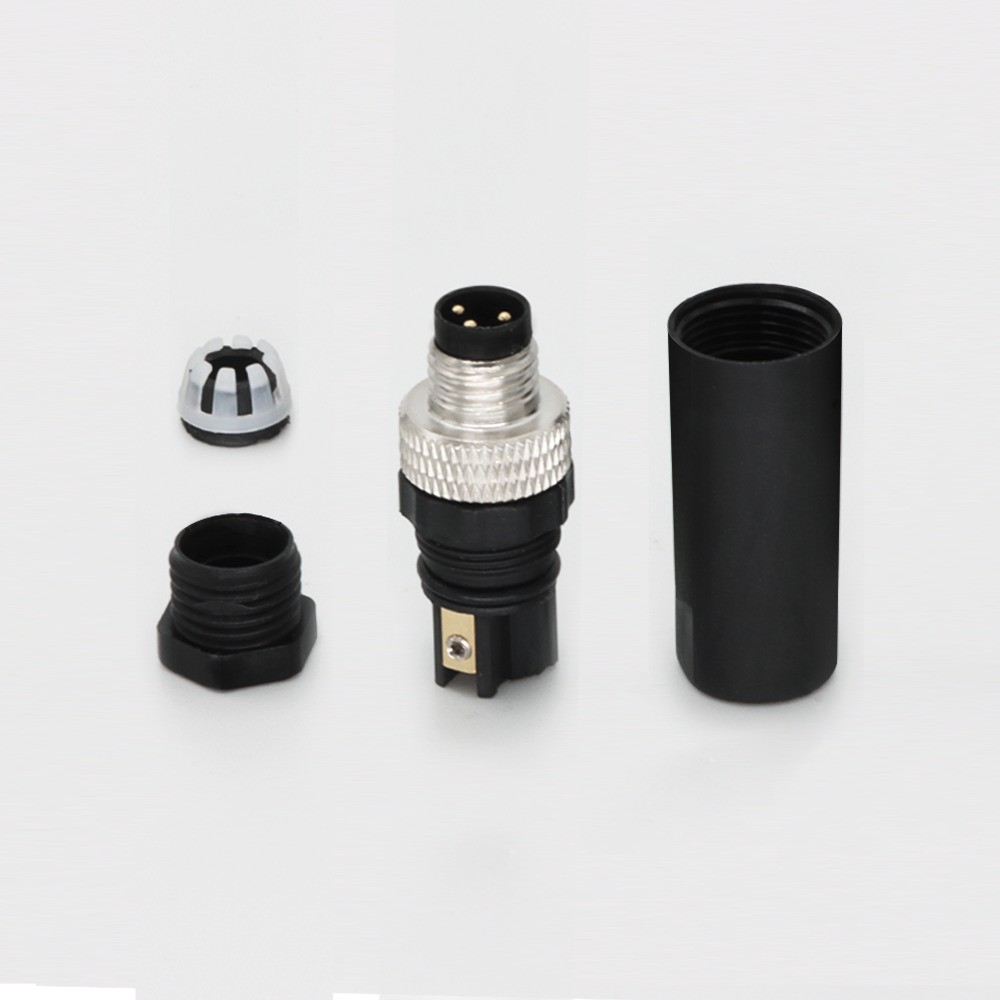

Field-wireable Assembly Connector M8 Connector 4 Pin Waterproof Male

Brand Name: KRONZ
Model Number: H0804M-0
MOQ: 50 pieces
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Product Name:
M8 Field Wirable Assembly Connector
Standard:
IEC 61076-2-104
Housing Material:
PBT/PA, Black
Seal Material:
FPM/FKM
Contact Resistance:
≤ 5mΩ
Pollution Degree:
3
Ambient Temperature:
-25~+85℃
Endurance(shell):
>100 Cycles
Supply Ability:
100000 pieces per month
Highlight:

Field Wireable Assembly M8 Male Connector

,

M8 Male Connector 4 Pin

,

M8 Male Connector Waterproof

Product Description
Field-wireable Assembly Connector M8 Connector 4 Pin Waterproof Male
Product Attributes
Product name M8 Field Wirable Assembly Connector
Standard IEC 61076-2-104
Housing material PBT/PA, black
Seal material FPM/FKM
Contact resistance ≤ 5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Endurance(shell) >100 cycles
Product Description

M8 connectors are commonly used to connect various sensors, such as temperature sensors, pressure sensors, and flow sensors. M8 field-wireable connectors have widespread applications in industrial automation, sensor and control systems, motor drives, energy distribution, and robotic systems.

Field-wireable Assembly Connector M8 Connector 4 Pin Waterproof Male 0 Field-wireable Assembly Connector M8 Connector 4 Pin Waterproof Male 1 Field-wireable Assembly Connector M8 Connector 4 Pin Waterproof Male 2
Technical Data
Standard IEC 61076-2-104
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material PBT/PA, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67
Pin assignment Connection method Coding Rated current Voltage Cable outlet External cable diameter Model No.
Field-wireable Assembly Connector M8 Connector 4 Pin Waterproof Male 3 Screw connection A 3A 60V Straight 3.5-5mm H0804M-0
