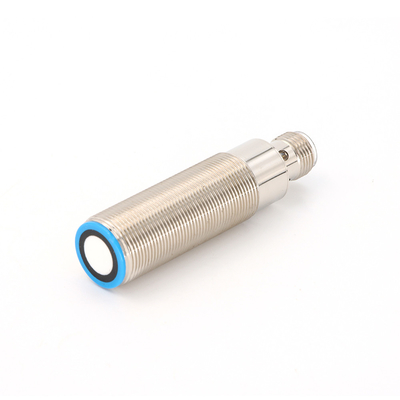

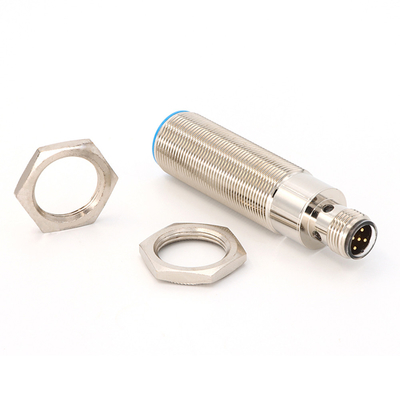

U18 Ultrasonic Sensor NPN Switching Output 30-300mm 10-30VDC M12 Connector
  • Name
  • Name

U18 Ultrasonic Sensor NPN Switching Output 30-300mm 10-30VDC M12 Connector

Brand Name: KRONZ
Model Number: U18-D300N(P)1T-R00A
MOQ: 5 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Features:
Easy To Instal
Series:
U18 Serial
Description:
U18 Ultrasonic Sensors, Ultrasonic Sensor
Type:
Ultrasonic Sensor
Detection Range:
50-500mm
Input Type:
Teach-in And Synchronization
Meterial:
Copper Nikel-plated,plastic Fitting,glass Epoxy Resin
Connection Type:
5pin, M12 Connector
Supply Ability:
100000 pieces per month
Highlight:

U18 Ultrasonic Sensor NPN

,

M12 Connector Ultrasonic Sensor NPN

,

Ultrasonic Sensor NPN 10VDC

Product Description
U18 Ultrasonic Sensor NPN Switching Output 30-300mm 10-30VDC M12 Connector
Product Attributes
Attribute Value
Series U18 Serial
Description U18 Ultrasonic Sensors, Ultrasonic Sensor
Features Easy to install
Type Ultrasonic Sensor
Detection Range 50-500mm
Input Type Teach-in and synchronization
Material Copper nickel-plated, plastic fitting, glass epoxy resin
Connection Type 5pin, M12 connector
Product Description
U18 Ultrasonic Sensor NPN Switching Output 30-300mm 10-30VDC M12 Connector

Main Features
  • M18 installation threaded sleeve
  • Easy to install
Basic Features
  • 1 pc NPN or PNP switching output
  • Support digital RS485, Modbus-RTU standard protocol communication
  • Analog voltage output 0-10V or analog current output 4-20 mA
  • Implementing detection distance learning function through gray lines
  • Temperature compensation
  • Standard operating voltage DC 10-30V
Technical Specifications
Model: U18-D300N(P)1T-R00A
Detection range: 30-300mm
Blind zone: 0-30mm
Resolution: 0.1mm
Repeatability: ±0.15%F.S.
Accuracy: ±1%(built-in temperature drift compensation)
Response time: 22ms
Switching hysteresis: 2mm
Switching frequency: 45Hz
Initialization time: < 500ms
Supply voltage: 10-30V DC, reverse-polarity protection
Red LED: no object detected: Lights up, teaching-in when no object detected: Flashes
Green LED: object detected: Lights up, teaching-in when object detected: Flashes
Overcurrent protection: 200mA, Red LED and Green LED flashing at the same time
Load impedance: I/ < 300 Ohm, U/ > 1k Ohm
No-load current: ≤30mA
Input type: teach-in and synchronization
Material: Copper nickel-plated, plastic fittings, glass epoxy resin
Enclosure rating: IP67
Connection type: 5pin, M12 connector
Ambient temperature: -25℃ ~+70℃(248~343K)
Storage temperature: -40℃ ~+85℃(233~358K)
Weight: 35g
Output type: N1: 1 NPN switching output NO/NC, P1: 1 PNP switching output NO/NC
Dimensional Drawing
U18 Ultrasonic Sensor NPN Switching Output 30-300mm 10-30VDC M12 Connector 0
