Name: IP67 Ultrasonic Distance Sensor U30D With Green LED Detection 20-100mm
Brand: Kronz (guangzhou) Electronics Co., Ltd.
SKU: U18D-D60NO3T-R00C
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Features: Easy To Instal

Series: U18D Serial

Mounting Type: Threaded Sleeve

Description: U18D Ultrasonic Sensors, Ultrasonic Sensor

Type: Ultrasonic Sensor

Theory: Distance Measuring Sensor

Output: NPN Switching Output

Detection Range: 20-60mm

Blind Area: 7mm In Front

Highlight:

IP67 Ultrasonic Distance Sensor

Detection 100mm Ultrasonic Distance Sensor

Green LED Ultrasonic Sensor 100mm

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: Kronz

Certification: CE

Model Number: U18D-D60NO3T-R00C

Document: Product Brochure PDF

Payment & Shipping Terms

Packaging Details: Polybag packing

Delivery Time: 5-8 working days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 100000 pieces per month

Gallery

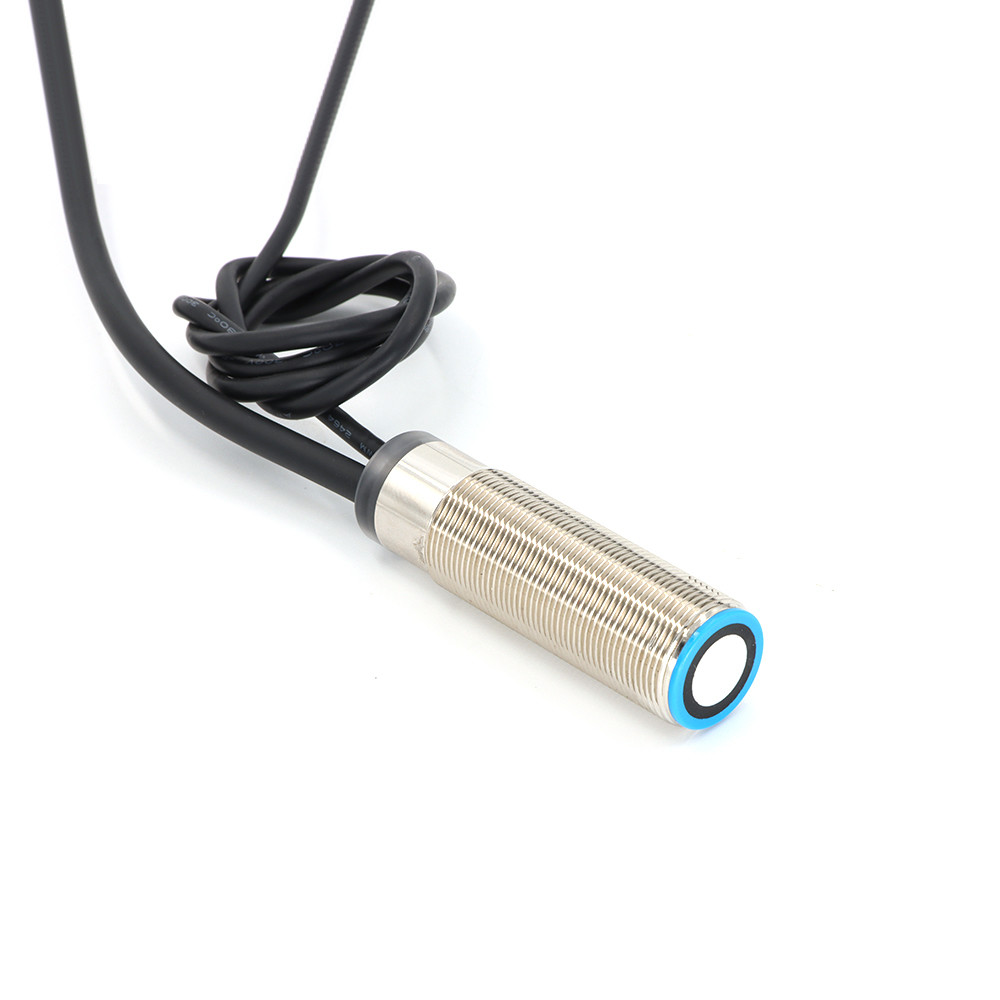

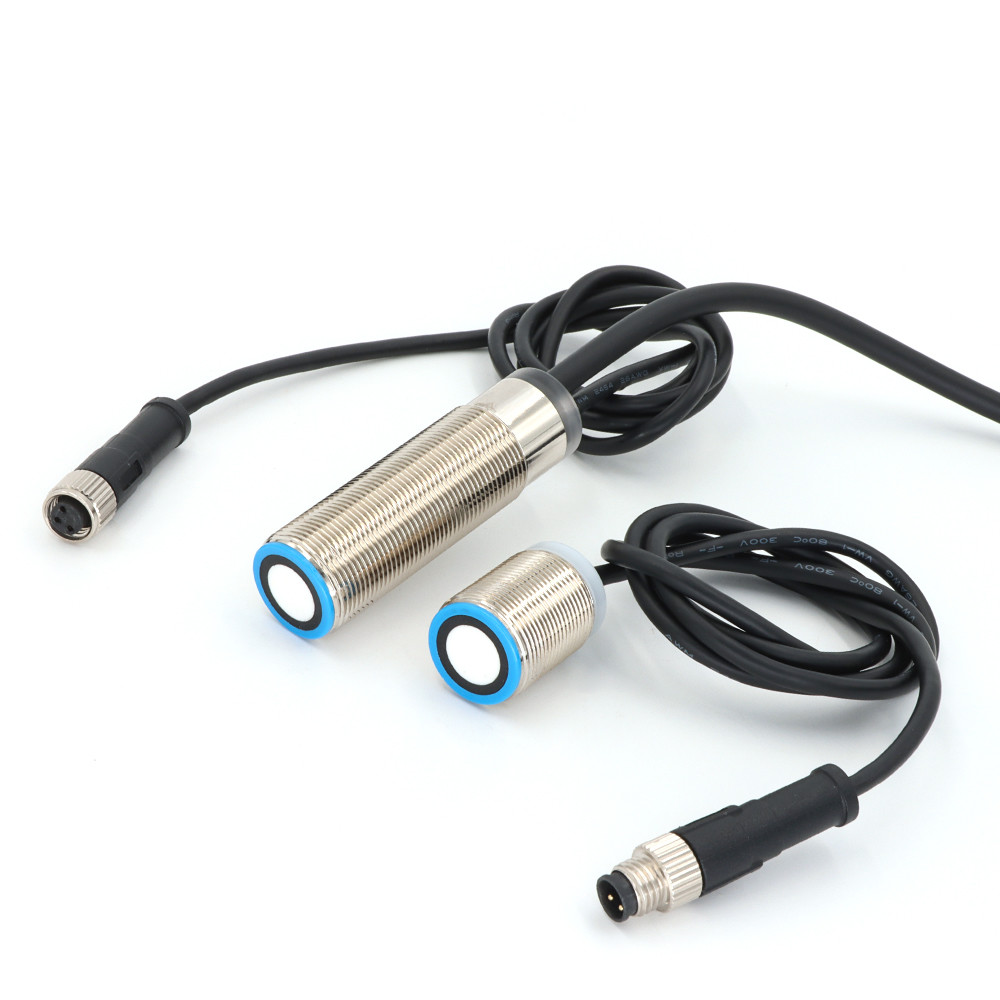

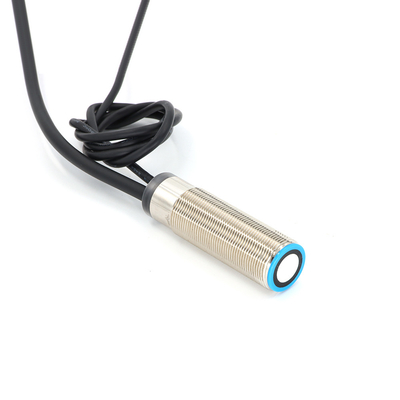

IP67 Ultrasonic Distance Sensor U30D With Green LED Detection 20-100mm

Product Description

Ultrasonic Sensor U30D with Green LED Detection 20-100mm IP67 Distance Measuring

Product Description

Ultrasonic sensor is an electronic device that measures the distance of a target object by emitting ultrasonic sound waves, and converts the reflected sound into an electrical signal.

Main Feature

3 channels of control output
Can learn single and double sheets according to any material

Basic Feature

Detect single and double sheets of various materials
3 channels of NPN or PNP output
10-30V power supply for use in operation
The learning function for detecting different materials is achieved through the pink wire

Technical Data

Model	U18D-D60NO3T-R00C
Dection range	20-60mm
Blind zone	7 mm in front
Permissble angle deviation	±45° to the vertical plane
Working range	＜ 1mm thick metal composite plate and thinfilm, self-adhesive film,on backing material label, ＞ 0.01mm paper, PCB board,silicon wafer
Supply voltage	10-30V DC, reverse-polarity protected
Green LED	1 material layer detected
Yellow LED	no object detected
Red LED	2 material layer detected
No-load current	≤30mA,short circuit protection/overload protection
Operational current	3x200mA
Overcurrent protection	200mA, Red LED and Green LED flashing at the same time
Voltage drop	≤2V
Response delay	10ms
Pulse width	≥100ms
Impedance	≥4kΩ
Material	Copper nikel-plated,plastic fittings,glass epoxy resin.
Enclosure rating	IP67
Connection type	2m, PVP cable 0.14mm2
Ambient temperature	-25℃ ~+70℃(248~343K)
Storage temperature	-40℃ ~+85℃(233~358K)
Weight	220g
Output type	NPN: 3-way switching output npn, NO/NC
Dimensional drawing
