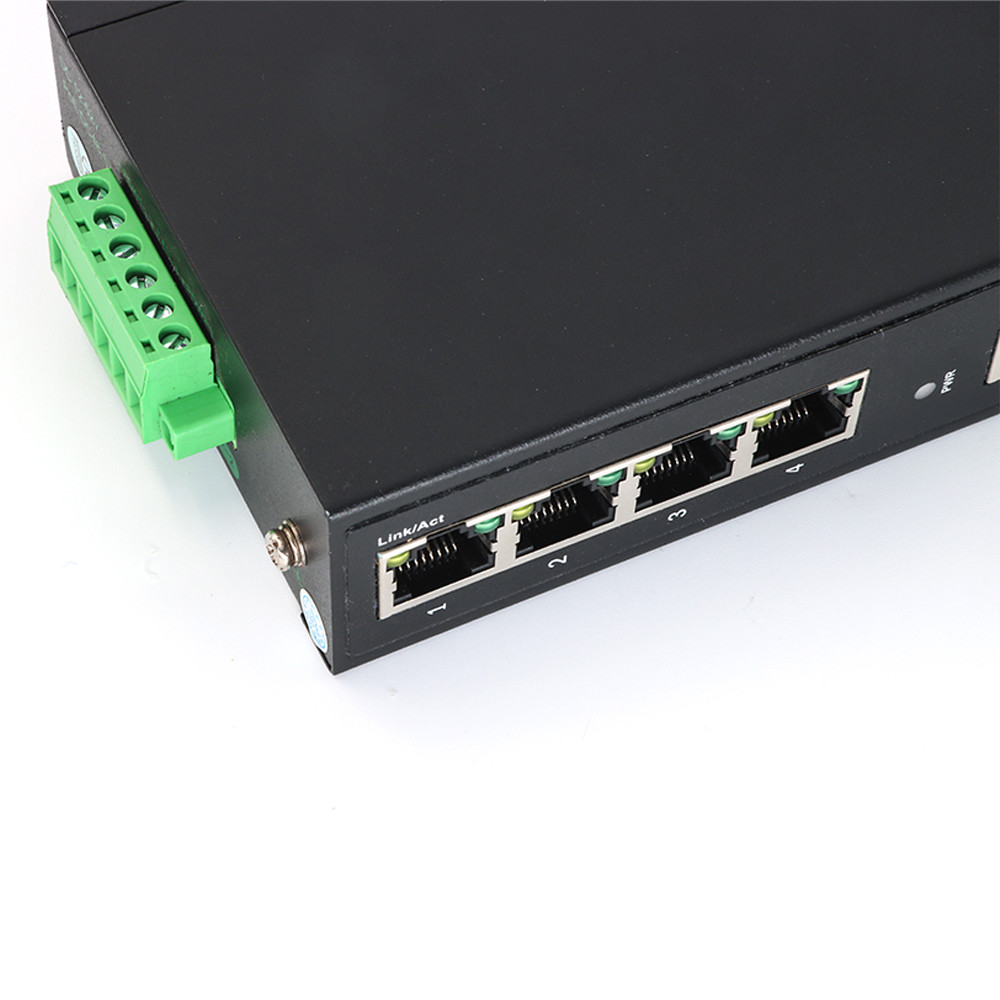

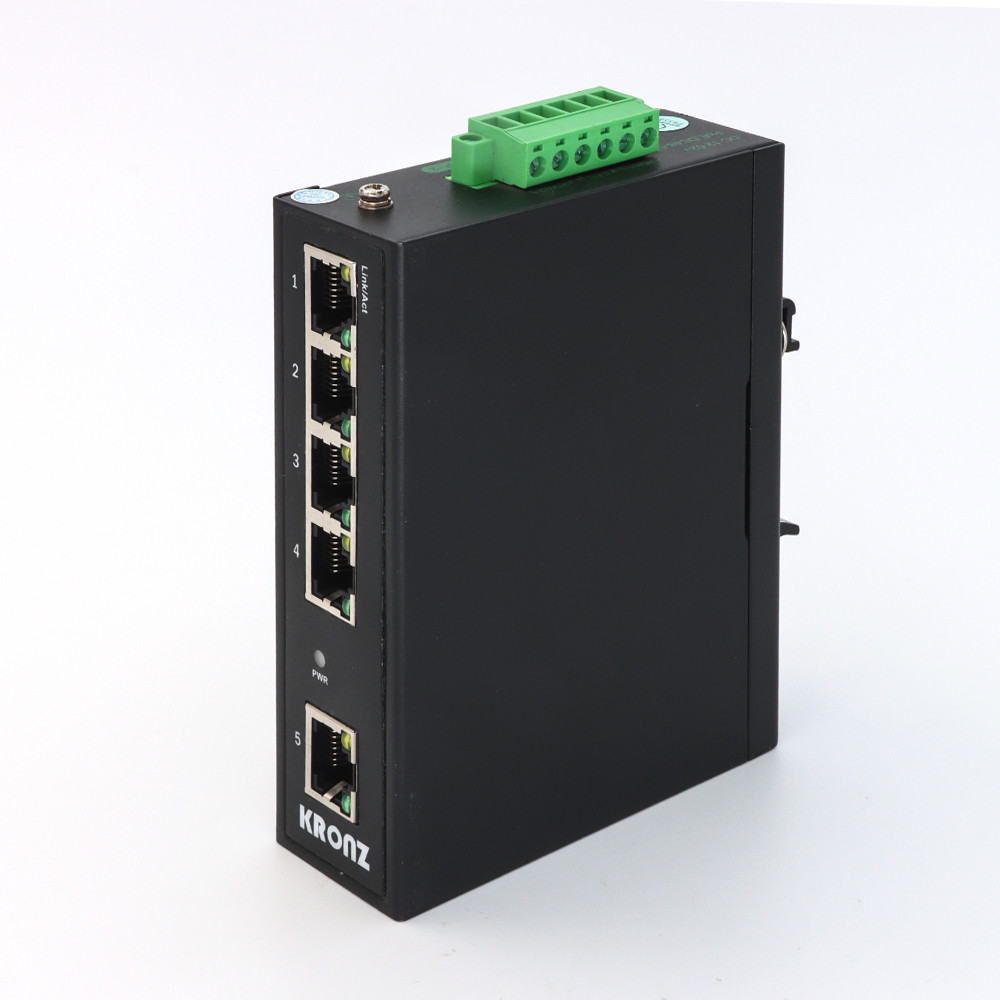

POE Industrial Ethernet Switches 5 Port Unmanaged DIN Rail Mounting 1000Mbit/S

Brand Name:	KRONZ
Model Number:	US-05TH
MOQ:	10 pieces
Price:	Negotiable
Packaging Details:	Paper box packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Product Brochure PDF

Products Status:

Stock

Function:

POE

Communication Mode:

Full-Duplex & Half-Duplex

Condition:

New

Power Voltage:

DC12-52V(POE)

Packet Buffer:

1 Mbit

MAC Address Table:

2 K

Power Indicator:

PWR

Supply Ability:

100000 pieces per month

Highlight:

POE Industrial Ethernet Switches

DIN Rail Mounting POE Ethernet Switches

Industrial Ethernet Switches 1000Mbit/S

Product Description

POE Industrial Ethernet Switches 5 Port Unmanaged DIN Rail Mounting 1000Mbit/S

Product Attributes

Attribute	Value
Products Status	Stock
Function	POE
Communication Mode	Full-Duplex & Half-Duplex
Condition	New
Power voltage	DC12-52V(POE)
Packet buffer	1 Mbit
MAC address table	2 K
Power indicator	PWR

Industrial Ethernet Switches 5-Port Unmanaged DIN Rail Mounting 1000Mbit/s POE

Product Overview

The US series supports 12~52VDC redundant power input with double protection mechanism: power polarity reverse protection and overload current fuse. These rugged unmanaged switches operate in temperatures from -40°C to 75°C, making them ideal for harsh environments. Space-saving DIN rail mounting, IP40 protection rating, and LED indicators provide reliable plug-and-play network solutions.

Key Features

Reliable data transmission with long working life
Auto-Negotiation function for automatic transfer speed adjustment
Half Duplex/Full Duplex with Auto-crossing capability
Store-and-forward switching mode supporting multiple protocols
High reliability with MTBF: 300,000 hours
DC 12-52V power input with reverse-polarity protection
Lightning surge impact protection: 5000A (8/20μs)

Technical Specifications

General

Product description	5-port unmanaged industrial ethernet switch with PoE (Optional)
Port description	5 x RJ45 female 8 pin 1-port 10/100/1000Base-T(X) uplink 4-port 10/100/1000Base-T(X) downlink MDI/MDI-X auto-crossover, auto-negotiation

Network Protocol

IEEE802.3, IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX/FX; IEEE802.3ab1000Base-T; IEEE802.3at; IEEE802.3af; IEEE802.3z1000Base-X; IEEE802.3x

Environmental Conditions

Operating temperature	-40~75°C (-40~167°F)
Storage temperature	-40~75°C (-40~167°F)
Relative humidity	5% ~ 95% (no condensation)

Power Specifications

Input voltage	DC12-52V/DC 48-52V(PoE)
Connection terminal	Removable screw terminals block
Overload-current protection	Present
Reverse-polarity protection	Present

Mechanical Characteristics

Housing	Metal
Protection rating	IP40
Mounting	DIN-rail, wall
Cooling method	Natural cooling, fanless
Weight	0.36Kg
Size	117.7 x 88.7 x 34mm (L x W x H)

Performance

Packet buffer memory	1.2 Mkbit
MAC address	2K
Power consumption	< 3W
Bandwidth	14G
Forwarding rate	1.488Mpps
Latency	< 10μs
Forwarding mode	Store-and-forward

Mechanical Dimension Drawing
