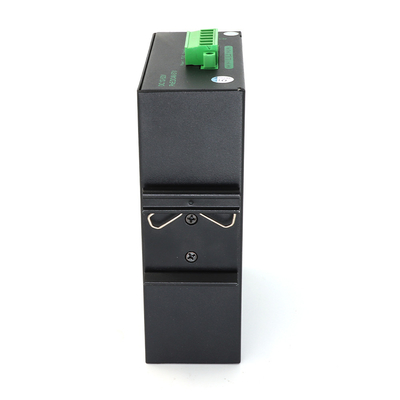

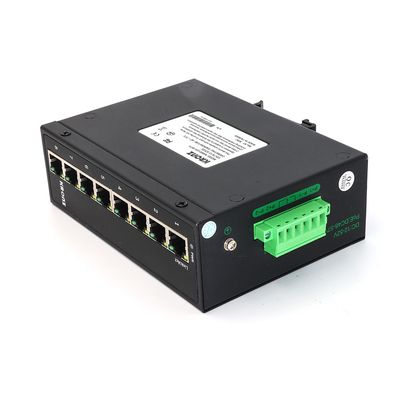

Industrial DIN Rail PoE Ethernet Switches 8 Port 12-52VDC 1000Base-TX Unmanaged

Brand Name:	KRONZ
Model Number:	US-08TH
MOQ:	10 pieces
Price:	Negotiable
Packaging Details:	Paper box packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Input Voltage:

DC12-52V/DC 48-52V(PoE)

Housing:

Metal

Protection Rating:

Mounting:

DIN-rail,wall

Power Consumption:

Packet Buffer Memory:

2Mbit

Bandwidth:

Latency:

< 10μs

Forwarding Mode:

Store-and Forward

Supply Ability:

100000 pieces per month

Highlight:

DIN Rail PoE Ethernet Switches

PoE Ethernet Switches 8 Port

1000Base-TX Unmanaged Ethernet Switches

Product Description

Industrial DIN Rail PoE Ethernet Switches 8 Port 12-52VDC 1000Base-TX Unmanaged

Product Specifications

Input voltage	DC12-52V/DC 48-52V(PoE)
Housing	Metal
Protection rating	IP40
Mounting	DIN-rail, wall
Power consumption	5W
Packet buffer memory	2Mbit
Bandwidth	20G
Latency	< 10μs
Forwarding mode	Store-and forward

Product Overview

The US-08TH series industrial Ethernet switches support 12~52VDC redundant power input with double protection mechanism: power polarity reverse protection and overload current fuse. These unmanaged switches operate in temperatures from -40°C to 75°C, offering exceptional ruggedness for harsh environments.

Key Features

Reliable data transmission with long working life
Auto-Negotiation function for automatic transfer speed adjustment
Half Duplex/Full Duplex, Auto-crossing capability
Store-and-forward switching mode supporting multiple protocols
High quality and reliability with MTBF: 300,000 hours
Redundant 12-52VDC power input with reverse-polarity protection
DIN rail mounting with IP40 metal housing
Lightning surge impact protection: 5000A (8/20μs)

Technical Specifications

Network Configuration

Port description	8 x RJ45 female 8 pin, 8-port 10/100/1000Base-T(X) MDI/MDI-X auto-crossover, auto-negotiation
Network protocol	IEEE802.3, IEEE802.3i 10Base-T; IEEE802.3u100Base-TX/FX; IEEE802.3ab1000Base-T; IEEE802.3at; IEEE802.3af, IEEE802.3z1000Base-X; IEEE802.3x

Environmental Specifications

Operating temperature	-40~75°C (-40~167°F)
Storage temperature	-40~75°C (-40~167°F)
Relative humidity	5% ~ 95% (no condensation)

Mechanical Specifications

Housing	Metal
Protection rating	IP40
Mounting	DIN-rail, wall
Cooling method	Natural cooling, fanless
Weight	0.64Kg
Dimensions	143.7 x 103 x 47.5mm (L x W x H)

Mechanical Dimension Drawing
