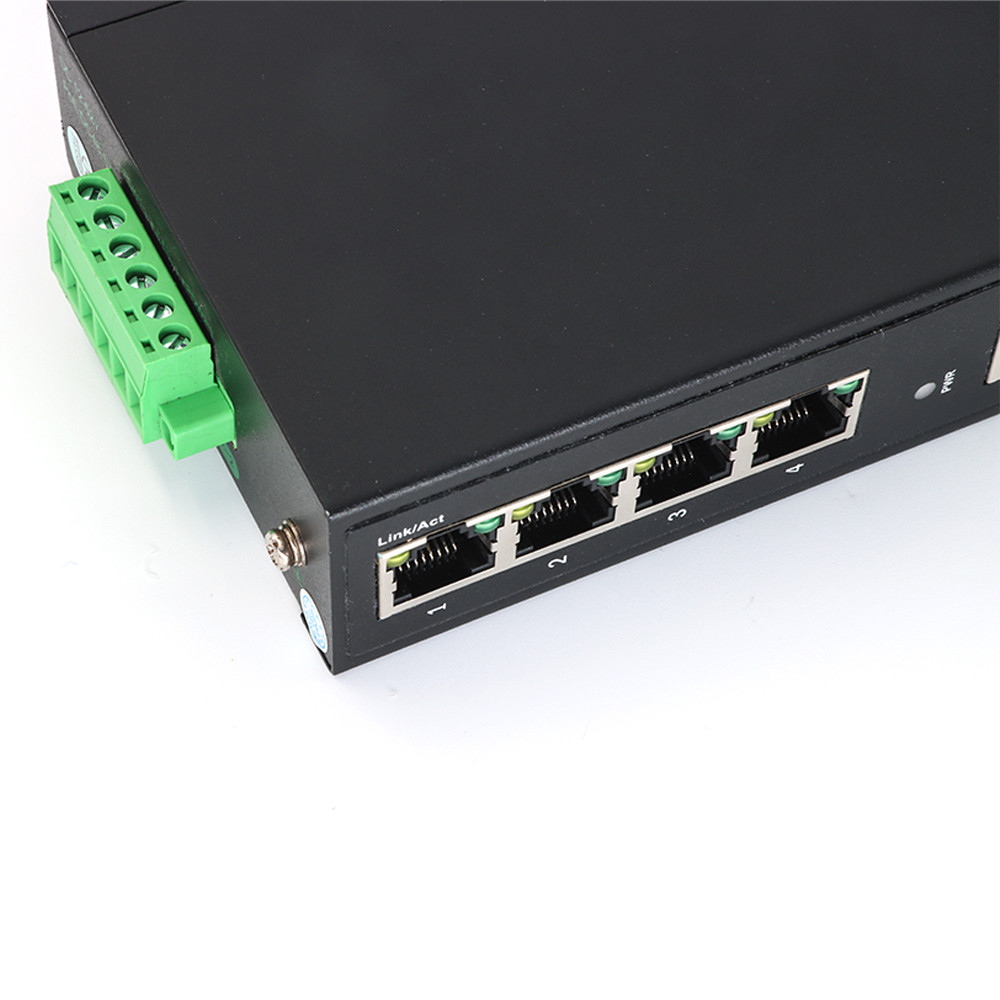

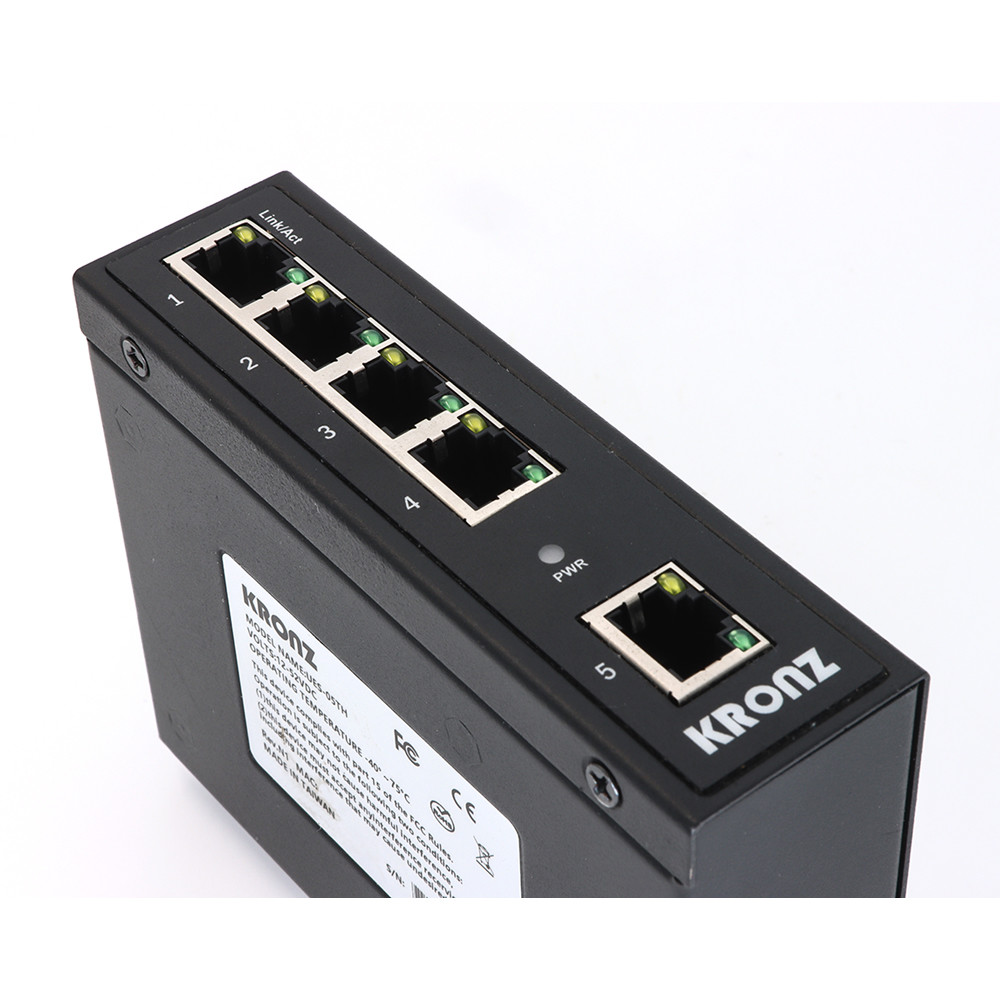

Unmanaged Industrial Ethernet Switches 5 Port POE 100Base-TX DIN Rail Mounting

Brand Name:	KRONZ
Model Number:	UES-05TH
MOQ:	10 pieces
Price:	Negotiable
Packaging Details:	Paper box packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Product Brochure PDF

Input Voltage:

DC12-52V/DC 48-52V(PoE)

Housing:

Metal

Protection Rating:

IP40

Mounting:

DIN-rail,wall

Cooling:

Natural-cooling, Fanless

Packet Buffer Memory:

1 Mbit

Power Consumption:

< 3W

Bandwidth:

1.6 G

Supply Ability:

100000 pieces per month

Highlight:

Unmanaged Industrial Ethernet Switches

5 Port Unmanaged Ethernet Switches

DIN Rail Mounting POE Ethernet Switches

Product Description

Unmanaged Industrial Ethernet Switches 5 Port POE 100Base-TX DIN Rail Mounting

Key Specifications

Attribute	Value
Input voltage	DC12-52V/DC 48-52V(PoE)
Housing	Metal
Protection rating	IP40
Mounting	DIN-rail, wall
Cooling	Natural-cooling, fanless
Packet buffer memory	1 Mbit
Power consumption	< 3W
Bandwidth	1.6 G

Industrial Ethernet Switches 5-Port POE 100Base-TX

UES series industrial Ethernet switches support 12~52VDC redundant power input with double protection mechanism: power polarity reverse protection and overload current fuse. These unmanaged switches operate in temperatures from -40°C to 75°C, with exceptional ruggedness for harsh environments, and feature space-saving DIN rail mounting.

Product Features

Reliable data transmission with long working life
Auto-Negotiation function for automatic transfer speed adjustment
Half Duplex/Full Duplex with Auto-crossing capability
Store-and-forward switching mode supporting multiple protocols
High reliability with MTBF: 300,000 hours
Redundant 12-52VDC power input with reverse-polarity protection
DIN rail mounting with IP40 metal housing
Lightning surge impact protection: 5000A (8/20μs)

Technical Specifications

Port description: 5 x RJ45 female 8 pin, 1-port 10/100/1000Base-T(X) uplink, 4-port 10/100Base-T(X) downlink

Network protocol: IEEE 802.3 10BaseT, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX/FX

Environmental Conditions

Operating temperature: -40~75°C (-40~167°F)

Storage temperature: -40~75°C (-40~167°F)

Relative humidity: 5% ~ 95% (no condensation)

Power Specifications

Input voltage: DC12-52V/DC 48-52V(PoE)

Connection terminal: Removable screw terminals block

Protection: Overload-current and reverse-polarity protection

Mechanical Characteristics

Housing: Metal

Protection rating: IP40

Mounting: DIN-rail, wall

Cooling method: Natural cooling, fanless

Weight: 0.36Kg

Size: 117.7 x 88.7 x 34mm (L x W x H)

Performance

Packet buffer memory: 1 Mbit

MAC address: 2K

Power consumption: < 3W

Bandwidth: 1.6G

Forwarding rate: 1.488Mpps

Latency: < 10μs

Forwarding mode: Store-and-forward

Mechanical Dimension Drawing
