Industrial DIN Rail Ethernet Switches 8 Port 10/100/1000Base-T DC12-52V Link Status

10 pieces
MOQ
Negotiable
Price
Industrial DIN Rail Ethernet Switches 8 Port 10/100/1000Base-T DC12-52V Link Status
Features Gallery Product Description Chat Now
Features
Specifications
Power Consumption: < 3W
Function: POE
Forwarding Mode: Store-and-forward
Switch Capacity: 1000Mbit/s
Condition: New
Housing: Metal
Cooling: Natural-cooling, Fanless
MAC Address Table: 1 K
Highlight:

DC12V DIN Rail Ethernet Switches

,

DC52V DIN Rail Ethernet Switches

,

DIN Rail 8 Port Ethernet Switches
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: KRONZ
Certification: CE
Model Number: U-08TC
Document: Product Brochure PDF
Payment & Shipping Terms
Packaging Details: Paper box packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Product Description
Industrial DIN Rail Ethernet Switches 8 Port 10/100/1000Base-T DC12-52V Link Status
Product Attributes
Attribute Value
Power consumption < 3W
Function POE
Forwarding mode Store-and-forward
Switch Capacity 1000Mbit/s
Condition New
Housing Metal
Cooling Natural-cooling, fanless
MAC address table 1 K
Product Description

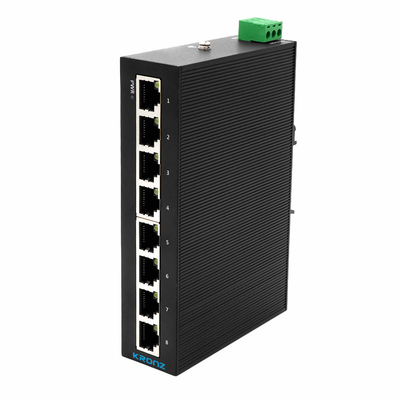

The U-08TC is an unmanaged industrial Ethernet switch featuring 8-port 10/100/1000BaseT(X) connectivity. Designed for harsh environments, it operates in temperatures from -30°C to 75°C and features DIN rail mounting, IP40 protection, and LED indicators for plug-and-play installation.

Key Features
  • Reliable data transmission with long working life
  • Auto-Negotiation function for automatic transfer speed adjustment
  • Half Duplex/Full Duplex with Auto-crossing capability
  • Store-and-forward switching mode supporting multiple protocols
  • High reliability with MTBF: 300,000 hours
  • DC 12-52V power input with reverse-polarity protection
  • Lightning surge impact protection: 5000A (8/20μs)
Technical Specifications
Product description 8-port unmanaged industrial ethernet switch
Port description 8 x RJ45 female 8 pin, 8-port 10/100/1000Base-T(X)
MDI/MDI-X auto-crossover, auto-negotiation
Network protocol IEEE802.3, IEEE802.3i 10Base-T; IEEE802.3u100Base-TX/FX
IEEE802.3ab1000Base-T; IEEE802.3x; IEEE802.3at
IEEE802.3z1000Base-X; IEEE802.3af
Environmental conditions Operating temperature: -30~75°C (-22~167°F)
Storage temperature: -40~75°C (-40~167°F)
Relative humidity: 5% ~ 95% (no condensation)
MTBF 300,000 hours
Power Input voltage: DC12-52V
Connection terminal: Removable screw terminals block
Overload-current: Present
Reverse-polarity protection: Present
Mechanical characteristics Housing: Metal
Protection rating: IP40

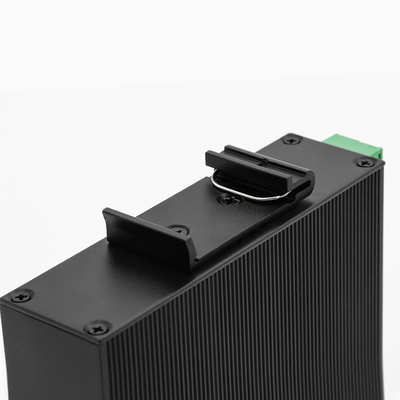

Mounting: DIN-rail, wall
Cooling method: Natural cooling, fanless
Weight: 0.36Kg
Size: 141x 89x 43mm (L x W x H)
Standards EMI: FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS: IEC(EN)61000-4-2 to IEC(EN)61000-4-8
Shock: IEC 60068-2-27
Freefall: IEC 60068-2-32
Vibration: IEC 60068-2-6
Performance Packet buffer memory: 512 kbit
MAC address: 1K
Power consumption: < 3W
Forwarding mode: Store-and-forward
LEDs: Power indicator (PWR), Interface link status
Mechanical Dimension Drawing
Industrial DIN Rail Ethernet Switches 8 Port 10/100/1000Base-T DC12-52V Link Status 0
