M8 Connector Field-wireable 3 Pin A Code Waterproof IP67 Industrial Circular Connector

All Category

Photoelectric Sensors

Miss. Doris

sales02@kronz.cn

+8618924160375

Contact Now

All Category

M8 Connector Field-wireable 3 Pin A Code Waterproof IP67 Industrial Circular Connector

Brand Name:	KRONZ
Model Number:	H0803FA-0
MOQ:	50 pieces
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

Document:

Product Brochure PDF

Type:

Product Name:

M8 Field Wirable Assembly Connector

Standard:

IEC 61076-2-104

Contact Nut Material:

Brass, Nickle-plated

Contact Carrier Material:

PA, Black

Seal Material:

FPM/FKM

Ambient Temperature:

-25~+85℃

Endurance(shell):

>100 Cycles

Supply Ability:

100000 pieces per month

Highlight:

wireable m8 connector

wireable m8 male connector

waterproof m8 connector

Product Description

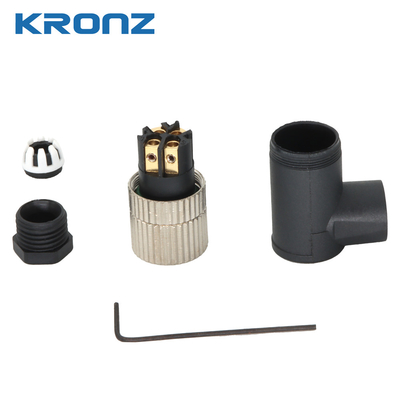

M8 Connector Field-wireable 3 Pin A Code Waterproof IP67 Industrial Circular Connector

M8 Female Connector - 3 Pins (A Code) - Versatile Connection Solution

The M8 3-pin female connector with A-code is designed to pair seamlessly with M8 male connectors. It's commonly used in applications where the connector needs to fit into a female interface. The 3-pin design offers a simplified connection for sensor systems and control units. As a reliable connection point for low power and signal lines, this connector is commonly used in automation systems that require minimal wiring and a compact footprint.

Key Attributes

Attribute	Value
Type	M8
Product name	M8 Field Wirable Assembly Connector
Standard	IEC 61076-2-104
Contact nut material	Brass, nickle-plated
Contact carrier material	PA, black
Seal material	FPM/FKM
Ambient temperature	-25~+85℃
Endurance(shell)	>100 cycles

Applications

Connecting sensors to control devices
Industrial and factory automation
Temperature and humidity sensing systems
Process control applications

Technical Specifications

Standard	IEC 61076-2-104
Contact nut material	Brass, nickle-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	TPU, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP67

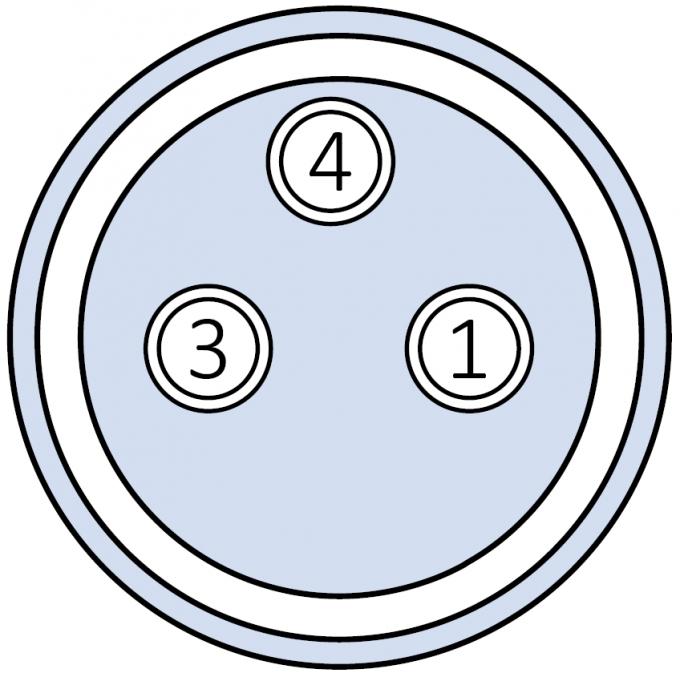

Pin Configuration

Pin assignment	Connection method	Coding	Rated current	Voltage	Cable outlet	External cable diameter	Model No.
	Screw connection	A	3A	60V	Angled	3.5-5mm	H0803FA-0

Support and Services

Assistance with product installation and setup
Troubleshooting and problem resolution
Product updates and firmware upgrades
Warranty and repair services
Technical documentation and resources such as user manuals and datasheets
Training and education on product features and capabilities
