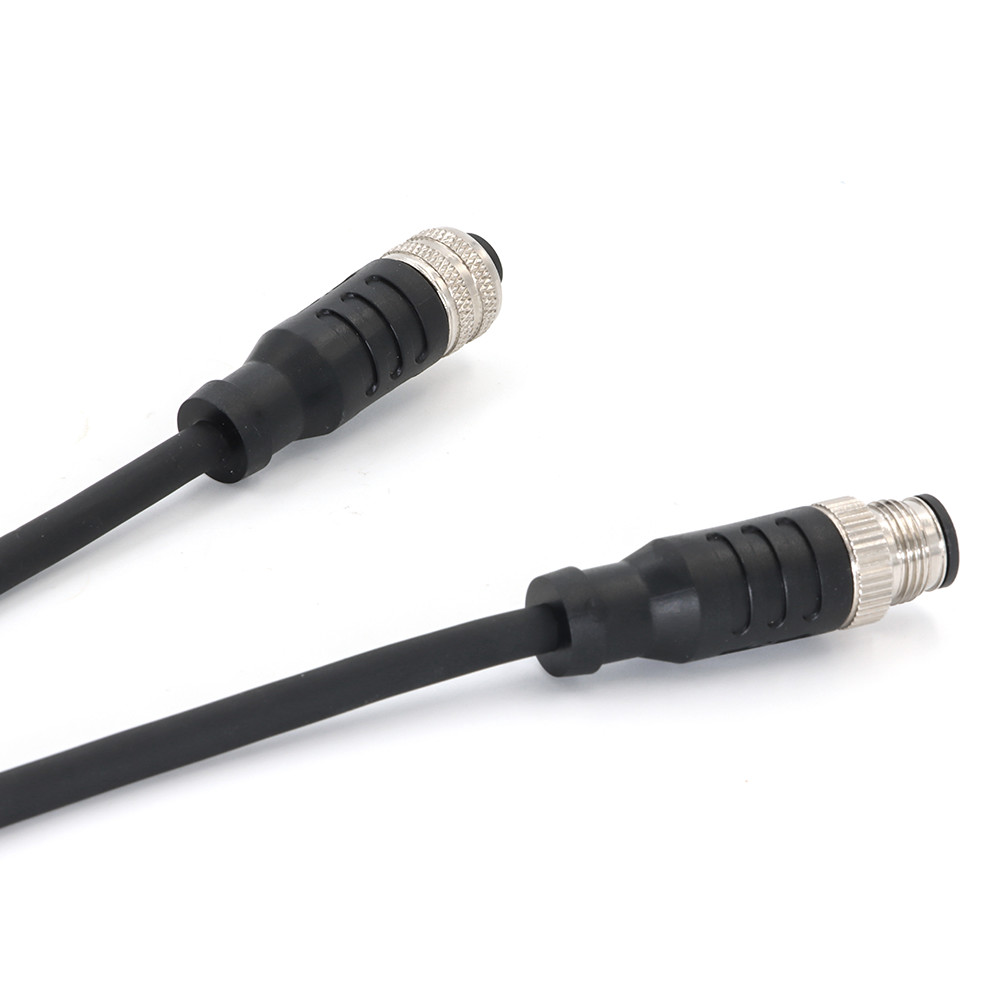

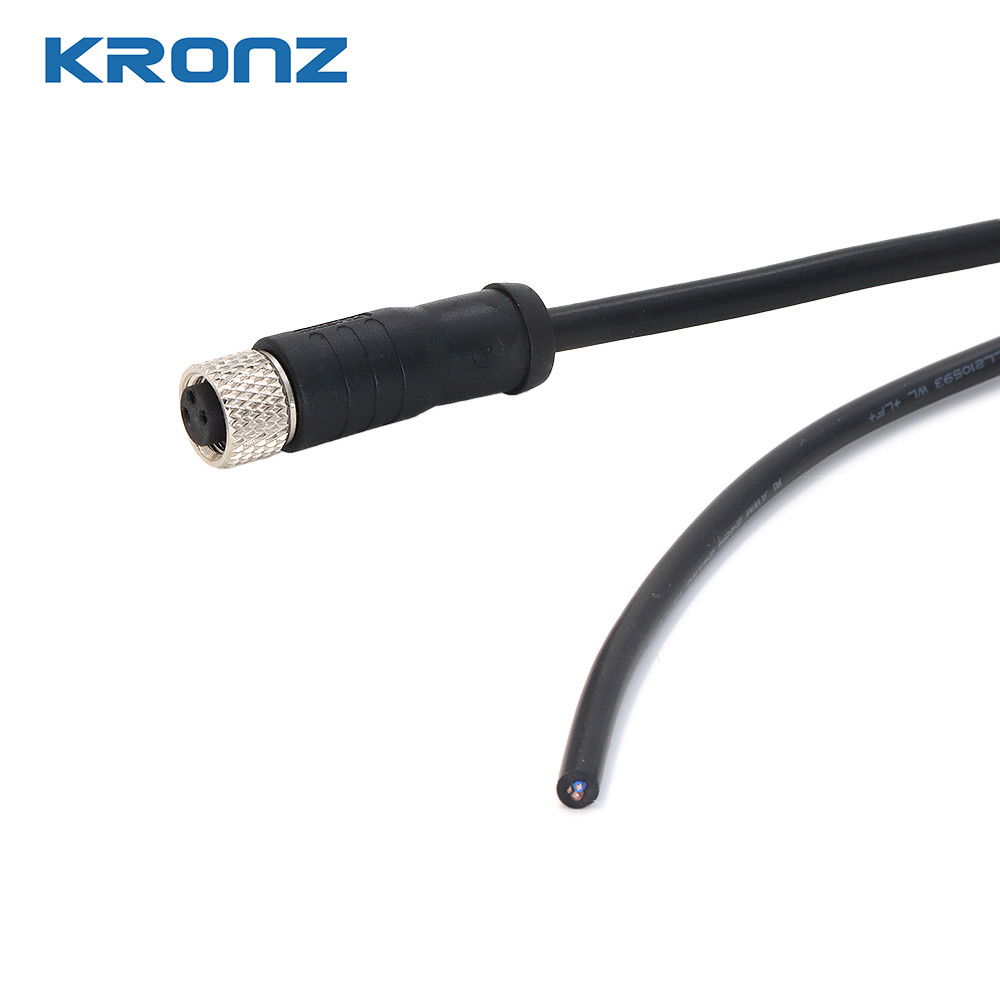

Female M8 Connector 3 Pin With Shielded Cable
  • Name
  • Name

Female M8 Connector 3 Pin With Shielded Cable

Brand Name: KRONZ
Model Number: M0803F-2/SOOR
MOQ: 50 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Type:
Contact
Product Name:
M8 Pre-Assembled Cable Connector
Seal Material:
FPM/FKM
Insulation Resistance:
≥ 100MΩ
Contact Resistance:
≤ 5mΩ
Pollution Degree:
3
Ambient Temperature:
-25~+85℃
Degree Of Protection:
IP67
Supply Ability:
100000 pieces per month
Highlight:

Female M8 Connector 3 Pin

,

Shielded Cable M8 Connector

,

M8 Female Connector 3 Pin

Product Description
Female M8 Connector 3 Pin With Shielded Cable
Attribute Value
Type Contact
Product name M8 Pre-Assembled Cable Connector
Seal material FPM/FKM
Insulation Resistance ≥ 100MΩ
Contact resistance ≤ 5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Degree of protection IP67
M8 Connector with Shielded Cable Straight Female 3 Pin A Code PVC IEC 61076-2-104

M8 connectors are designed to withstand harsh environmental conditions, including exposure to dust, moisture, and mechanical stress. Their robust construction ensures long-term reliability.

Female M8 Connector 3 Pin With Shielded Cable 0
Technical Specifications
Standard IEC 61076-2-104
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67
Pin Configuration & Cable Specifications
Female M8 Connector 3 Pin With Shielded Cable 1
Pin assignment Wire color Coding Rated current Voltage Wire gauge Cable outlet Length Model No.
1=BN
3=BU
4=BK		 1=Brown
3=Blue
4=Black		 A 3A 60V 3x0.25 (3x24AWG)
PVC, shielded, black		 Straight 2M M0803M-2/SOOR
5M M0803M-5/SOOR
10M M0803M-10/SOOR
