PVC Cable Pre Assembled M8 3 Pin Female Connector IEC 61076-2-104 Straight
  • Name
  • Name

PVC Cable Pre Assembled M8 3 Pin Female Connector IEC 61076-2-104 Straight

Brand Name: KRONZ
Model Number: M0803F-2/POOR
MOQ: 50 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union,
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Type:
Contact
Product Name:
M8 Pre-Assembled Cable Connector
Contact Carrier Material:
PA, Black
Housing Material:
TPU, Black
Seal Material:
FPM/FKM
Contact Resistance:
≤ 5mΩ
Pollution Degree:
3
Endurance(shell):
>100 Cycles
Supply Ability:
100000 pieces per month
Highlight:

M8 3 Pin Female Connector

,

Pre Assembled M8 Female Connector

,

PVC Cable M8 3 Pin Connector

Product Description
PVC Cable Pre Assembled M8 3 Pin Female Connector IEC 61076-2-104 Straight
Product Specifications
Attribute Value
Type Contact
Product name M8 Pre-Assembled Cable Connector
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Contact resistance ≤ 5mΩ
Pollution degree 3
Endurance(shell) >100 cycles
Product Description

M8 Pre-assembled Connector PVC Cable IEC 61076-2-104 Straight Female 3 Pin A Code

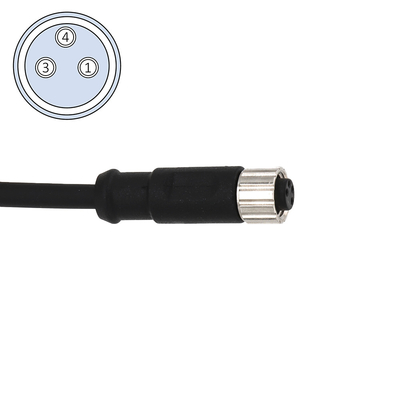

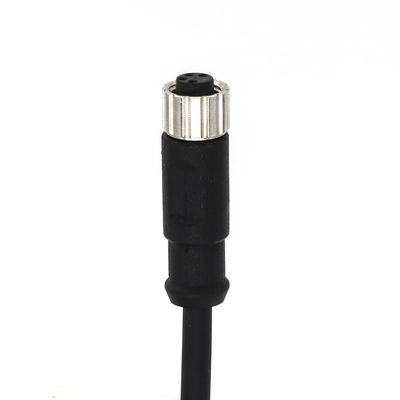

M8 3 Pin Female Connector close-up view M8 Connector side profile with cable
Technical Data
Specification Details
Standard IEC 61076-2-104
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67
Pin Assignment & Specifications
M8 3 Pin connector pin assignment diagram
Pin assignment Wire color Coding Rated current Voltage Wire gauge Cable outlet Length Model No.
1=BN, 3=BU, 4=BK A 3A 60V 3x0.25 (3x24AWG) PVC, black Straight 2M M0803M-2/POOR
            5M M0803M-5/POOR
            10M M0803M-10/POOR
Applications

M8 pre-molded cable connectors are widely used in industrial applications, including:

  • Renewable energy systems (solar panels, wind turbines)
  • Industrial robot control systems
  • Sensor and control unit connections
  • Harsh outdoor environments

These connectors withstand high vibrations, temperature variations, and extreme conditions, ensuring reliable operation in demanding industrial settings.
