PVC Cable M8 Connector Pre Assembled Straight Female 4 Pin A Code IP67

Brand Name:	KRONZ
Model Number:	M0804F-2/P00R
MOQ:	50 pieces
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE

Document:

Product Brochure PDF

Product Name:

M8 Pre-Assembled Cable Connector

Standard:

IEC 61076-2-104

Contact Surface Material:

Brass, Gold-plated

Contact Carrier Material:

PA, Black

Housing Material:

TPU, Black

Contact Resistance:

≤ 5mΩ

Ambient Temperature:

-25~+85℃

Degree Of Protection:

IP67

Supply Ability:

100000 pieces per month

Highlight:

PVC Cable M8 Connector

,

Pre Assembled PVC Cable M8 Connector

,

M8 4 Pin Female Connector IP67

Product Description

PVC Cable M8 Connector Pre Assembled Straight Female 4 Pin A Code IP67

Product Specifications

Attribute	Value
Product name	M8 Pre-Assembled Cable Connector
Standard	IEC 61076-2-104
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	TPU, black
Contact resistance	≤ 5mΩ
Ambient temperature	-25~+85℃
Degree of protection	IP67

Product Description

M8 Connector Pre-assembled PVC Cable Straight Female 4 Pin A Code IP67

Compact Size: The small form factor of M8 connectors makes them ideal for applications with limited space, such as compact machinery and densely packed control panels.

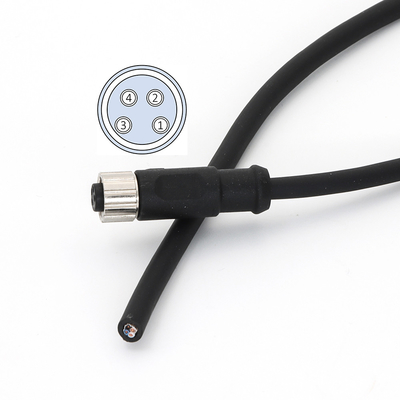

PVC Cable M8 Connector Pre Assembled Straight Female 4 Pin A Code IP67 0

Technical Data

Specification	Value
Standard	IEC 61076-2-104
Contact nut material	Brass, nickle-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	TPU, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP67

Pin Assignment & Configuration

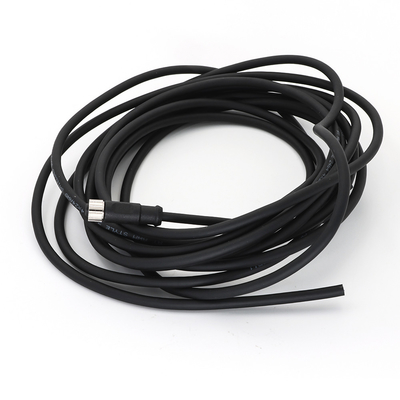

PVC Cable M8 Connector Pre Assembled Straight Female 4 Pin A Code IP67 1

Pin assignment	Wire color	Coding	Rated current	Voltage	Wire gauge	Cable outlet	Length	Model No.
1=BN 2=WH 3=BU 4=BK	1=BN 2=WH 3=BU 4=BK	A	3A	60V	4x0.25 (4x24AWG) PVC, black	Straight	2M	M0804F-2/P00R
							5M	M0804F-5/P00R
							10M	M0804F-10/P00R
