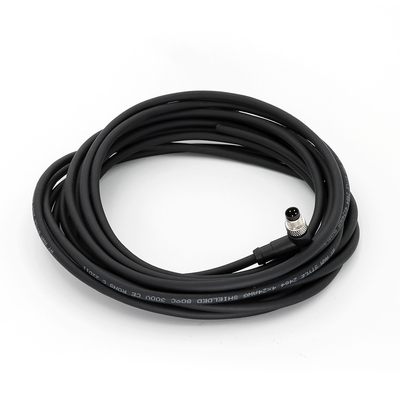

Angled M8 3 Pin Male Connector Pre Assembled Customized Cable A Code PVC
  • Name
  • Name

Angled M8 3 Pin Male Connector Pre Assembled Customized Cable A Code PVC

Brand Name: KRONZ
Model Number: M0803MA-2/POOR
MOQ: 50 pieces
Price: Negotiable
Packaging Details: Polybag packing
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Certification:
CE
Document:
Product Brochure PDF
Standard:
IEC 61076-2-104
Contact Nut Material:
Brass, Nickle-plated
Contact Carrier Material:
PA, Black
Seal Material:
FPM/FKM
Contact Resistance:
≤ 5mΩ
Pollution Degree:
3
Ambient Temperature:
-25~+85℃
Degree Of Protection:
IP67
Supply Ability:
100000 pieces per month
Highlight:

Angled M8 3 Pin Male Connector

,

PVC M8 3 Pin Male Connector

,

Customized M8 3 Pin Male Connector

Product Description
Angled M8 3 Pin Male Connector Pre Assembled Customized Cable A Code PVC
Product Attributes
Attribute Value
Standard IEC 61076-2-104
Contact nut material Brass, nickle-plated
Contact carrier material PA, black
Seal material FPM/FKM
Contact resistance ≤ 5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Degree of protection IP67
Product Description

M8 Angled Connector Pre-assembled Customized Cable Male 3 Pin A Code PVC



M8 connectors are available in straight and right-angle versions to accommodate different installation requirements and space constraints.

Angled M8 3 Pin Male Connector Pre Assembled Customized Cable A Code PVC 0
Technical Specifications
Specification Value
Standard IEC 61076-2-104
Contact nut material Brass, nickle-plated
Contact surface material Brass, gold-plated
Contact carrier material PA, black
Housing material TPU, black
Seal material FPM/FKM
Insulation resistance ≥100MΩ
Contact resistance ≤5mΩ
Pollution degree 3
Ambient temperature -25~+85℃
Mating cycles >100
Degree of protection IP67

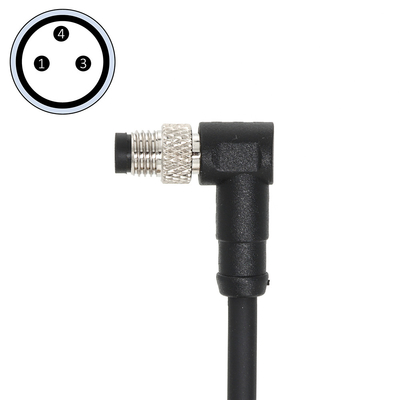

Pin Assignment & Configuration
Pin Assignment Wire Color Coding Rated Current Voltage Wire Gauge Cable Outlet Length Model No.
Angled M8 3 Pin Male Connector Pre Assembled Customized Cable A Code PVC 1 1=BN
3=BU
4=BK		 A 3A 60V 3x0.25 (3x24AWG)
PVC, black		 Angled 2M M0803MA-2/POOR
              5M M0803MA-5/POOR
              10M M0803MA-10/POOR
