Male M8 Connector 4 Pin IEC 61076-2-104 Pre Assembled Cable Angled A Code

Male M8 Connector 4 Pin IEC 61076-2-104 Pre Assembled Cable Angled A Code

Brand Name:	KRONZ
Model Number:	M0804MA-2/POOR
MOQ:	50 pieces
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE

Document:

Product Brochure PDF

Type:

Angled

Product Name:

M8 Pre-Assembled Cable Connector

Contact Nut Material:

Brass, Nickle-plated

Gender:

Male

Contact Resistance:

≤ 5mΩ

Pin:

4

Ambient Temperature:

-25~+85℃

Degree Of Protection:

IP67

Supply Ability:

100000 pieces per month

Highlight:

Angled M8 Connector 4 Pin

,

Angled M8 Male Connector

,

A Code M8 Connector 4 Pin

Product Description

Male M8 Connector 4 Pin IEC 61076-2-104 Pre Assembled Cable Angled A Code

Product Overview

Field-attachable M8 connectors allow for on-site assembly and customization of cable lengths, providing flexibility for various applications.

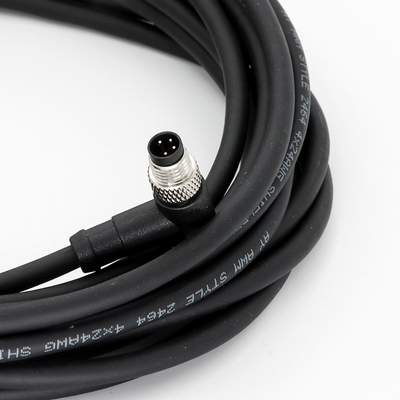

Male M8 Connector 4 Pin IEC 61076-2-104 Pre Assembled Cable Angled A Code 0

Key Specifications

Attribute	Value
Type	Angled
Product name	M8 Pre-Assembled Cable Connector
Contact nut material	Brass, nickle-plated
Gender	Male
Contact resistance	≤ 5mΩ
Pin	4
Ambient temperature	-25~+85℃
Degree of protection	IP67

Technical Data

Specification	Value
Standard	IEC 61076-2-104
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	TPU, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Pollution degree	3
Mating cycles	>100

Pin Assignment & Configuration

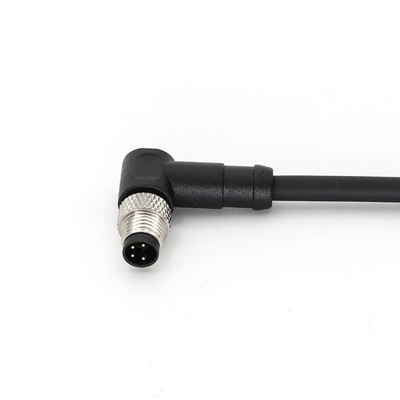

Male M8 Connector 4 Pin IEC 61076-2-104 Pre Assembled Cable Angled A Code 1

Pin	Wire Color	Coding	Rated Current	Voltage	Wire Gauge	Cable Outlet	Length	Model No.
1=BN 2=WH 3=BU 4=BK	1=Brown 2=White 3=Blue 4=Black	A	3A	60V	4x0.25 (4x24AWG) PVC, black	Angled	2M	M0804MA-2/POOR
							5M	M0804MA-5/POOR
							10M	M0804MA-10/POOR
