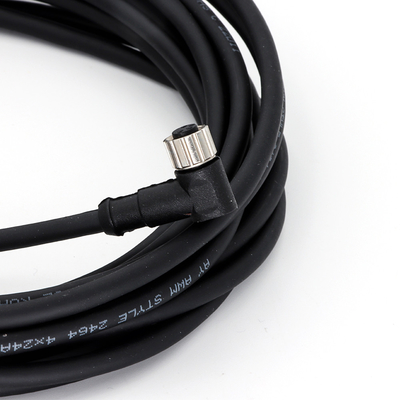

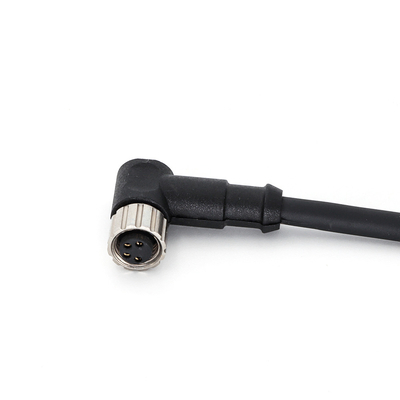

M8 Molded Cable Circular Connector Angled Female 3 Pin A Code Waterproof IP67

Brand Name:	KRONZ
Model Number:	M0803FA-2/POOR
MOQ:	50 pieces
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE

Document:

Product Brochure PDF

Type:

Contact

Product Name:

M8 Pre-Assembled Cable Connector

Standard:

IEC 61076-2-104

Housing Material:

TPU, Black

Seal Material:

FPM/FKM

Insulation Resistance:

≥ 100MΩ

Pollution Degree:

3

Endurance(shell):

>100 Cycles

Supply Ability:

100000 pieces per month

Highlight:

M8 Molded Cable Connector

,

Angled M8 Molded Cable Connector

,

IP67 M8 Female Connector

Product Description

M8 Molded Cable Circular Connector Angled Female 3 Pin A Code Waterproof IP67

Product Overview

M8 connectors are available as molded cable assemblies, providing pre-configured solutions with various cable lengths and specifications.

M8 Molded Cable Circular Connector Angled Female 3 Pin A Code Waterproof IP67 0

Technical Specifications

Attribute	Value
Standard	IEC 61076-2-104
Contact nut material	Brass, nickel-plated
Contact surface material	Brass, gold-plated
Contact carrier material	PA, black
Housing material	TPU, black
Seal material	FPM/FKM
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Pollution degree	3
Ambient temperature	-25~+85℃
Mating cycles	>100
Degree of protection	IP67

Pin Configuration

M8 Molded Cable Circular Connector Angled Female 3 Pin A Code Waterproof IP67 1

Pin assignment	Wire color	Coding	Rated current	Voltage	Wire gauge	Cable outlet	Length	Model No.
1=BN 3=BU 4=BK	A	3A	60V	3x0.25 (3x24AWG) PVC, black	Angled	2M	M0803FA-2/POOR
						5M	M0803FA-5/POOR
						10M	M0803FA-10/POOR

* Cable length: 2/5/10m, other cable lengths are available on request! Freely selectable cable material (P00R: black PVC, P01R: black PUR)
