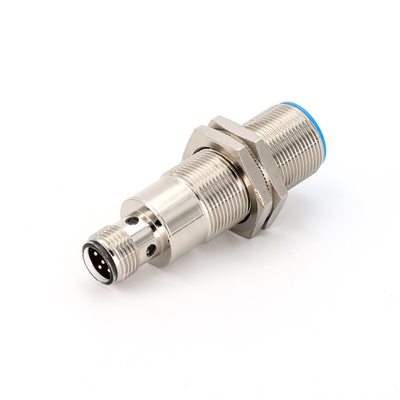

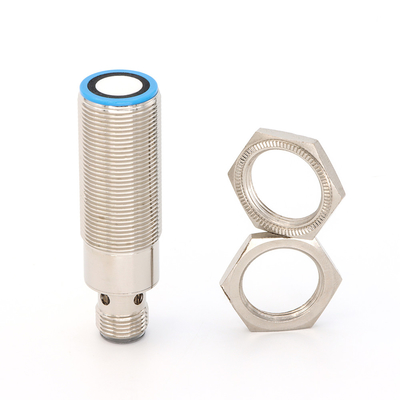

U18 Ultrasonic Sensor Switching Output NO/NC 50-500mm 31Hz 5Pin Connector

U18 Ultrasonic Sensor Switching Output NO/NC 50-500mm 31Hz 5Pin Connector

Brand Name:	KRONZ
Model Number:	U18-D500N(P)1T-R00A
MOQ:	5 pieces
Price:	Negotiable
Packaging Details:	Polybag packing
Payment Terms:	T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

CE

Document:

Product Brochure PDF

Features:

Easy To Instal

Product Name:

U18 Ultrasonic Sensors

Connection Type:

5pin, M12 Connector

Blind Zone:

0-50mm

Enclosure Rating:

IP67

Input Type:

Teach-in And Synchronization

Response Time:

32ms

Supply Voltage:

10-30V DC

Supply Ability:

100000 pieces per month

Highlight:

U18 Ultrasonic Sensor

,

U18 Ultrasonic Sensor 31Hz

,

5Pin Connector Ultrasonic Sensor

Product Description

U18 Ultrasonic Sensor Switching Output NO/NC 50-500mm 31Hz 5Pin Connector

Key Features

M18 installation threaded sleeve for easy mounting
5-pin M12 connector for secure connection
IP67 enclosure rating for durability in harsh environments
Teach-in and synchronization input type
Fast response time of 32ms
Wide operating voltage range (10-30V DC)

Technical Specifications

Attribute	Value
Model	U18-D500N(P)1T-R00A
Detection Range	50-500mm
Blind Zone	0-50mm
Resolution	0.15mm
Repeatability	±0.15%F.S.
Accuracy	±1% (with temperature compensation)
Response Time	32ms
Switching Frequency	31Hz
Supply Voltage	10-30V DC with reverse-polarity protection
Enclosure Rating	IP67
Connection Type	5-pin M12 connector
Operating Temperature	-25℃ to +70℃
Weight	35g

Additional Features

NPN or PNP switching output options
Supports RS485 Modbus-RTU communication protocol
Analog voltage (0-10V) or current (4-20mA) output options
Detection distance learning function via gray lines
Built-in temperature compensation
LED status indicators for object detection and teach-in mode
Overcurrent protection (200mA)

Dimensional Drawing

U18 Ultrasonic Sensor Switching Output NO/NC 50-500mm 31Hz 5Pin Connector 0
